Reef Octopus BR 1000SS Manual

Reef Octopus Space Saving Bio pellets Reactor： ： BR 1000SS
Instruction：

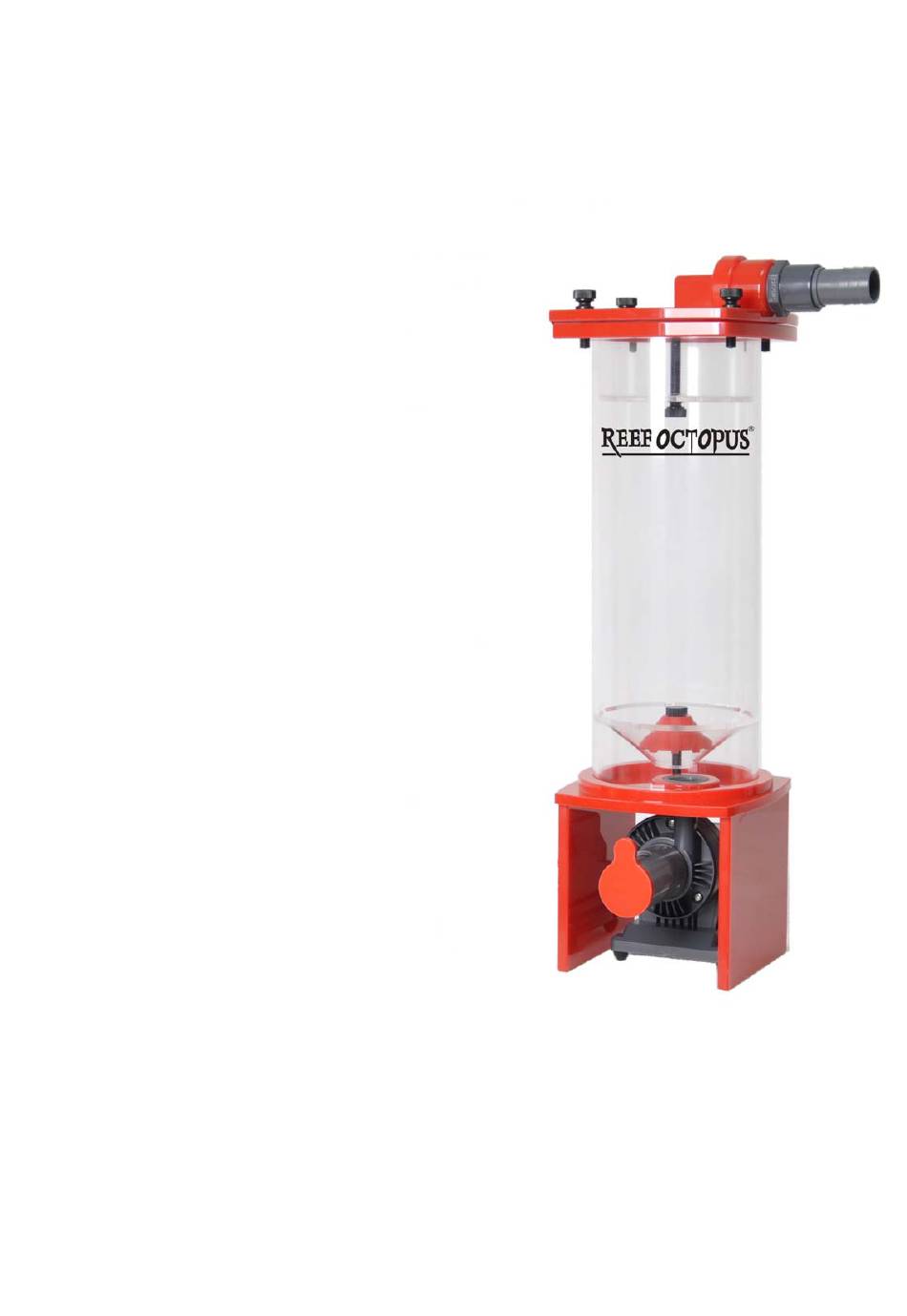

Reef Octopus Space Saving Bio-pellets Reactor uses the design that Subvert the traditional, making it works on
a crazy effect. It just uses a pump that has only 1000L per hour water flow driving as much as 1500ml
Bio-pellets. It is entirely due to its bottom direct injection water flow style.
To prevent pellets get into the pump, our engineer
invented a Umbrella-shaped device, it only has 1.5mm gap,
matched with the bowl-shaped bottom, make bio-pellets
been totally stirred but can't get into the reactor's bottom.
The cover of it is an easy removable design, could turn the
outlet at four directions. There also have a Sieve plate
screwed on the cover to prevent pellets flowed out of the
chamber.
Installation：
1. There should have 4 little packages in the box, the main
chamber, the outlet part , the pump and water inlet valve.
2. Fix the outlet onto the cover.
3. Open the pump box, install the pump directly into the
bottom. As the picture shows
4. Added enough medias to the chamber.
5. Connect the pump to power.
How To Adding Medias.
1.Make sure the Umbrella-shaped devices is
on the bottom before you added media, it will
Installed
prevent the medias get into the pump.
2. Loose the screws that fixed the cover, remove the
cover, added medias in.
3. Be sure the O-ring is in the O-ring groove on the top
of the chamber. Put the cover on and tighten the screws
Safety：
1. Please use the pump under marked voltage;
2. Don't added medias which diam is less than 2mm
3. Never take maintains of the devices when it is running.
4. Keep enough water level, prevent the pump working without water.
