Radio Management
Radio performance unit
Radio performance unit
Art. No. : FWL2200WW
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. In so doing, take all the circuit breakers into account, which support dangerous
voltages to the device and or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The radio communication takes place via a non-exclusively available transmission path,
and is therefore not suitable for safety-related applications, such as emergency stop and
emergency call.
These instructions are an integral part of the product, and must remain with the end
customer.

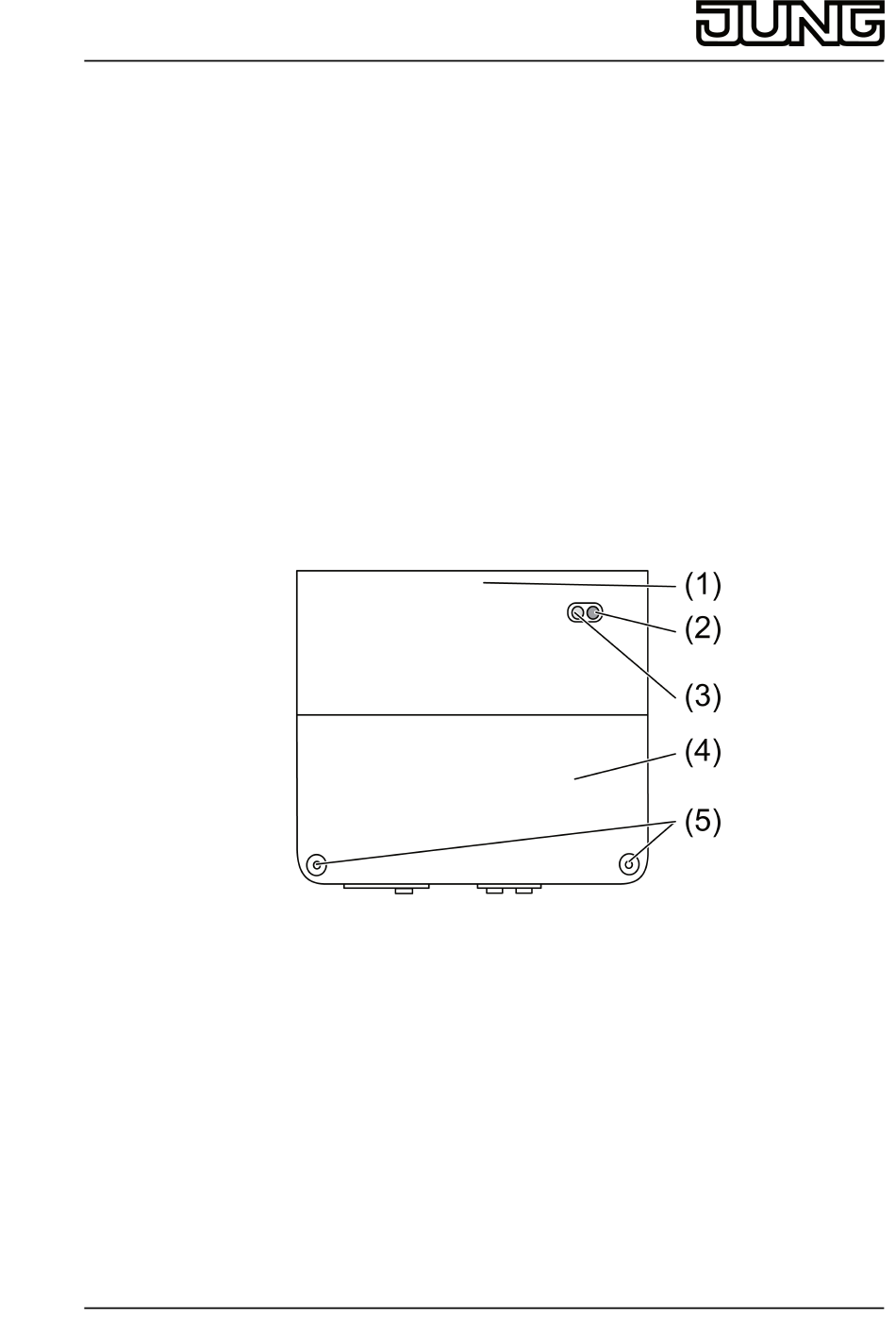

2 Device components
(1) Radio power pack
(2) red LED
(3) green LED
(4) Housing lid
(5) Screws
3 Function
System information
By statute, the transmitting power, the reception characteristics and the antenna cannot be
changed.
The range of a radio system from the transmitter to the receiver depends on various
circumstances.
32529813
J0082529813
Figure 1
1/9
02.11.2016
Advertisement
Table of Contents
Related Manuals for Jung FLW2200WW
Summary of Contents for Jung FLW2200WW
-
Page 1: Safety Instructions
Radio Management Radio performance unit Radio performance unit Art. No. : FWL2200WW Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Danger of electric shock. Always disconnect before carrying out work on the devise or load. -
Page 2: Operation
Radio Management Radio performance unit The range of the system can be optimised by selecting the optimal installation location, taking into account the structural circumstances. Figure 2: Reduced range due to structural obstacles Intended use Radio-controlled switching of electrical loads for the duration of a settable time. Operation with suitable radio motion detectors, radio transmitters and installation buttons as an extension Surface-mounted... - Page 3 Radio Management Radio performance unit Transmitter deleted Switch-on for set switch-on time Operation with installation button: press push-button one time briefly. Operation with radio transmitter: Press taught channel button /\ less than 1 second. The load is switched on for the preset switch-on time independently of the brightness. Motion telegrams of a taught radio motion detector or radio presence detector are detected and evaluated.
- Page 4 Radio Management Radio performance unit Figure 3: Installing the power pack Slacken the two screws (5) and remove housing lid (4) (figure 1). If necessary break out cable entry (8) for flush-mounted cable routing (figure 3). Fasten power pack with two screws (6). Route cables into the housing and connect to the terminals (7) (see Connecting the power pack).
- Page 5 Radio Management Radio performance unit Figure 5: Switching off the power pack The power pack can be switched off using switch S1 or S2 (figure 5). When the power pack is switched on again, switch S1 triggers a switching operation, while S2 does not.
- Page 6 Radio Management Radio performance unit Figure 7: Automatic manual mode with two-circuit switch S1 and S2 open: all off. S1 closed, S2 open: normal automatic mode. S1 and S2 closed: continuous light, manual mode, power pack without function (figure 7). Figure 8: Connection in parallel with automatic staircase light switch / impulse relay The lighting is switched on either by the automatic staircase light switch (9) or by the power pack in combination with radio motion detectors (figure 8).
- Page 7 Radio Management Radio performance unit 5.2 Commissioning Setting the brightness and switch-on time Figure 9: Adjuster (10) Brightness adjuster (11) Switch-on time adjuster (12) Rotary switch programming mode PROG Slacken the two screws (5) and remove housing lid (4) (figure 1). Turn brightness adjuster (10) to the desired value (figure 9).
-
Page 8: Troubleshooting
Radio Management Radio performance unit i When a radio transmitter is taught, All On and All Off buttons that are present are automatically also taught. Deleting radio transmitters Teach-in again the radio transmitter to be deleted. 6 Appendix 6.1 Technical data Rated voltage AC 230 V ~ Mains frequency... -
Page 9: Warranty
Radio Management Radio performance unit 6.3 Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type Art. No. FWL2200WW corresponds to the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
