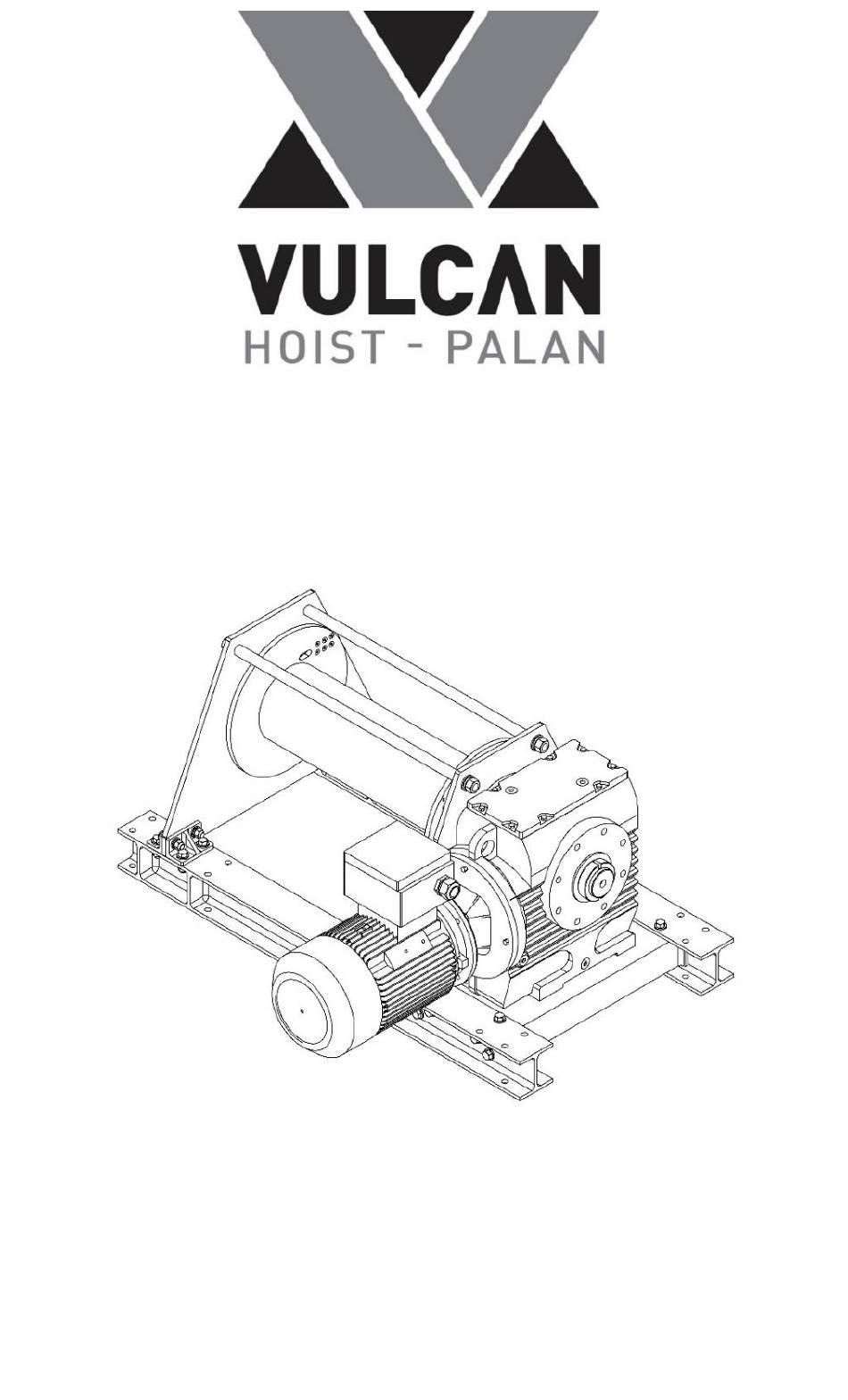

- Page 1 OPERATOR`S MANUAL ELECTRIC WINCH WARNING DO NOT INSTALL, USE OR REPAIR THIS EQUIPMENT BEFORE READING THIS MANUAL IN ITS ENTIERETY. FAILURE TO READ AND FOLLOW THE INSTRUCTIONS DESCRIBED IN THIS MANUAL COULD RESULT IN SERIOUS INJURY, DEATH AND/OR MATERIAL DAMAGES.
- Page 2 WARNING The equipment described in this manual is not designed to lift or move people nor to lift or move loads over people and must therefore not be used for such means. WARNING Before putting the equipment described in this manual into service, it is strongly recommended to familiarize oneself with the sections on using, inspecting and maintaining lifting equipment in the standards CSA B167 Overhead cranes, gantry cranes, monorails, hoists and jib cranes and ASME B30.7...
-
Page 3: Table Of Contents
Contents Technical Specifications ................4 General Dimensions ................4 Working Loads..................5 Unpacking ....................6 Installation ....................7 Footprint ....................7 Gear Reducer Orientation and Lubrication ........... 8 Winding of the Wire Rope ..............9 Electrical Connections ................10 Using the Equipment................13 Inspection .................... -
Page 4: Technical Specifications
Technical Specifications General Dimensions General Dimensions Model W047 29.88 27.00 5.75 3.38 13.18 9.69 6.18 W057 38.38 28.50 6.63 3.75 17.18 10.63 5.63 W067 39.38 29.88 7.38 3.75 17.18 12.25 7.75 W077 41.38 35.50 9.38 4.75 17.18 14.88 9.38 W087 42.88... -
Page 5: Working Loads
Working Loads Limits for Hauling/Pulling 550 lb 500 lb 475 lb 450 lb W047 22 fpm 23.5 fpm 25.5 fpm 27 fpm 900 lb 850 lb 750 lb 700 lb W057 3/16 25 fpm 27.5 fpm 29.5 fpm 32 fpm... -
Page 6: Unpacking
ATTENTION The wire rope capacity depends on the rolling tension and the distribution of the wire rope over the drum. The actual capacity may be 25-30% below the specified length due to uneven winding of the wire rope or crisscrossing of the wire rope Unpacking Some models are equipped with lifting lugs to facilitate manipulation of the equipment during the installation. -
Page 7: Installation
Installation Footprint Winch Footprint Model Anchor Bolts W047 29.88 19.13 21.83 W057 38.38 20.13 30.40 W067 39.38 21.38 30.73 W077 41.38 26.13 4.23 W087 42.88 28.13 4.97 W097 44.88 32.63 5.76 WARNING Always use the recommended number of anchor bolts (dia. ½, grade 5 or higher) to fix the winch to the floor or the supporting structure. -
Page 8: Gear Reducer Orientation And Lubrication
Gear Reducer Orientation and Lubrication It is important to always maintain an adequate level of gear oil for the size and orientation of the reducer. Unless otherwise specified, the reducer is filled for horizontal use. Consult the maintenance section for recommended gear oil types and amounts. -
Page 9: Winding Of The Wire Rope
Winding of the Wire Rope WARNING The wire rope must always be installed on the drum in a way that allows it to come out from underneath the drum as indicated on the diagram below: Operator`s Manual – Electric Winch 2018-08-03, rev 1... -
Page 10: Electrical Connections
Electrical Connections WARNING If the motor rotation is reversed some options (like the limit switches) will not function properly which may lead to injury or equipment damage. All electric connections must be performed by a qualified electrician. Do not neglect to verify the current draw and the length of the power cable. Improper connections or conductor sizing may cause the winch to overheat even with no load. - Page 11 WARNING Never change the wiring in the control pendant to reverse the motions, options like limit switches will not function properly. Operator`s Manual – Electric Winch 2018-08-03, rev 1...
- Page 12 ATTENTION Never connect 115V single phase motors in a standard household socket. Even tough some models may work; household circuits are not sized for such applications and the winch may interfere with other devices on the circuit. Always consult a qualified electrician when connecting industrial equipment to the electrical grid.
-
Page 13: Using The Equipment
Using the Equipment Before using any industrial equipment, the operator must be instructed on how to use the equipment, how to stop the equipment in the event of an emergency and how to identify, avoid and prevent risk situations. Before starting the machine, the operator must ensure the maneuver can be performed safely (ex.: the equipment is in order, the lift path is clear, the load will not go over other workers, etc.). - Page 14 ATTENTION Never exceed a fleet angle of ±2° as indicated in the image below: Dangerous Practices to be Avoided DO NOT use a damaged, broken or otherwise malfunctioning winch DO NOT use a winch before having read and understood the operator`s manual DO NOT use a winch that has been modified without the written approval of the manufacture or a qualified engineer...
- Page 15 Recommended Practices Inspect the winch at the beginning of each work shift. See Daily Inspection for details Protect the wire rope from weldment splashes and other contaminants Be familiar with all the equipment`s functions and safety procedures Turn off/lock out/tag out any malfunctioning equipment and inform the person in charge as soon as possible Make sure the limit switches (if applicable) function properly Signal your intent to move a load to people around you...
-
Page 16: Inspection
Inspection Daily Inspection The operator must conduct a daily inspection on the equipment at the beginning of each shift or when the winch is used for the first time during the shift. The daily inspection is a visual and auditory examination of the machine. The following procedures should be carried out with no load: Daily Inspection Make sure the equipment is not tagged out of service... -
Page 17: Periodic Inspection
Periodic Inspection An in-depth inspection of the equipment must be carried out on a regular basis by a qualified person. The winch and its components are examined to ensure the equipment is safe for use. The periodic inspections vary in frequency and details according to the intensity of the equipment use but must include at least the daily inspection procedure and a verification of the items listed below: Periodic Inspection... -
Page 18: Inspection Log Book
As a rule of thumb (unless indicated otherwise), replace any component whose wear on any one dimension exceed 2.5% of the original nominal value. Inspection Log Book A detailed log book must be kept of all inspections, repairs and modifications carried out on the equipment as well as a follow up on the wear of major components like the wire rope cable, the hook, the gear reducer, the drum, etc. -
Page 19: Wire Rope Discard Criteria
Wire Rope Discard Criteria The precise discard criteria for the wire rope must be determined by a qualified person while keeping in mind the characteristics of the application. As a rule of thumb, any cable that shows one or more of the signs below should be replaced: Wire Rope Discard Criteria Six random broken wires over one cable lay or three broken wires in the same strand over one cable lay... -
Page 20: Maintenance
Maintenance A log book of maintenance procedures, inspections findings and all repairs carried out on the equipment must be kept for future reference. Gear Reducer Lubrication Vent Plug and Level Plug Install the bent plug according to the reducer orientation before putting the machine into service: Symbol Definition... -
Page 21: Recommended Oil Types
Change the oil after the first 6 months then once every two years or more frequently based on the use intensity • Discard the old oil in accordance with local laws and regulations • Do not mix different oil types inside the reducer. Certain oils may react and affect the functionality of the reducer or damage the gears Recommended Oil Types Temperature... -
Page 22: Part List
Part List Operator`s Manual – Electric Winch 2018-08-03, rev 1... - Page 23 Part List Part No. Part No. Part No. Part No. Part No. Part No. Description W047 W057 W067 W077 W097 Reducer WCH-100-4 WCH-100-57 WCH-100-67 WCH-100-77 WCH-100-87 WCH-100-97 Motor Drum WCH-A002-47 WCH-A002-57 WCH-A002-67 WCH-A002-77 WCH-A002-87 WCH-A002-97 Winch Base WCH-004-47 WCH-004-57 WCH-004-67...
- Page 24 Vulcan Hoist Ltd 3435, Cremazie East, Montreal (Quebec) H1Z 2J2 514 728-4527 vulcanhoist.com...
