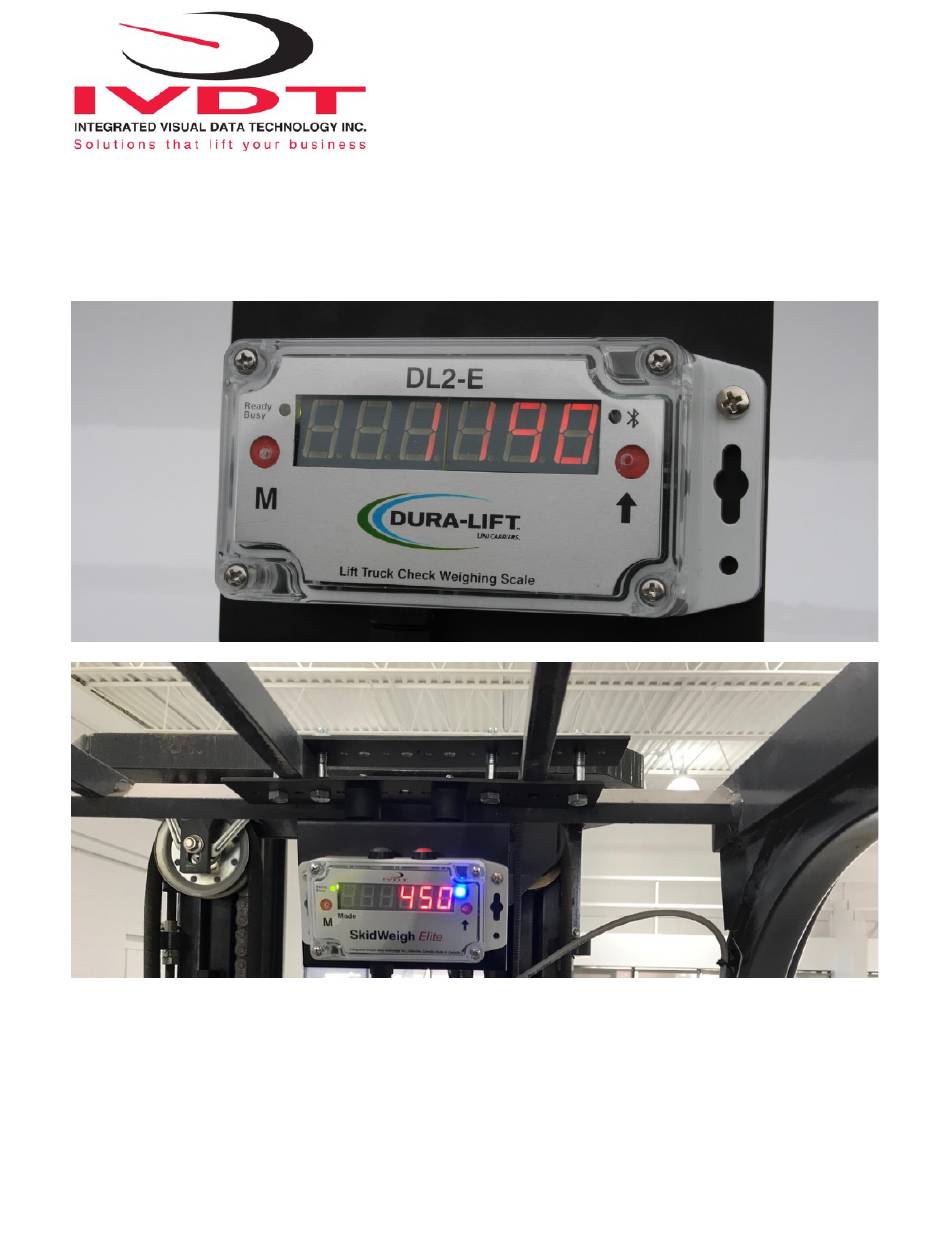

- Page 1 Installation & Calibration Manual DL2-E System ED2E-AT Elite & DL2-E-AT DURA-LIFT Lift Truck Onboard Weighing Scale ED2E-AT-Elite V1500 Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
-
Page 2: Electromagnetic Compatibility
General Installation Guide This ED2E-Elite SkidWeigh / DL2-E system installation & calibration guide describes how to install, calibrate, test and use your on-lift truck board load weighing system. Following the instructions in this guide will enable you to get your system operating quickly and easily. -
Page 3: Pressure Transducer Installation
Operational principal The ED2E Elite SkidWeigh system operational principal is based on the hydraulic pressure transducer mounted in the vehicle lifting hydraulic circuit that will automatically activate the “weighing cycle / specific algorithm ” every time a skid load is lifted just above the ground. The increase in pressure is converted in an electronic signal at the sample rate of 16000 readings per session which is converted into a load weight reading. -
Page 4: Compact Size
Compact size All of the SkidWeigh-OL Series systems are compact size, housing dimension of only 115 x 65 x 40 mm (4,53” x 2,65” x 1,58”) with mounting flange. Electrical Connections All SkidWeigh Elite Series systems operate from 12 to 55 VDC. Digital indicator with seven wires single cable - Orange Wire (+) Ignition switch On position - Brown Wire (-) Battery negative... - Page 5 Electrical power short circuit protection - All of the SkidWeigh OL Series systems are internally short circuit protected with resettable fuse. There is no need to install external inline fuse in orange wire connected to the ignition switch. - Automotive 60 V load dump protection - Reversal power supply protection “Quick test to determine if electrical connections are done right”...
- Page 6 Calibration starting point Lower the empty forks to the ground. There should be no hydraulic pressure in lift hydraulic circuit. - Turn ignition switch to on position and start the engine - LED display will show software version on the right side and number 8 will be shown in Mode window.
- Page 7 Note: Next step will be to calibrate the system by lifting known load weight. Calibration of loaded forks being lifted just above the ground Pick up a known load weight and lower the the loaded forks to the ground. - (Green led light, “Ready” will be on) - In our example we will use a known calibration load weight of 4000 pounds Our Example: - Known load weight to calibrate the system is 4000 pounds.
- Page 8 - Keep pressing “M” button and enter a third, forth and fifth values. - As the input for known load value has only four digits (4000 in our example), the fifth digits must be “0”. - Before going to Mode 6 please make sure that the “Known load weight” is ready to be lifted.
-
Page 9: Overload Warning
ED2E-Elite / DL2-E SkidWeigh Series Available Options Overload Warning ____ ED2E-Elite-V SkidWeigh system with visual overload warning ED2E-Elite-VA SkidWeigh system with visual / audio overload warning As soon the ED2E Elite system is calibrated LED display will show number 7 in Mode digit. When LED display shows “Mode 7”... - Page 10 Accumulative Load Weight total ____ ED2E-Elite-AT SkidWeigh system with accumulative load weight Load ADDITION Accumulative Load Total Black Button RESET / PRINT Red Button ED2E-Elite-AT-BP ____ SkidWeigh system with accumulative load weight total + Onboard Printer (Bluetooth) Printer pairing procedure: _ Turn printer on.
- Page 11 Two Independent Weighing Channels ____ ED2E-Elite-2X SkidWeigh system with two independent weighing channels - LCD display showing Mode 8 is representing first independent weighing channel - LCD display showing Mode 82 is representing second independent weighing channel Mode 8 is the first weighing channel By pressing two weighing channels switch indication on LED display will change to Mode 82 Note: The calibration procedure is the same for the second weighing channel, indicated on LED display as Mode 82.
- Page 12 OPERATOR GUIDE 1. Drive forks into palleted load 2. Make sure that the forks are completely to the ground with no pressure in hydraulic system LED display must show Mode 8 3. Lift the loaded forks approximately 2” above the ground. Use the hydraulic lift lever and accelerator pedal only (same as during normal usage) - Do not move vehicle, manipulate the tilt, side shift or forth lever function during weighing process.
