Demco
Insert hex wrench into hexagonal hole at end of the shaft, to keep it from turning.
PULLEY REPLACEMENT
(Figure 2)
Unscrew nut and pull off old pulley. Replace with a new pulley and then replace nut.
BELT REPLACEMENT
Loosen set screw. Rotate spindle by pushing handle forward to relieve belt tension.
(Figure 2)
Remove belt.
It is imperative that the belt tension be correct to assure a long life for pulley and bearings. To
PROPER CARE OF MOTOR PULLEY & SPINDLE PULLEY
set belt tension, loosen set screw(s) (see "BELT REPLACEMENT"). Align the motor pulley with
the spindle pulley by using a straight edge. Then move the spindle towards you by rotating
Adjust tension to allow approximately 3/8" play in the belt.
(Model E-96).
should be repeated as the new belt stretches. Motor pulleys and spindle pulleys should be
replaced when worn.
Newer Model E-96 motors have sealed, pre-lubricated bearings and DO NOT require oil.
DRIVE MOTOR LUBRICATION
Please visit our website for warranty policy, technique videos on proper care and usage.
Electric Shock Hazard
Regardless of control settings, on or off, a shock hazard exists at fuse located
below cover plate in components compartment. Unplug electric cord before
attempting any service.
Eye Safety
Wear safety glasses or eye shield while operating this machine.
Belt Guard
The belt guard must be in place while machine is in operation.
Do not wear loose clothing while opperating this machine.
Manufacturer
TM
This procedure
Warning
Caution
Protect Eyes
Form DEMCODFU

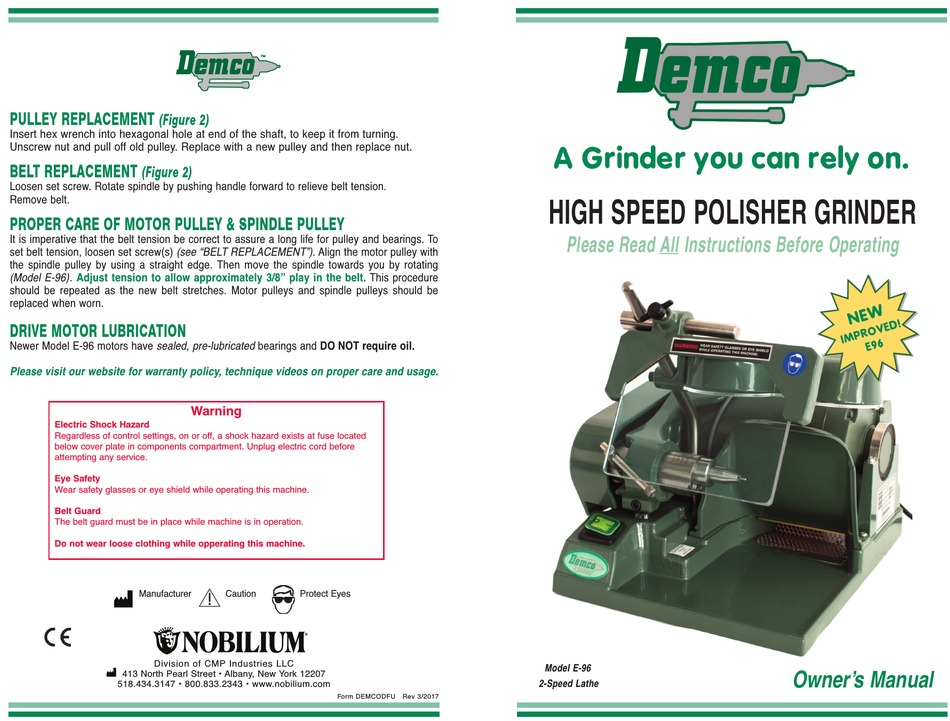

HIGH SPEED POLISHER GRINDER
A Grinder you can rely on.
Please Read All Instructions Before Operating
Model E-96
2-Speed Lathe
Rev 3/2017
Owner's Manual
