WP-CONC Instruction Manual
For programming
information:
For general overview:
The WP-CONC is required for the following products:
WAPIR
,
W LED30CV4
,
What is the WP-CONC?
The WP-CONC is used to connect certain products to the Rako Wired network. It allows
cables to be connected to the wired network via a punchdown. It also provides termination
jumpers which must be set appropriately for the system to work correctly.

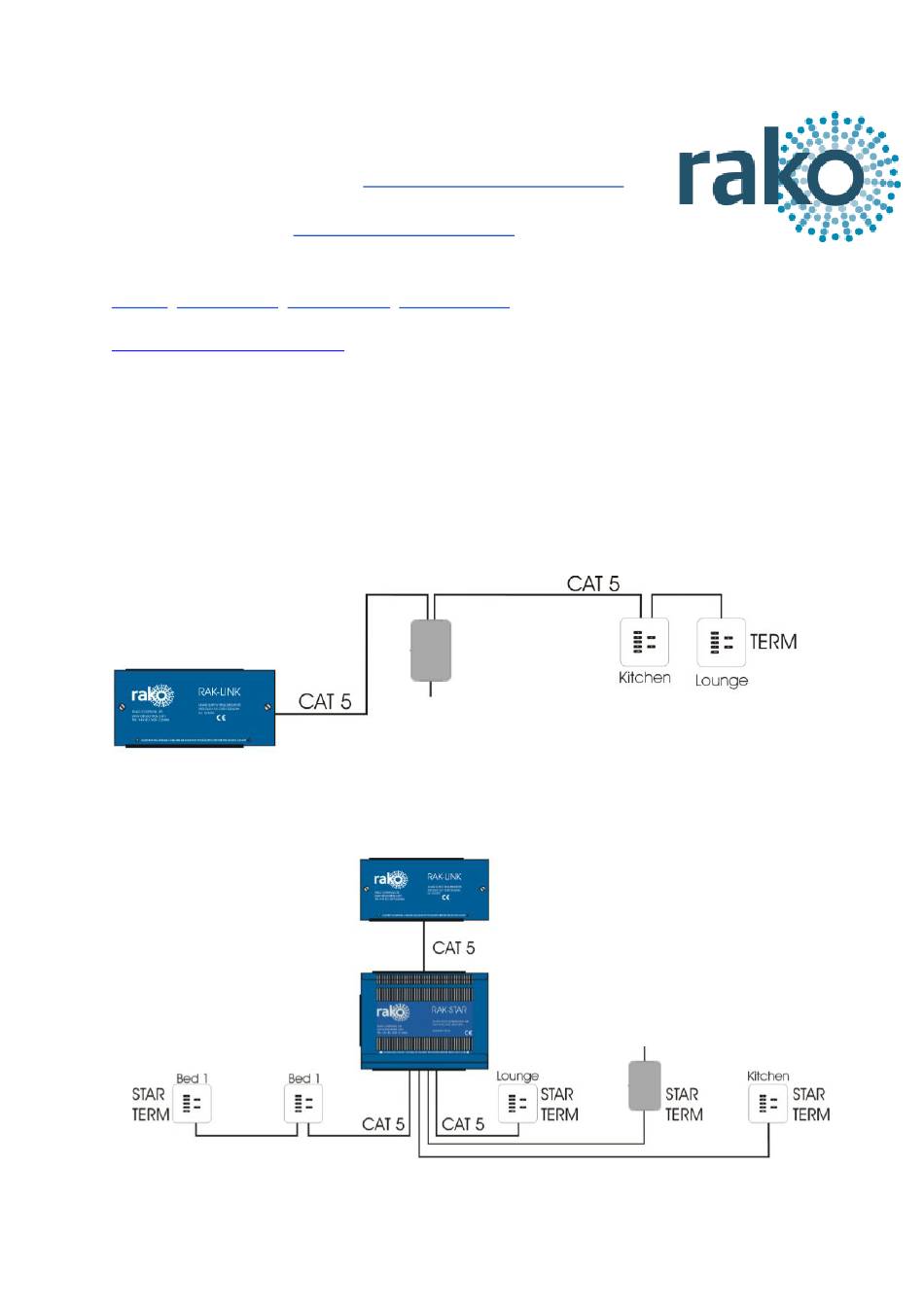

The wired system is most commonly configured in one of two ways:
"Daisy Chain" configuration - A single leg of wired devices runs from the RAK-LINK to an
end point. It is still usually advisable to run a return leg back to the RAK-LINK as a spare.
"STAR" configuration - C ables are all run back to a central point: a RAK-STAR usually
located with the RAK-LINK. Each cable can be from a single keypad or a leg of keypads.
WCM-070
W ired system Programming Guide
W ired RAK Application Sheet
W LED75CV1
,
W LED150CV1
Manual Version 2.0.1
