New

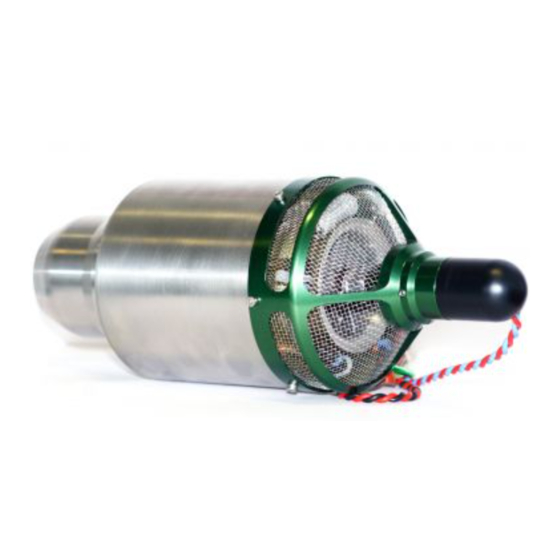

High Performance
Miniature Gas Turbine Engine
7.5kg – 16.5lbs thrust
Specifications:
Thrust 75N – 16.5Lbs
Weight – 1030g – 2lb 2oz
Perfect small size, high performance
Size – 90mm dia x 240mm long (inc
gas turbine engine for beginners and
starter)
expert alike.
3-1/2" x 9-1/2" long.
Integral FOD screen and high quality
A real quart in a pint pot!!
components throughout for long life.
Advertisement
Related Manuals for Wren Turbines 75
Summary of Contents for Wren Turbines 75
-
Page 1: High Performance
High Performance Miniature Gas Turbine Engine 7.5kg – 16.5lbs thrust Specifications: Thrust 75N – 16.5Lbs Weight – 1030g – 2lb 2oz Perfect small size, high performance Size – 90mm dia x 240mm long (inc gas turbine engine for beginners and starter) expert alike. - Page 2 The Wren 75 is built along the lines of the highly successful Wren SuperSport which was the first ultra high performance turbine commercially produced and has now been in successful continuous production for six years.
-
Page 3: Safety Notes
Protect from sunlight and prevent exposure to temperatures exceeding 50’C. Keep out of reach of children. Discard used canisters in a safe place and do not puncture or incinerate, even when empty. Avoid deliberate inhalation. WREN 75 - High Performance Gas Turbine Engine Page... - Page 4 The mounting must be properly secured as the thrust from this small engine is considerable and users are asked to use “belt and braces” in mounting to avoid any possibility of the stand being pushed over WREN 75 - High Performance Gas Turbine Engine Page...
- Page 5 The outlet of the gas tank is fed via 3mm tube direct to the gas solenoid valve and the flow is then controlled by the screw-down valve on its outlet in the normal way. WREN 75 - High Performance Gas Turbine Engine Page...
- Page 6 Auto-start setup and operating notes The Autostart notes form a quick reference sheet to help you set up and use your Wren 75 gas turbine engine and “FADEC” Auto-start v6.11 ECU. The engine is supplied ready-to-run and has already been tested with all components supplied so you know it is properly prepared.
- Page 7 This completes your radio set-up. It should only need doing again if the radio settings are changed or installation moved to another radio but it is worth rechecking periodically. WREN 75 - High Performance Gas Turbine Engine Page...
- Page 8 The tank does not need to be any more than about 1/3 full for several successful starts. Do not attempt to fill more than this as it is unnecessary and will not aid gas supply. WREN 75 - High Performance Gas Turbine Engine Page...
- Page 9 Once you have done a few practice gas light-ups you can connect up your fuel tank and prepare for a proper engine run. Secure your test stand or aircraft firmly. Position it in a suitable place in a well ventilated WREN 75 - High Performance Gas Turbine Engine Page...
- Page 10 ECU needs this cycle to relearn the throttle stick position to rpm match and it is good practice to do this at the beginning of all engine runs. You can now explore the response time of the engine. All turbines have a throttle lag, but the Wren 75 is remarkably quick to respond. Shutting down.
- Page 11 (cycles - CY) and the time in seconds of the last run. Use this screen to keep track of your total running time and flight times. WREN 75 - High Performance Gas Turbine Engine Page...
- Page 12 Propane/Butane mixtures work best in all climates. Normally less gas is the secret - too much will be harder to light and tends to flame out of the exhaust when it finally does ignite. Overhead view WREN 75 - High Performance Gas Turbine Engine Page...
- Page 13 Damage or defective operation covered under the warranty terms will be repaired and tested at no cost to the original owner (other than post and packing). Repairs not covered under the terms of the warranty will be carried out by Wren Turbines Ltd, or their appointed agents, after agreement of costs.
