Snapper Intermediate Frame Snow Throwers Set-Up Instructions & Pre-Operation Checklist page 3

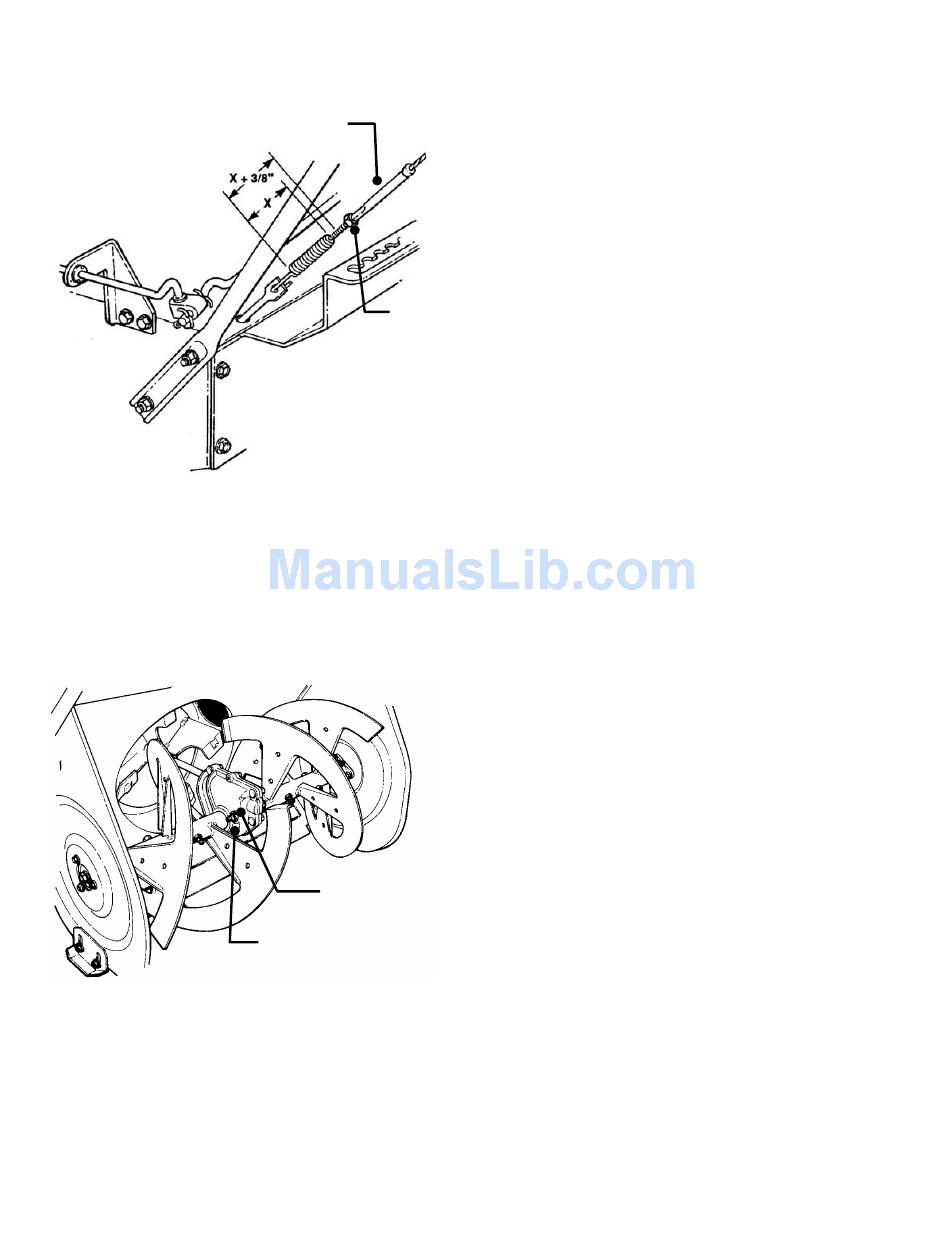

STEP 8: ADJUSTMENT: Adjust cable lengths so that
each spring stretches 3/8" when the clutch lever is
depressed. When released, both clutch cables should
be slack. See Figure 8.
SPRING SHOULD
STRETCH 3/8"
WHEN HANDLE IS
DEPRESSED
FIGURE 8
STEP 9: LUBRICATION: Remove check plug to
check grease level in auger gear case. If grease is not
visible from check plug hole, pump BENELENE 900
grease, SNAPPER Part No. 2-9577, into fill plug on
case until grease is visible. Reinstall check plug. See
Figure 9.
FIGURE 9
STEP 10: CHECKLIST: Complete all items on the Pre-
Operation Checklist as instructed.
CONNECTOR
JAM
NUT
TO ADJUST, LOOSEN JAM NUT
AND TURN CONNECTOR TO
SHORTEN OR LENGTHEN
CABLE AS NEEDED TO ATTAIN
THE 3/8" EXTENSION. TIGHTEN
JAM NUT AFTER ADJUSTING.
GEAR CASE
GREASE FITTING
CHECK PLUG
3
