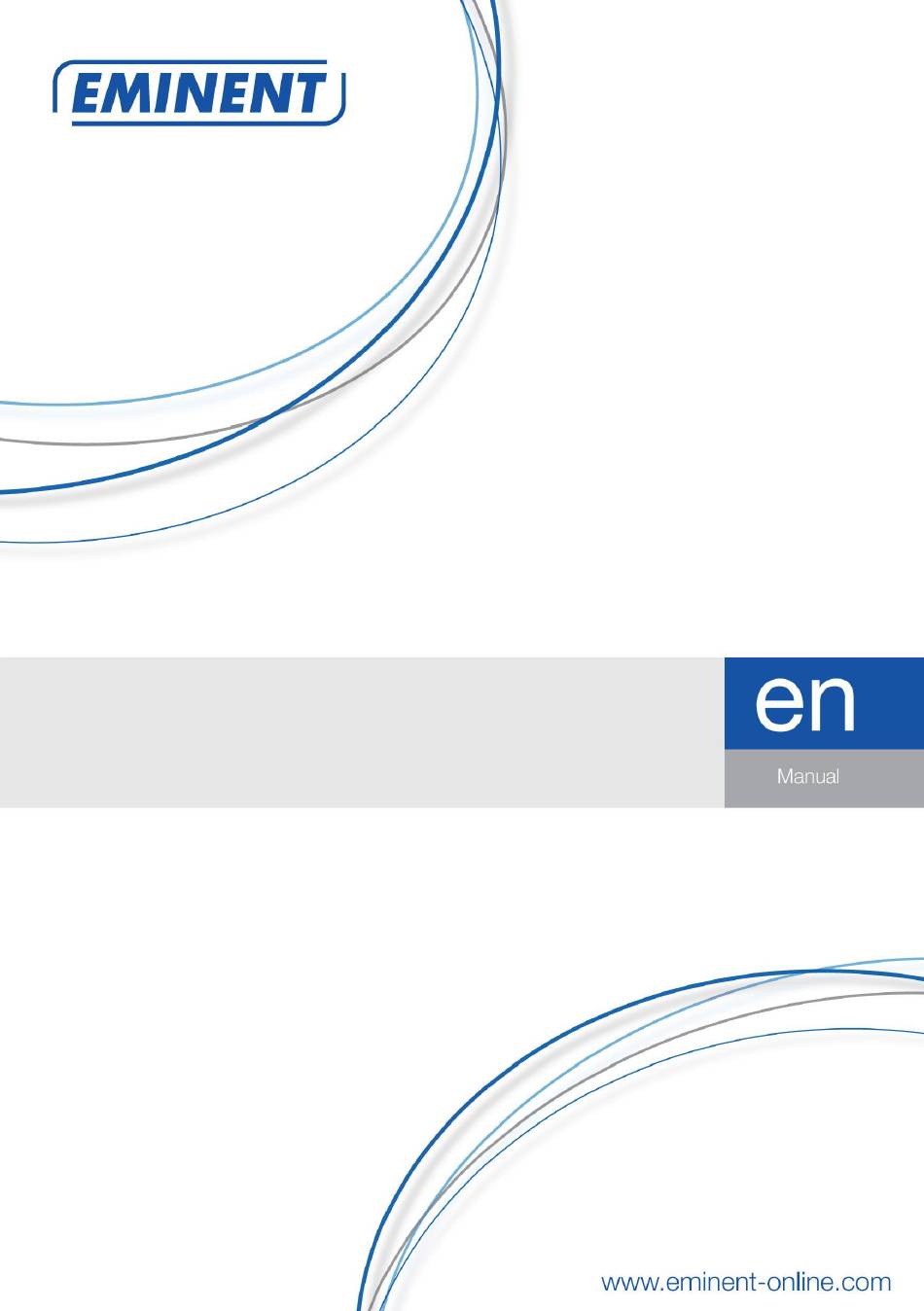

- Page 1 EM8622 Wireless Control Panel...
-
Page 2: Table Of Contents
ENGLISH EM8622 - Wireless Control Panel Table of contents 1.0 Introduction ......................3 1.1 Packing contents ....................3 1.2 Control panel front ..................... 3 1.3 Control panel inside ................... 4 2.0 Installation ......................4 3.0 Usage ........................5 3.1 Arm the alarm system ..................5 3.2 Disarm the alarm system ................... -
Page 3: Introduction
Congratulations with the purchase of this high-quality Eminent product! This product has undergone extensive testing by Eminent’s technical experts. Should you experience any problems with this product, you are covered by a five-year Eminent warranty. Please keep this manual and the receipt in a safe place. -
Page 4: Control Panel Inside
ENGLISH 1.3 Control panel inside Battery contact, please check positive and negative terminals Battery compartment Tamper switch Wired cable connection Red wire = + 12V Black wire = - GND 2.0 Installation Install the batteries and mount the control panel on the door frame or the wall before use. -
Page 5: Usage
ENGLISH 1) Remove the screw and open the case 2) Install the batteries according to the positive and negative signs (Remove the insulating strip before the first use) 3) Mount the backcover on the door frame or wall 4) Close the case and replace the screw Note : Opening the cover will trigger the tamper switch ! You can disarm it by entering the admin code 123456 followed by [#]. -
Page 6: Disarm The Alarm System
ENGLISH If there is an intrusion the alarm system will be triggered, the siren will hoot and the alarm system will send an SMS and auto dial to pre-stored phone numbers to notify users. Note : When an entry delay is set, the external control panel will NOT warn you with an audio signal when a sensor is triggered. -
Page 7: Using Rfid Tag To Disarm
ENGLISH 3.2.2 Using RFID Tag to disarm If direct disarm by RFID tag is disabled (this is the default power saving mode when using batteries), user needs to press [*] to wake up the control panel and then put RFID tag close to the reader to disarm the alarm system.. When the power saving function is disabled, user can put the RFID tag directly close to the control panel to disarm the alarm system. -
Page 8: Emergency Call
ENGLISH 3.2.4 Emergency Call When the control panel is in SOS Speed Dial mode, user just holds the [SOS] key for 3 seconds, the LED indicator flashes once, the control panel beeps once, and the alarm system alarms immediately. When the control panel is not in SOS Speed Dial mode, user needs to input user code or admin code before holding the [SOS] key for 3 seconds to send an alarm. -
Page 9: Connect To The Alarm System
ENGLISH 4.0 Connect to the alarm system Note : The default admin code is : 123456. See chapter “Change Admin Code” to change it. Note : The default user code is : 1234. See chapter “Change User Code” to change it. Make sure the alarm system is in connection state (press code on alarm system and press the memo button). - Page 10 To remove all connected RFID tags, input the admin code followed by the # button. Press and hold down the 9 button for six seconds. All RFID tags are cleared after one beep is heard. Note : you can connect up to 50 RFID tags to the EM8622.
-
Page 11: Settings
11 | ENGLISH 6.0 Settings Before changing the settings of the control panel, the control panel should be in “setup-state”. 6.1 Enter Setup-state Note : The default admin code is : 123456 Input the admin code followed by the [#] button to wake up the control panel. Press [3] to enter the setup-state. -
Page 12: Sos Speed Dial
12 | ENGLISH After setting a delay time, press the [Arm] button on the control panel. The control panel will send the Arm command to the alarm system after the delay time you set in the control panel. Note : This setting will not apply to the Home mode. If both the control panel and the alarm system have a delay time set, the actual delay time is the total of both times ! Enter the setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds the setup is... -
Page 13: Disable Sos Code
13 | ENGLISH 6.3.1 Disable SOS code Enter Setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds, the setup is successful. 6.3.2 Enable SOS code Enter Setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds, the setup is successful. -
Page 14: Keyboard Tone
14 | ENGLISH 6.4 Keyboard tone Keyboard tones can be switched on or off. If they are switched off, the beep when a setup is successful will also be switched off ! 6.4.1 Disable keyboard tone Enter Setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds, the setup is successful. -
Page 15: Disarm System By Rfid Tag
15 | ENGLISH 6.5 Disarm system by RFID tag Users can enable or disable the function of disarming the alarm system by RFID tag, or disarming silent by RFID tag. 6.5.1 Disable disarming by RFID tag Enter Setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds, the setup is successful. -
Page 16: Disarming Silently By Rfid Tag
16 | ENGLISH 6.5.3 Disarming silently by RFID tag The alarm panel and siren will hoot twice when disarming the alarm system by RFID tag. If set disarming silently by RFID tag, the alarm system and siren will keep silent when disarming. -
Page 17: Enable Power Savig Mode
17 | ENGLISH 6.6.1 Enable power savig mode Enter Setup-state and input : When one beep is heard and the LED indicator keeps on for 10 seconds, the setup is successful. 6.6.2 Disable power saving mode If the control panel is powered by an external 12V power supply (not included), it is recommended to switch of the power saving mode. -
Page 18: Change User Code
18 | ENGLISH 6.7 Change user code A user can use its own code to wake up the control panel and send Arm, Disarm or Home mode commands to the alarm system. The control panel can only have one user code. Note : The default user code is 1234. -
Page 19: Reset The Control Panel
The latest Frequently asked questions for your product can be found on the support page of your product. Eminent will update these pages frequently to assure you have the most recent information. Visit www.eminent-online.com for more information about... -
Page 20: Service And Support
20 | ENGLISH 8.0 Service and support This user’s manual has been carefully written by Eminent’s technical experts. If you have problems installing or using the product, please fill out the support form at the website www.eminent-online.com/support. You can also contact us by phone. Below you will find a list with phone numbers for each supported country. -
Page 21: Warning And Points Of Attention
Warning: In most cases this concerns an electronic device. Wrong/improper use may lead to (severe) injuries! Repairing of the device should be done by qualified Eminent staff. The warranty immediately voids when products have undergone self-repair and/or by misuse. For extended warranty conditions, please visit our website at www.eminent-... -
Page 22: Warranty Conditions
Eminent products. Eminent products with an internal hard disk have a limited warranty period of two years on the hard disk. Eminent could not be held responsible for any data lost. Please make sure that if the product stores data on a hard drive or other memory source, you will make a copy before you return the product for repair. -
Page 23: Declaration Of Conformity
I, the undersigned, hereby declare that the equipment Conforms with the essential requirements and other relevant requirements of the R&TTE Directive (1999/5/EC) and to the above standards. Place: Barneveld, The Netherlands Date: 5-11-2013 Name: Marc Pannebakker Signature: EM8622 | 03-2014...
