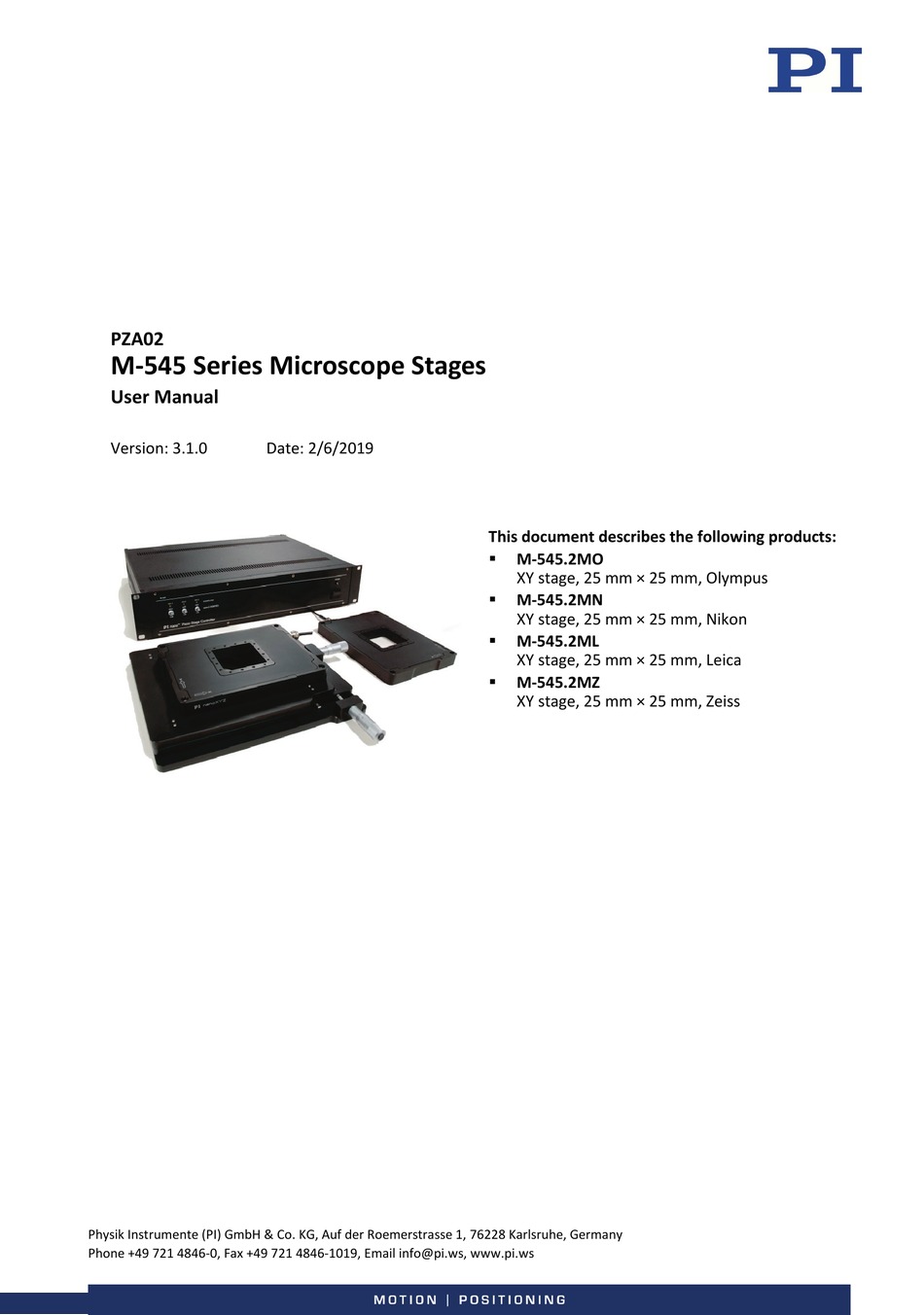

PZA02
M-545 Series Microscope Stages
User Manual
Version: 3.1.0
Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany
Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws
Date: 2/6/2019
This document describes the following products:
M-545.2MO
XY stage, 25 mm × 25 mm, Olympus
M-545.2MN
XY stage, 25 mm × 25 mm, Nikon
M-545.2ML
XY stage, 25 mm × 25 mm, Leica
M-545.2MZ
XY stage, 25 mm × 25 mm, Zeiss
Advertisement
Table of Contents
Related Manuals for PI M-545 Series
Summary of Contents for PI M-545 Series
- Page 1 XY stage, 25 mm × 25 mm, Leica M-545.2MZ XY stage, 25 mm × 25 mm, Zeiss Physik Instrumente (PI) GmbH & Co. KG, Auf der Roemerstrasse 1, 76228 Karlsruhe, Germany Phone +49 721 4846-0, Fax +49 721 4846-1019, Email info@pi.ws, www.pi.ws...
- Page 2 © 2019 Physik Instrumente (PI) GmbH & Co. KG, Karlsruhe, Germany. The text, photographs and drawings in this manual are protected by copyright. With regard thereto, Physik Instrumente (PI) GmbH & Co. KG retains all the rights. The use of any text, images and drawings is permitted only in part and only when indicating the source.
-
Page 3: Table Of Contents
Contents Model Survey Compatibility Accessories Adapter Plates ......................4 Specimen Holders ....................... 5 Drive Sets ........................7 Dimensions M-545.2MO and M-545.2MN Dimensions ..............8 M-545.2ML Dimensions ..................... 9 M-545.2MZ Dimensions ................... 10 Mounting M-545.2MO Mounting (for Olympus Microscopes) ..........11 M-545.2MN Mounting (for Nikon Microscopes) ............ -
Page 4: Compatibility
1 Model Survey Model Survey The M-545 series of stages is designed for use with inverted microscopes from the leading manufacturers (Nikon, Olympus, Leica and Zeiss). The stages are designed to allow full rotation of the lense turret throughout the Z motion range of the turret. -
Page 5: Accessories
3 Accessories Accessories The following accessories are available for the M-545 stage. Accessory kits can be ordered from PI and are supplied with fasteners. Adapter Plates P-736.AP1 adapter plate For mounting P-736.ZRx PInano® Z piezo scanners onto M-545 XY stages M-545.SHP adapter plate... -
Page 6: Specimen Holders
3 Accessories P-733.AP1 adapter plate For mounting a P-733 piezo stage onto the M-545 XY stage Specimen Holders P-545.SH3 Microscope slide holder for PInano® piezo stages M-545 Series Microscope Stages PZA02 Version: 3.1.0... - Page 7 3 Accessories P-545.PD3 Petri dish holder, 35 mm, for PInano® piezo stages P-545.PP3 Universal holding plate for accessory for PInano® piezo stages M-545 Series Microscope Stages PZA02 Version: 3.1.0...
-
Page 8: Drive Sets
Drive set for M-545 XY stage: Includes stepper motor linear actuators* * A suitable controller can be ordered separately. M-545.USC Drive set for M-545 XY stage: Includes stepper motor linear actuators, controller and joystick The drive sets include M-229 stepper motor actuators. M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 9: Dimensions
4 Dimensions Dimensions M-545.2MO and M-545.2MN Dimensions M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 10: M-545.2Ml Dimensions
4 Dimensions M-545.2ML Dimensions M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 11: M-545.2Mz Dimensions
4 Dimensions M-545.2MZ Dimensions M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 12: Mounting
5 Mounting Mounting M-545.2MO Mounting (for Olympus Microscopes) Spacer plates are used to adapt the M-545 stage to the Olympus IX2 / IX3 microscope base. The proper hardware sizes are shown below. M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 13: M-545.2Mn Mounting (For Nikon Microscopes)
5 Mounting M-545.2MN Mounting (for Nikon Microscopes) Spacer plates are used to adapt the M-545 stage to the Nikon TI microscope base. The proper hardware sizes are shown below. M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 14: M-545.2Ml Mounting (For Leica Microscopes)
M-545.2ML Mounting (for Leica Microscopes) No spacers or adapters are required for the Leica DMI microscope base. Fits Leica models DMI 4000, DMI 5000 and DMI 6000. The proper hardware sizes are shown below. M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 15: M-545.2Mz Mounting (For Zeiss Microscopes)
M-545.2MZ Mounting (for Zeiss Microscopes) No spacers or adapters are required for the Zeiss Observer microscope base. Fits Zeiss Axio Observer models A1, D1 and Z1 and Z1m. The proper hardware sizes are shown below. M-545 Series Microscope Stages PZA02 Version: 3.1.0... -
Page 16: Technical Information
A series of accessories is available from PI to assist with mounting a sample holder to the stage. The M-545.SHP is available to hold standard 1” × 3” (25 mm × 75 mm) microscope slides and the P-545.PD3 is offered for holding 35 mm Petri dishes.
