- Page 1 SCHULMERICH CARILLONS, INC. SELLERSVILLE, PA GENERATION ™ OUTDOOR RADIO REMOTE CONTROL OPERATING INSTRUCTIONS SPECIFICATIONS BULLETIN 46-1210 Rev. A MARCH 10, 2004...
- Page 2 OUTDOOR RADIO REMOTE GENERAL DESCRIPTION: The Outdoor Radio Remote consists of a battery-powered, hand-held transmitter and an associated outdoor mounted receiver. The receiver is mounted in a weatherproof box designed to be mounted outdoors on a building or antenna pole The receiver is connected to the carillon system cabinet with FiberLink™...

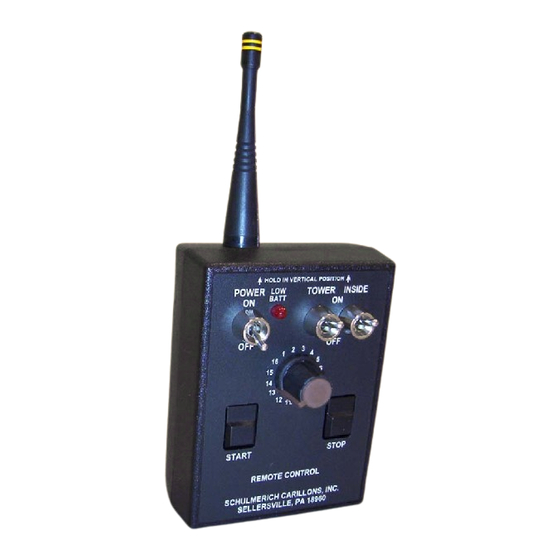

- Page 3 OUTDOOR RADIO REMOTE FRONT VIEW REAR VIEW ANTENNA BATTERY LIGHT SPEAKER SWITCHES POWER FUNCTION SWITCH IDENTIFICATION LABEL SELECTOR SWITCH START BUTTON BATTERY COMPARTMENT STOP BATTERY BUTTON TO MAXIMIZE RANGE: Hold the remote in a vertical position with the antenna pointing straight up. Maintain an unobstructed line-of-sight to the receiving antenna.
- Page 4 OUTDOOR RADIO REMOTE OPERATION: 1. Turn on the Power toggle switch. The red Low Batt light will flash briefly. If it does not blink at all, the battery is dead. If the carillon is playing automatically, it can be cancelled by pressing and holding Stop for at least three seconds. The red Low Batt light will blink when the batteries lose charge.
- Page 5 OUTDOOR RADIO REMOTE AUTO LOCKOUT FEATURE: Position 16 on the selector switch will prevent the carillon from playing automatically for one hour. For instance, if the carillon is programmed to play at 10:00AM and you wish to silence it from 9:30 thru 10:30 for a special service. This can be done by turning on the Power switch, rotating the selector to the Auto Lockout position, and pressing the Start button.
- Page 6 OUTDOOR RADIO REMOTE Specifications: • Schulmerich Remote Control System part number 036-2018-010. • Maximum range between the receiving antenna and the remote is 1,000 feet. • Up to eight outdoor wireless remotes may be connected to a carillon system. • Each is able to control up to sixteen individual system functions.
- Page 7 INSTRUCTION TO THE USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate this equipment.
