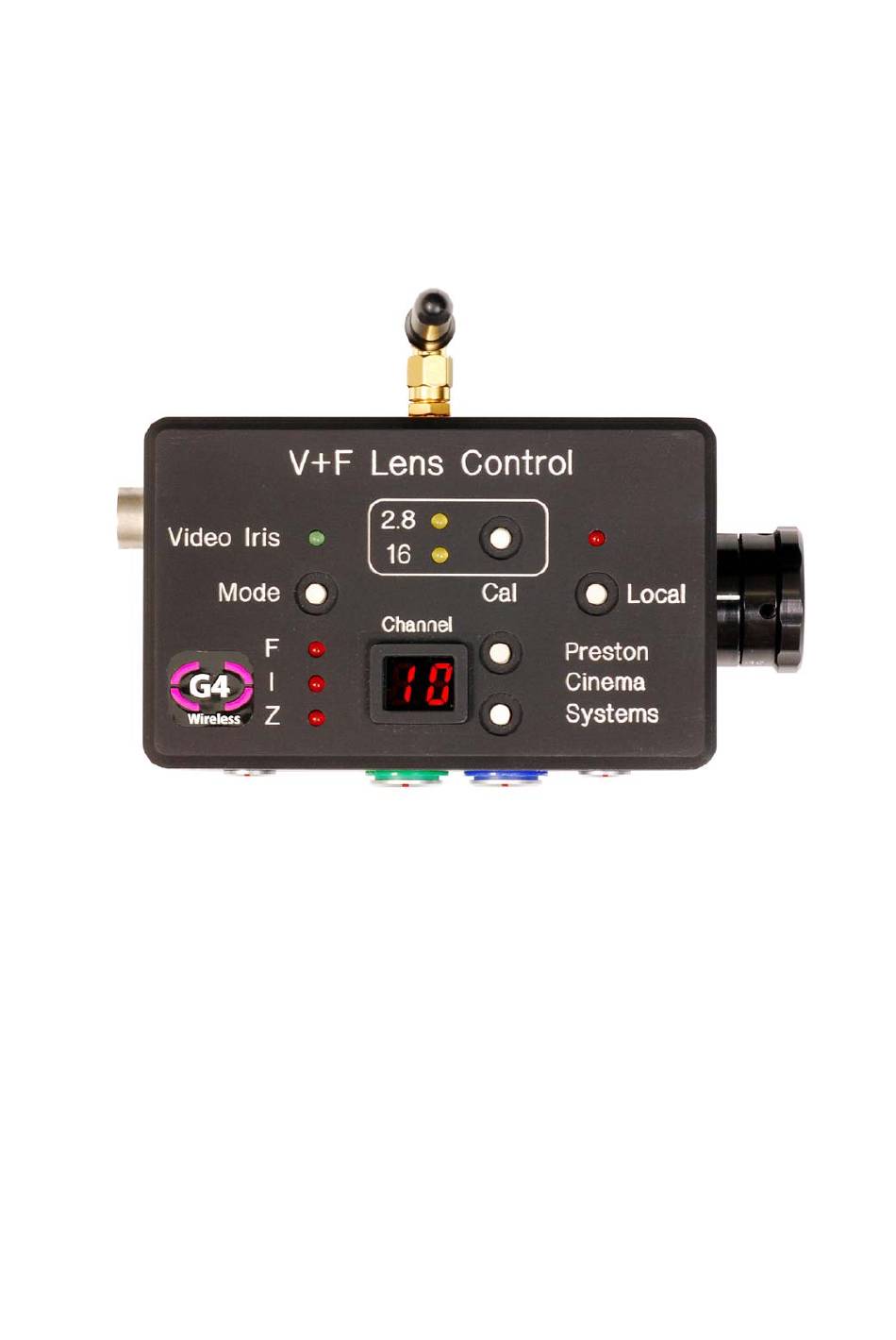

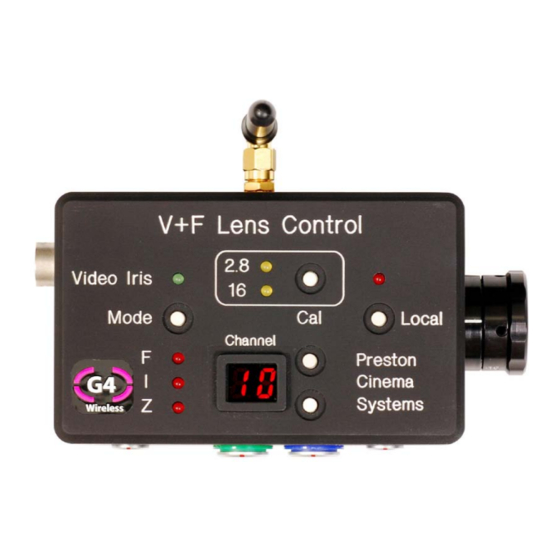

Summary of Contents for Preston Cinema Systems V+F Lens Control
- Page 1 V+F Lens Control Manual v1.2...
- Page 2 5. FCC Statement 1. Description. The V+F Lens Control is available as a single channel wireless/cable control (p/n 4050) or a cable only version (p/n 4051). Both are used with DM-1 or DM-2 digital motors. The cable only version is intended to control the iris function of cinema style lenses mounted on video cameras. In this mode, the iris is controlled through: the cameras’...
- Page 3 2. Operation p/n 4050 Wireless Version p/n 4051 Cable Only Version VLC Receptacles Mounting Bracket p/n 4342 A. Mounting the V+F Lens control to the Camera. VLC and Digital Motor with brackets...
- Page 4 Secure the V+F Lens Control to the Matte Box Support Rods using the Mounting Bracket. The jaw opening is adjusted to accommodate different rod sizes by turning the free half of the bracket as shown in the picture above. b. The V+F unit can be powered directly from the camera, or through a separate power cable.
- Page 5 3. Specifications Size 107mm x 66mm x 45mm (4.2" x 2.6" x 1.75") Weight: 350g Power Requirements: 11 - 30 VDC 0.2A quiescent at 12VDC. 4. Cables and Accessories 4620 Camera Cable Arriflex 12V 11-pin Fischer 4621 Camera Cable Arriflex 24V 3-pin Fischer 4622 Camera Cable Panavision Film 4623...
- Page 6 The user is cautioned that changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received including interference that may cause undesired operation.
