Summary of Contents for ASTA GPS TRACKERS EV-07S

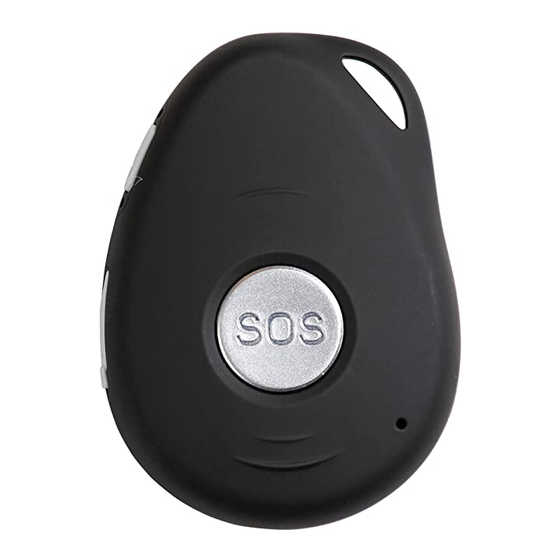

- Page 1 THE EV-07S PERSONAL GPS TRACKER FROM ASTA GPS TRACKERS STEP BY STEP SET UP GUIDE BY ASTA GPS TRACKERS...
- Page 2 EV-07S PACKAGE CONTENTS • EV-07S PERSONAL TRACKING DEVICE. • FREE UK PAY AS YOU GO SIM. • USB POWER CABLE. • 3 PIN UK 13A USB CHARGING PLUG. • LANYARD. • USB DOCKING CHARGER. • USER MANUAL.
- Page 3 2 WAY CALLING. • 3 PRE-SET EMERGENCY CONTACTS NUMBERS. • INSTANT SOS ALERT SMS MESSAGE WITH GOOGLE MAPS LINK. • GEO-FENCE PRE-SET BOUNDRIES WITH INSTANT ALERT. • WATERPROOF TO IPX6 • THE EV-07S HAS BUILT-IN U-BLOX GPS AND GSM/GPRS TECHNOLOGY.
- Page 4 SETTING UP YOUR EV-07S GPS TRACKER FOR THE FIRST TIME • FOR THE FIRST TIME CHARGING WE RECOMMEND CHARGING FOR 2 TO 3 HOURS IN THE SUPPLIED USB CHARGING DOCK. • PLUG THE USB LEAD IN TO THE BACK OF THE...
- Page 5 BY PLACING IT IN THE USB CHARGING DOCK OR CONNECTING THE USB CABLE DIRECTLY. • TO GET AN INITIAL LOCATION, USE OUT DOORS OR NEAR A WINDOW, SO THE EV-07S MAY FIX ON TO A SATELITE. • TO TURN OFF THE EV-07S: •...
- Page 6 WHAT DO THE LIGHTS MEAN? BLUE • BLUE LED ON - THE DEVICE IS CHARGING. • BLUE LED BLINKING QUICKLY – BATTERY POWER IS BELOW 15%. • BLUE LED IS OFF OR BLINKING SLOWLY – THE DEVICE HAS BEEN FULLY CHARGED OR NOT CHARGING.
- Page 7 WHAT DO THE LIGHTS MEAN? GSM GREEN LED • GREEN LED LIGHT SHOWS A SINGLE FLASH RAPIDLY EVERY 3 SECONDS – THE EV-07S IS CONNECTED TO THE GSM NETWORK. • GREEN LED SHOWS A DOUBLE FLASH RAPIDLY EVERY 3 SECONDS – THE DEVICE IS REGISTERED TO THE GPRS NETWORK.
- Page 8 EV-07S HAS A GPS POSITIONING FIX. • BLUE LED SHOWS A SLOW FLASH EVERY 3 SECONDS (EVERY 1 SECOND ON AND 3 SECONDS OFF) – THE EV-07S HAS NO GPS FIX. • BLUE LED OFF (WHEN NOT CHARGING) – THE GPS CHIP IS SLEEPING.
- Page 9 TO SET DEVICE USER NAME TEXT name1, FOLLOWED BY THE NAME YOU WOULD LIKE TO SET. • FOR EXAMPLE - YOU HAVE GIVEN THE EV-07S TO YOUR MUM AS SHE LIVES ON HER OWN. SEND A TEXT MESSAGE TO THE EV-07S DEVICE WITH name1,mum AND HIT SEND.
- Page 10 WITH NO SPACES AND SELECT SEND MESSAGE. YOU WILL THEN RECEIVE A TEXT REPLY STATING SET MOBILE NUMBER 1 OK! • TO DELETE THE PRIMARY NUMBER, YOU CAN SEND A TEXT MESSAGE TO YOUR EV-07S BY TEXTING A0. • A1, PLUS PHONE NUMBER TO ADD AND A0 TO DELETE.
- Page 11 EV-07S CONFIGURATION AND OPERATION BY SMS • THE SAME PROCESS IS CARRIED OUT FOR THE REMAINING AUTHERIZED CONTACTS BY CHANGING THE PRE-FIX AS FOLLOWS. • B1,0161222888 FOR CONTACT 2. • C1,0161222888 FOR CONTACT 3. • REMEMBER YOU CAN DELETE ANY OF THE AUTHERIZED...
- Page 12 YOUR EV-07S IS NOW SET 1 HOUR FORWARD, GIVING THE CORRECT TIME WHEN IN PARIS. • ON YOUR RETURN YOU WISH TO RETURN YOUR EV-07S BACK TO UK TIME. THIS CAN BE DONE BY SENDING A TEXT MESSAGE CONTAINING THE FOLLOWING – TZ-01 •...
- Page 13 REQUESTING A CURRENT LOCATION FROM THE EV-07S PERSONAL GPS TRACKER • IF YOU WOULD LIKE TO FIND THE LOCATION OF THE EV-07S PERSONAL GPS TRACKING DEVICE AT ANYTIME. • SEND YOUR EV-07S A TEXT MESSAGE CONTAINING THE FOLLOWING REQUEST. •...
- Page 14 REQUESTING A CURRENT LOCATION FROM THE EV-07S PERSONAL GPS TRACKER • IF YOU WOULD LIKE ADDRESS DETAILS OF WHERE THE EV-07S USER IS, TEXT THE FOLLOWING TO THE EV-07S DEVICE. • • THIS FUNCTION NEEDS GPRS FUNCTION SUPPORT. • THE EV-07S WILL REPLY...
- Page 15 EV-07S LOW BATTERY ALARM • WHEN THE EV-07S BATTERY IS BELOW 15%, IT WILL SEND ALL THE PRE-SET CONTACT NUMBERS A TEXT MESSAGE STATING THAT THE BATTERY IS GETTING LOW. • “BAT:LOW!” • IF THE BATTERY FALLS BELOW 15%THE BLUE LIGHT WILL FLASH RAPIDLY TO WARN THE USER TO CHARGE THE DEVICE AS SOON AS POSSIBLE.
- Page 16 SETTING THE EV-07S PIN LOCK • IF YOU WOULD LIKE TO RESTRICT THE ABLILITY TO CHANGE THE SETTINGS BY OTHER USERS YOU WILL NEED TO SEND A TEXT MESSAGE TO THE EV-07S CONTAINING THE FOLLOWING INFORMATION. • 123456LOCK • AFTER SENDING THIS COMMAND YOU WILL NEED TO INCLUDE THE PIN CODE INFRONT OF EVERY COMMAND EXCEPT REBOOT AND RESET.
- Page 17 YOUR PIN CODE HAS NOW BEEN CHANGED TO 666666. DON’T FORGET TO WRITE DOWN YOUR CHOSSEN PIN CODE AS THIS WILL NOT BE REMOVED WHEN CHANGING SIM CARDS. • NEW PIN CODES MUST BE 6 DIGIT’S OR THE EV-07S WILL NOT RECOGNISE THE PIN CONE.
- Page 18 SETTING THE EV-07S GEO-FENCE ALARM • THE EV-07S HAS THE ADILITY TO SET AN AREA THAT THE USER SHOULD STAY WITHIN. BY SENDING A TEXT MESSAGE TO THE EV-07S GPS DEVICE AND AREA CAN BE SET FROM THE USERS CURRENT LOCATION. •...
- Page 19 IF THE USER COMES IN TO OR GOES OUT OF THE PRE-SET AREA, A TEXT MESSAGE ALERT WILL BE SENT TO ALL CONTACTS AND WILL CONTAIN A GOOGLE MAP LINK . • TO TURN THIS FUNCTION OFF SIMPLY TEXT YOUR EV-07S THE FOLLOWING MESSAGE. • G1,0 –...
- Page 20 SETTING THE EV-07S MOVEMENT ALERTS • TO SET THE MOVEMENT ALERT, SIMPLY TEXT THE EV-07S THE FOLLOWING COMMAND. • M1,100M/KM • = TURNS ON THE MOVEMENT ALERT FUNCTION. • = THE DISTACE IN METERS WITH THE MINIMUM SETTABLE BEING 100M •...
- Page 21 SPEED1, + SPEED • FOR EXAMPLE YOUR ASSIGNED EV-07S USER IS A LONE WORKER AND THEY TRAVEL TO AND FROM DIFFERENT PLACES OF WORK. YOU WOULD LIKE TO MAKE SURE THEY ARE ADHEARING TO THE ROAD SAFETY LAWS AND DO NOT MISS USE THEIR COMPANY VEHICLE, YOU CAN SET A SPEED AT WHICH THE USER SHOULD NOT EXEED.
- Page 22 THE EV-07S LISTEN-IN FUNCTION • IT IS POSSIBLE TO MAKE A SILENT CALL TO THE EV-07S GPS TRACKER. THE EV-07S WILL ANSWER THE CALL AUTOMATICALLY, ALLOWING THE CALLER TO HERE WHAT IS HAPPENING AROUND THE TRACKER. • THERE IS NO VOICE INDICATION THAT THE CALL IS IN PROGRESS.
- Page 23 THE EV-07S FALL DETECTION FUNCTION • IF THE USER OF THE EV-07S IS A LONE WORKER OR A PERSON THAT SPENDS EXTENDED PERIODS OF TIME ON THEIR OWN. • A SIMPLE FALL COULD PROGRESS VERY QUICKLY IN TO A DEVASTATING RESULT IF GONE UN-NOTICED.
- Page 24 THESE ARE JUST SOME OF THE FUNCTION SETTINGS FOR THE EV-07S FOR MORE SETTINGS PLEASE REFER TO YOUR EV-07S USER MANUAL...
- Page 25 IF YOU FOUND OUR VIDEO HELPFUL, PLEASE HIT THE LIKE BUTTON AND DON’T FORGET TO SUBCRIBE TO OUR CHANEL TO GET NOTIFICATIONS WHEN WE UPLOAD A NEW VIDEO. LINKS ARE IN THE DECRIPTION AND PLEASE WRITE YOUR COMMENTS IN THE SECTION BELOW. THANKS FOR WATCHING ASTA GPS TRACKERS...
