003 – ASSEMBLING BASE FRAME

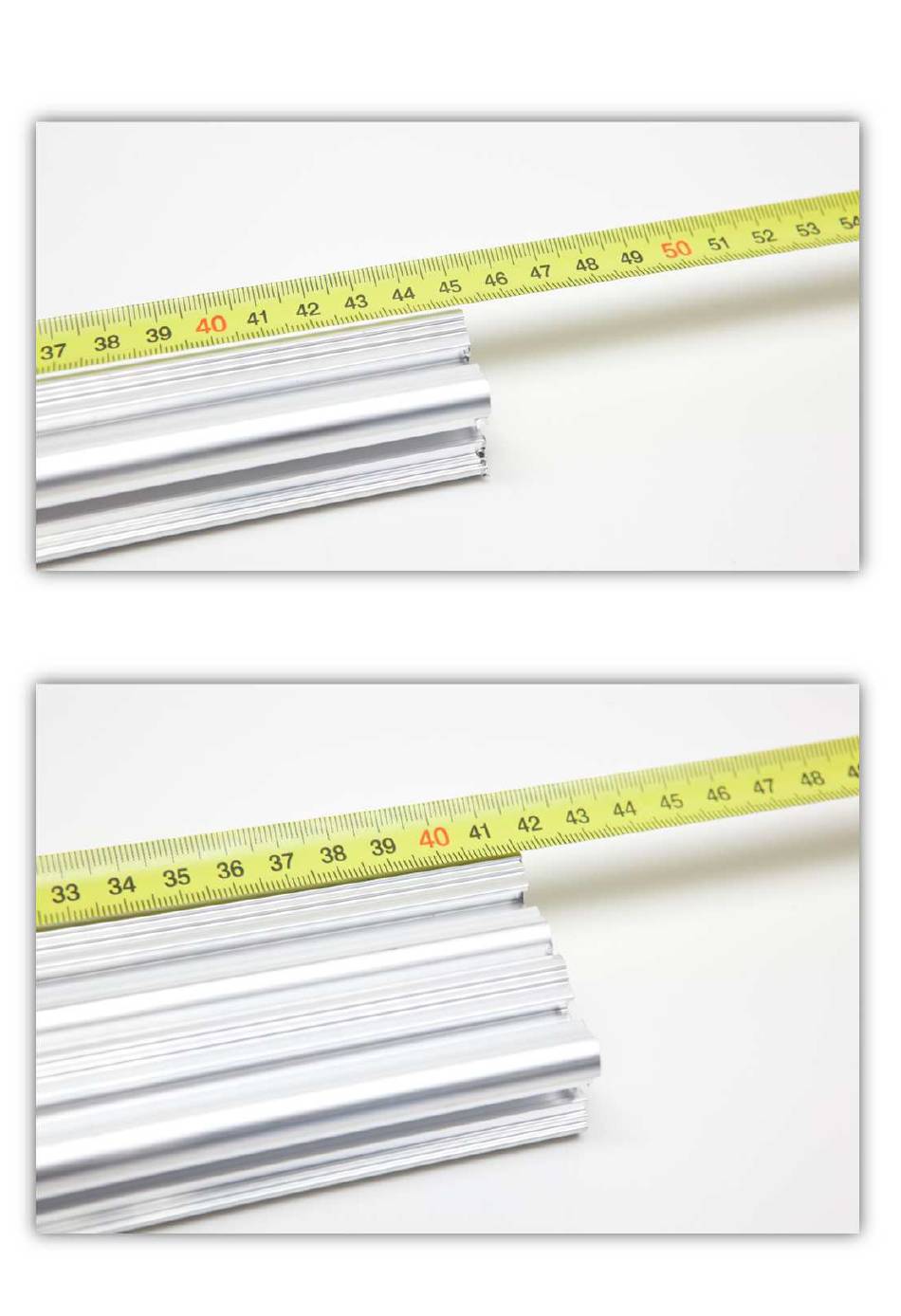

Take one ALUMINIUM PROFILE of 450 mm (17.7") out of the box.
Take two ALUMINIUM PROFILES of 416 mm (16.4") out of the box.
Take the bag labelled with 14 out of the box. You should have 14 ANGULAR MOUNTS:
