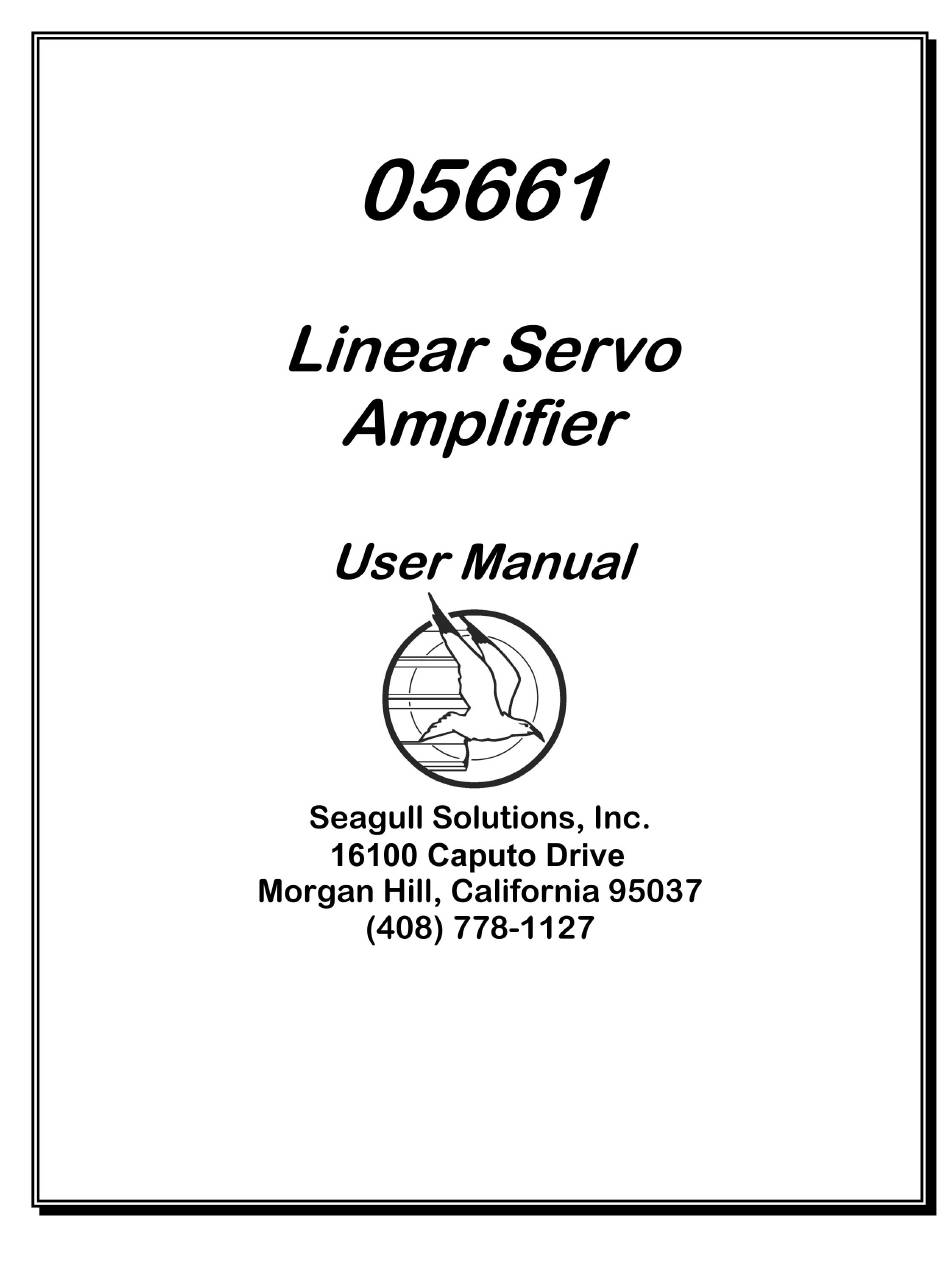

Seagull Solutions 05661 User Manual

Linear servo amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 05661 and is the answer not in the manual?

Questions and answers

Summary of Contents for Seagull Solutions 05661

  • Page 2 REQUESTING ASSISTANCE If you have any difficulties with the 05661, please let us know by calling us at (408) 778-1127, Writing to us at the address shown on the cover, or emailing us at “info@seagullsolutions.net”. When reporting a problem, Please have the serial number of your unit available and have a record of all circumstances and symptoms.

  • Page 3: Table Of Contents

    Seagull Solutions, Inc. 05661 Linear Amplifier Table of Contents TABLE OF CONTENTS ..........................1 ABOUT THIS MANUAL ..........................3 MANUAL CONVENTIONS ........................3 SAFETY CAUTIONS ...........................4 SECTION 1 GENERAL INFORMATION........5 GENERAL ............................5 INTRODUCTION..........................5 OVERVIEW.............................5 STANDARD FEATURES .......................6 SUB-ASSEMBLIES ........................6 1.5.1 FRONT PANEL ASSEMBLY......................6 1.5.2 POWER AMPLIFIER ASSEMBLY....................7...
  • Page 4 Seagull Solutions, Inc. 05661 Linear Amplifier POWER-UP SEQUENCE......................15 4.2.1 APPLYING AIR ..........................15 4.2.2 APPLYING POWER ........................16 BASIC OPERATING MODES......................16 4.3.1 LOCAL MODE..........................16 4.3.2 REMOTE MODE..........................17 4.3.3 GPIB ADDRESS SELECTION ......................17 REAR PANEL CONNECTIONS ....................18 ENCODER COMMUTATION......................18 SAFETY INTERLOCKS .......................20 FREQUENCY REFERENCE ......................20 SECTION 5 COMMAND SET LISTING ............E...

  • Page 5: About This Manual

    About This Manual This manual is divided into the following sections: SECTION 1 - GENERAL INFORMATION Contains a brief overview of the 05661, its operating modes, and features. SECTION 2 - SPECIFICATIONS Includes the power and operating specifications for all modules.

  • Page 6: Safety Cautions

    GROUNDING The 05661 is internally grounded through the power cord to Earth Ground. However, any spindle connected to the Linear Amplifier must also be grounded. If this equipment is field installed, the installation instructions must be followed. Use the power cords and cables provided with the equipment;...

  • Page 7: General Information

    Operation of the 05661 can be controlled by a host computer via a GPIB or a RS-232 communication interface (Factory Option). If a host computer is not available or necessary, the 05661 can be completely controlled by its front panel controls without any degradation of its performance.

  • Page 8: Standard Features

    Located on the front panel assembly is the LCD display controlled by the front panel CPU. The front panel assembly contains all the intelligence for the 05661 to operate in Local Mode. The front panel parses the GPIB communication and feeds it to the Main Electronics Assembly, where the Motor Controller CPU performs the task.

  • Page 9: Power Amplifier Assembly

    OPERATING MODES The 05661 Linear Servo Amplifier has two major modes of operation: Local and Remote. Local Mode is usually used for maintenance, adjustments, and troubleshooting. Remote Mode is the normal operating mode when controlled by a host computer.

  • Page 10: Remote Mode

    05661 Linear Amplifier 1.6.2 REMOTE MODE Remote Mode is used when the 05661 is under the direction of a host computer. Parameters such as spindle RPM, direction, disk clamping, and run/stop commands are sent to the 05661 from a host computer via a GPIB or RS-232 communication interface.

  • Page 11: Specifications

    Seagull Solutions, Inc. 05661 Linear Amplifier Section 2 Specifications GENERAL Contained within this section are specifications for the 05661. Specifications included are power requirements and physical dimensions. SYSTEM REQUIREMENTS The 05661 requires the following AC input: AC INPUT POWER REQUIREMENTS (FACTORY SET)

  • Page 12: Motor Control Specifications

    Seagull Solutions, Inc. 05661 Linear Amplifier MOTOR CONTROL SPECIFICATIONS Speed Stability of .001% or better over full range (stock configuration) .0001% or better over full range (custom factory component matching) Programmable from 10 to 18000 RPM Encoder Commutation Local or Remote Operation...

  • Page 13: Installation

    Seagull Solutions, Inc. 05661 Linear Amplifier Section 3 Installation This section describes how to install a 05661 Linear Servo Amplifier and how to verify its operation. DISCLAIMER This installation section is not a step-by-step installation procedure. Considerable experience is required of personnel installing the equipment. It is suggested that the installer be trained on the 05661 or have experience with similar test equipment.

  • Page 14: Rack Installation

    Input air pressure must not exceed 120 psi. ELECTRICAL CONNECTIONS AC power to the 05661 is determined by the factory. The AC power cable must have a ground wire and must connect the 05661 to the plant AC ground. Before connecting the AC power cable to the 05661, ensure that the power switch on the front panel is off.

  • Page 15: Spindle Connections

    3. Plug in the encoder from the spindle to the "Encoder" connector located on the rear panel of the 05661. APPLYING POWER Before AC power is connected to the 05661's input receptacle, ensure that the AC power switch on the front panel is OFF. INITIAL CHECKOUT This brief checkout only addresses Local Mode operation;...
  • Page 16 Seagull Solutions, Inc. 05661 Linear Amplifier 6. Press the “Enter” button to stop the spindle. 7. Use the “up” and “down” arrow button to select the clamp function. 8. Press the “Enter” button to toggle the state of the clamp.

  • Page 17: Operation

    NOTE Should any of the 05661's assemblies not operate as stated, call Seagull Solutions's Field Services Division. POWER-UP SEQUENCE Startup Sequence for the 05661 requires two steps: 1.

  • Page 18: Applying Power

    NOTE On power-up of the 05661, the first time a RUN command is issued, the spindle will go through the auto-initialization routine. This ensures proper motor commutation. BASIC OPERATING MODES The 05661 has two basic modes of operation: Local and Remote.

  • Page 19: Remote Mode

    RPM. 4.3.2 REMOTE MODE Remote Mode is used when the 05661 is under the direction of a host computer. This is usually the case in media testers. Parameters such as spindle RPM, revolution direction, disk clamping, and spindle run/stop commands are sent to the controller from a host computer.

  • Page 20: Rear Panel Connections

    Seagull Solutions, Inc. 05661 Linear Amplifier REAR PANEL CONNECTIONS A rear panel view is provided to show location of the rear panel connectors, inputs, and outputs. Figure 4-2 Rear Panel Connections ENCODER COMMUTATION An encoder is installed below the spindle housing and is directly coupled to the spindle's shaft.
  • Page 21 Seagull Solutions, Inc. 05661 Linear Amplifier Improper alignment of the spindle encoder can damage the 05661's power amplifier circuitry. Page 19 10/28/97...

  • Page 22: Safety Interlocks

    10 and an acceleration of 10000 from either the front panel or the host computer. The 05661 will then track the external reference after the user issues a run command. The 05661 will use maximum acceleration in tracking the reference.
  • Page 23 Seagull Solutions, Inc. 05661 Linear Amplifier 05661 COMMAND SET Command Definition acc:XXXXX Defines the acceleration rate in RPM/sec. XXXXX is a 5-digit integer from 00001 to 10000. 00000 is invalid, and will default to 01000. Communication Response: NONE Deactivates the spindle brake solenoid, if the spindle is so brakeoff equipped.
  • Page 24 Seagull Solutions, Inc. 05661 Linear Amplifier Initializes the spindle motor if spindle has not been run before, enables the spindle, and commands the spindle to run at the last commanded speed, acceleration, and direction. *NOTE: If no direction, speed, or acceleration has been commanded, spindle will attempt to maintain zero RPM.
  • Page 25 Seagull Solutions, Inc. 05661 Linear Amplifier Queries the controllers identification data. Communication Response: Manufacturer Data, Model Number, and software revision of the controller. *NOTE: 9 bytes returned. Queries the ‘in position’ status. inpos? Communication Response: ‘YES’ if spindle is holding requested position, ‘NO’...
  • Page 26 Seagull Solutions, Inc. 05661 Linear Amplifier Requests the last commanded speed. spd? Communication Response: XXXXX, where XXXXX is an integer from 00001 to 18000. Requests the controllers status information. stat? Communication Response: Returns the status of the controller as two 8-bit binary...

  • Page 27: Index

    Seagull Solutions, Inc. 05661 Linear Amplifier Index GPIB.............5, 6, 8, 10 Grounding............4 AC Input Power Requirements......9 Address Seagull Solutions's Field Services Division .11 ID? ..............8 Air Connections..........12 Initial Checkout ..........13 Air Supply Requirements ........9 Inspection ............11 Applying Power..........13 Installation ............11 Auto-initialization routine ......14, 16...
  • Page 28 Seagull Solutions, Inc. 05661 Linear Amplifier Page 26 10/28/97...
