Summary of Contents for KAM Simple Precision Weight Scale

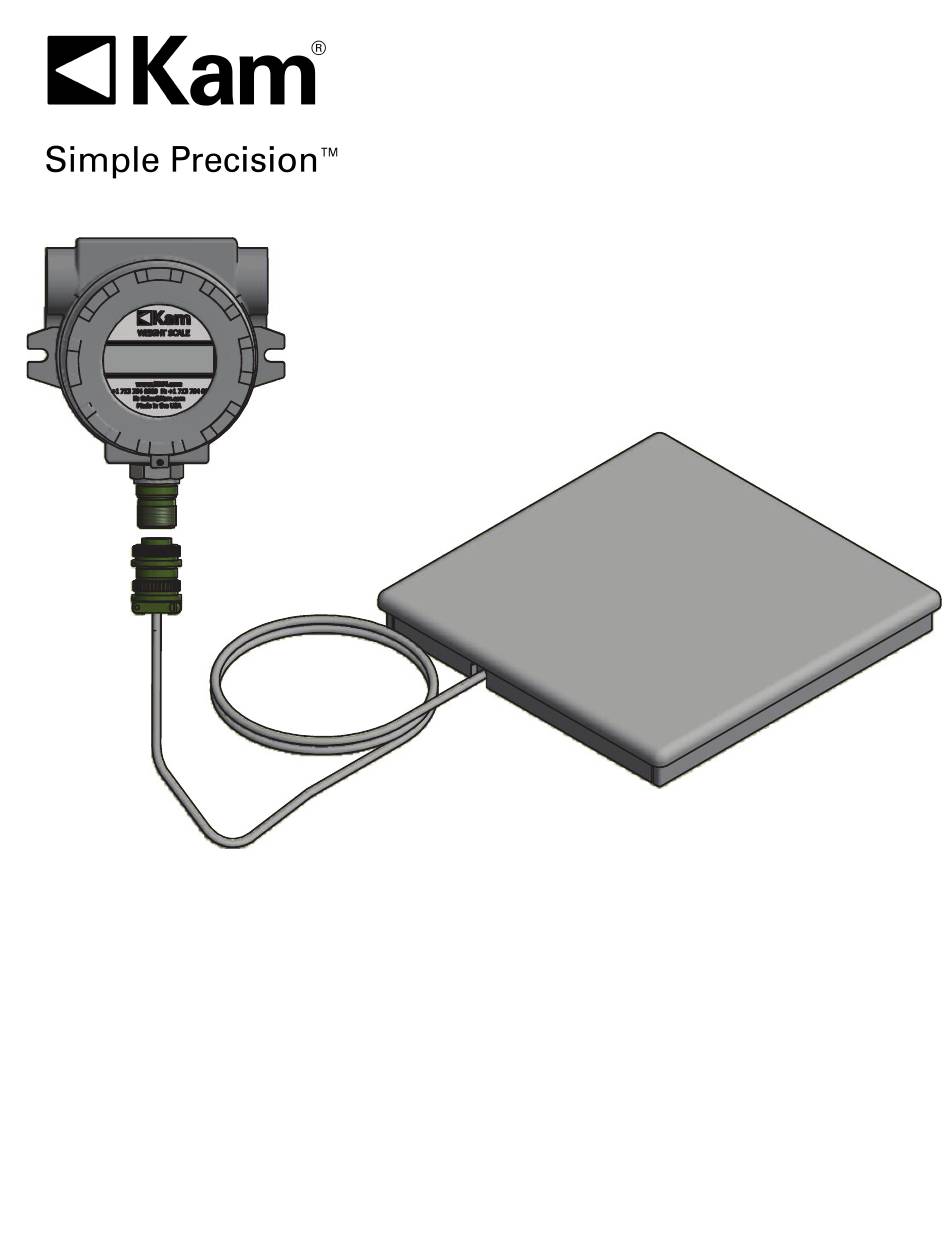

- Page 1 Weight Scale ® API COMPLIANT User Manual WSMANUAL -0114 TEL +1 713 784 0000 FAX +1 713 784 0001 KAM CONTROLS, INC. Email Sales@Kam.com 3939 Ann Arbor Drive Houston, Texas 77063 USA An ISO 9001 certified company www.KAM.com...
-
Page 2: Table Of Contents
SECTION TITLE PAGE TA B L E O F C O N T E N T S Introduction Available Models Additional Specifications Dimensional Drawings Installation • Placement • Wiring Operations • Connecting the RS232 • Controller Software Menus 10-11 KAM CONTROLS, INC. reserves the right to make changes to this document without notice. WSMANUAL 0114... -
Page 3: Introduction
I N T R O D U C T I O N The KAM Weight Scale is designed for integration with the KAM CSS Complete Sampling System and is used ® ® to verify sample volume in KAM SR Sample Receivers per API Chapter 8.2, ASTM 4177 and ISO 3171. Weight ® Scale units (generally 2) are placed inside a KAM SRH Sample Receiver Housing, and the KAM SR Sample ® ® Receivers are placed on top of the Weight Scale platforms. Each Weight Scale unit communicates with the KAM SC Sampler Controller via 4-20 mA. The 4-20 mA signal directly correlates to the current weight of the Sample Receiver and its volumetric equivalent. In this way, op- erators can remotely monitor for accumulated sample volume, and automatically switch to a second Sample Receiver for continued sample collection once the first receiver is full. - Page 4 MODELS AND SPECIFICATIONS 0-60 lbs (0-27 KG) Standard for use with a 3 gallon sample receiver Resolution: .02 lb (9 grams) Dimensions: 9.25"W x 9.25"D x 1.25"H (235 MM x 235 MM x 32 MM) Maximum weight: Recommended no more than 66 lbs (30 KG), max overload 90 lbs (41 KG) 0-100 lbs (0-27 KG) Standard for use with a 3 or 5 gallon sample receiver Resolution: .02 lb (9 grams) resolution...
- Page 5 MODELS AND SPECIFICATIONS Continued 0-300 lbs (0-27 KG) Standard for use with a 3 or 5 gallon sample receiver Resolution: .1 lb (45 grams) resolution Dimensions: 14" W x 14"D x 1.25"H (406 MM x 305M M x 32 MM) Maximum weight: Recommended no more than 330 lbs (50 KG), max overload 450 lbs (68 KG) FIG.
-
Page 6: Additional Specifications
MODELS AND SPECIFICATIONS Continued FIG. 2-3 Weight Scale Controller Dimensions Mounting 5.25 Ears 3/4" FMNPT .300 .300 Weight = 4 Lbs ADDITIONAL SPECIFICATIONS Material: Stainless steel and Aluminum Supply Voltage: 10–24 VDC Signal Output: 4–20 mA Temperature Range: 0–185°F (-18°– 85°C) Sensitivity: 2 mV/Volts ±10% Controller Dimensions: 5.1"W x 4.5"D x 6.6"H (130MM x 114MM x 168MM) Controller Weight: 4 lbs (1.8 KG) Weight Scale is intrinsically safe. Weight Scale Controller is housed in an explosion-proof enclosure. -
Page 7: Installation
I N S TA L L AT I O N TYPICAL SAMPLING SYSTEM INSTALLATION FIG. 3-1 Field Control Room Flowmeter Supply Flow KAM SC Sample 4-way Controller Solenoid Valve Sample Discharge KAM IAS Power Isokinetic Source Automatic Sampler 3-way Valve... -
Page 8: Wiring
I N S TA L L AT I O N C O N T I N U E D 1. Place Weight Scale(s) in Sample Receiver Housing FIG. 3-2 and adjust feet by screwing them in or out (Fig. 3-2) to ensure that the scale is complete stable and does not rock. 2. Mount Weight Scale Controller(s) within 6' – 8' (2 – 2.4 M) of housing. 3. Connect the Scale and the Scale Controller with Adjustable feet the supplied 10' wire using quick connects. WARNING: The KAM Weight Scale has mechanical stops to prevent damage from overweight receivers. HOWEVER, placing receivers above the maximum weight or slamming receivers down onto scale will result in damage to the scale. WIRING 1. Remove cover from Weight Scale Controller by first FIG. 3-3 removing set screw on the bottom of cover (see Fig. 3.3) and then turning cover counter clockwise. Set screw 2. Remove LCD display plate by first removing the (3) -
Page 9: Wiring
I N S TA L L AT I O N C O N T I N U E D WIRING continued FIG. 3-5 4. Insert wiring through either of the ¾" NPT open- ings. See Fig. 3.5. ¾" NPT 5. Connect the 12 or 24V + wire to the "V+" terminal. Then connect the negative wire to the "V- terminal. 6. Connect 4-20mA output wires to "Loop+" and "Loop-." 7 . -
Page 10: Operations
3. Connect the other end of serial cable to computer serial port or serial port converter. NOTE: In order to change settings in the control- ler, user must first select the communications port. While some menu options can be used without first selecting the port, in most cases it is simpler to do FIG. 4-2 so prior to using the software. 4. Open WSC software on computer. The initial screen will display the KAM logo. 5. Go to COMM on the top menu bar and select PARAMETERS. 6. A pop-up window titled "Serial Port Configuration: will appear. See Fig. 4.2. 7 . Under "Com port" select the appropriate port for your computer and click OK. You do not need to do anything with the other settings. Pop-up window will disappear. -
Page 11: Controller Software Menus
O P E R AT I O N c o n t i n u e d CONTROLLER SOFTWARE MENUS File>>Enter Password - A pop-up window will appear FIG. 4-4 for password entry. Once the password has been cor- rectly entered, additional data and inputs will appear in the main screen. See Fig. 4.4. -
Page 12: Controller Software Menus
O P E R AT I O N C O N T I N U E D CONTROLLER SOFTWARE MENUS Continued FIG. 4-7 Reporting>>Clear PC Logs – Removes all logs of the transmitted and received messages. As the program captures this data at all times, these files can be large and consume disk space. Reporting>>Select Logging Directory – Allows user to select a directory to save the log files creat- ed by the program. The default is “C:\ProgramData\ Kam\WSC\LOGS”. See Fig. 4-7. Reporting>>Generate Receive log – Generates a disk file containing the PC time and date, the weight, and the raw ADC counts. The only way to stop generation of this file is to quit the program. Quit>>Exit – Quits program Quit>>About – Shows software name, version, etc. WSMANUAL 0114...
