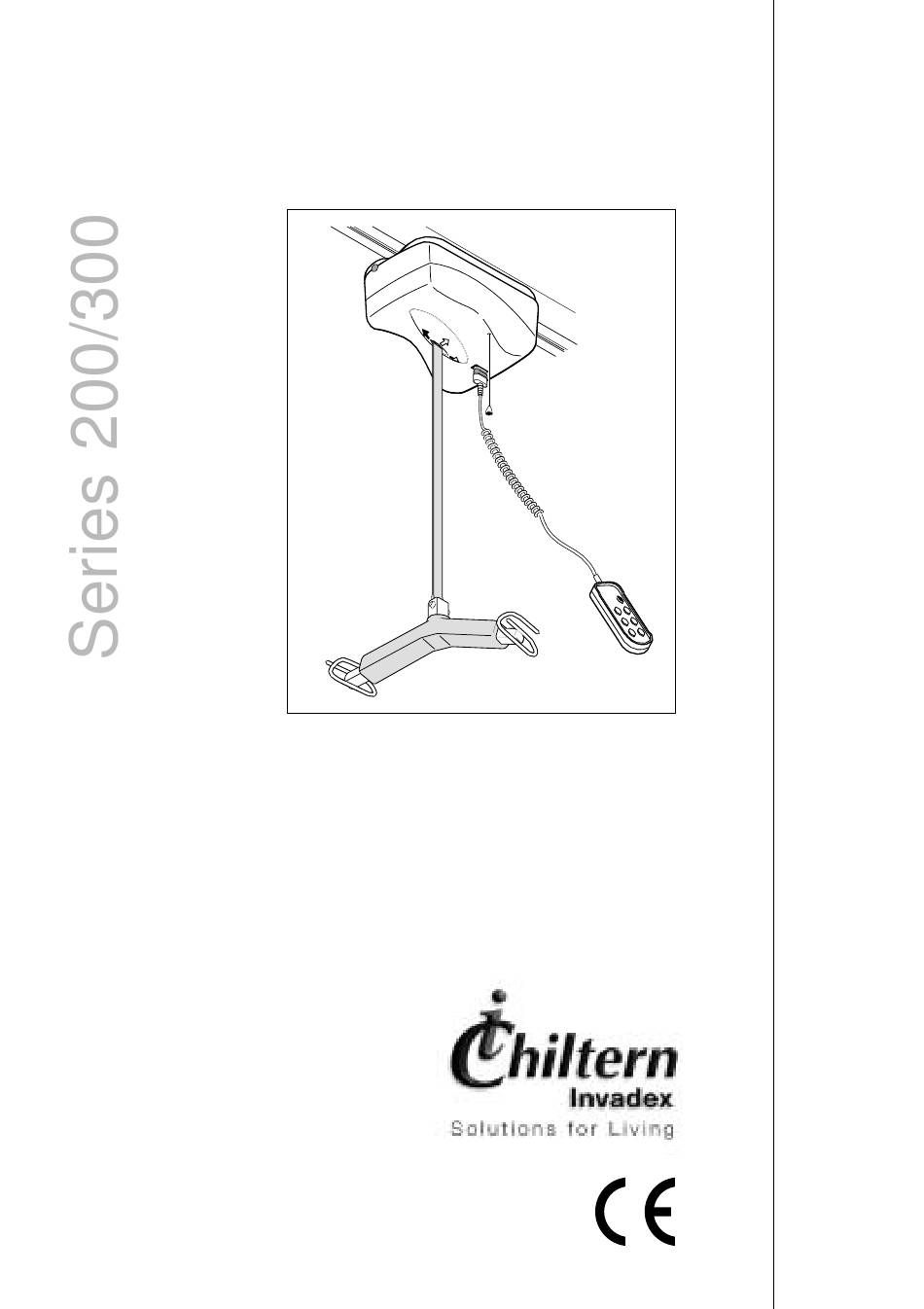

- Page 1 Overhead Hoists user guide Wispa 200/300 Series...
-
Page 2: Table Of Contents
User Guide Contents Things to consider before using the Overhead Hoist ..........2 Using the controls ........... 4 Emergency Lowering Cord ......5 Charging the Hoist ........... 6 Servicing and maintenance ......7 Parts ..............7 Troubleshooting ..........8 Hoist Specification .......... 9 Warranty ............ -
Page 3: Overhead Hoist
The Wispa hoist has been designed to lift and transfer a less able person with the help of a carer. It should be used with a Wispa sling or other lifting accessories from the Chiltern Invadex range, as assessed by a trained person. - Page 4 Chiltern Invadex. • Do not touch any of the moving parts in the hoist unit or in the track. Contact Chiltern Invadex for assistance. • Take care when attaching or removing a sling as a swinging carry bar could cause injury.
-
Page 5: Using The Controls
Chiltern Invadex Overhead Hoist Using the Controls Emergency stop reset (not seen from below) Indication light Hand Control Socket Lifting Tape Emergency stop/ Emergency lowering 7 Button Hand 3 Button Hand Controls Controls Carry Bar (Wispa Hoists) 5 Button Hand Controls... -
Page 6: Emergency Lowering Cord
User Guide Five Button Hand Control The five button hand control has the same function buttons as the three button hand control with the addition of a traversing function. The traversing function is controlled by the red buttons, on the handset. The buttons are colour coded with a solid red arrow and an outline red arrow. -
Page 7: Charging The Hoist
Chiltern Invadex Overhead Hoist Emergency Lowering In the unlikely event of a power failure or hoist malfunction the user may be lowered using the emergency lowering cord. To operate, pull the cord fully and hold. To reset follow the instructions as for emergency stop. -
Page 8: Servicing And Maintenance
Further details can be obtained from any Chiltern Invadex Office, shown on the back of this booklet. Chiltern Invadex and its Authorised Dealers are able to carry out all aspects of servicing and maintenance work. -
Page 9: Troubleshooting
Chiltern Invadex Overhead Hoist Troubleshooting symptom suggested cause solution Hoist lacking power Battery power Batteries need is low charging Hoist makes beeping Refer to Refer to sound Appendix A below Appendix A below Light on hoist No power Ensure that the power is... -
Page 10: Hoist Specification
**This is adjustable and should be set by the installer to meet the requirements of the user. Typically the carry bar would stop about 300mm from the floor. CE MARK The Chiltern Invadex Wispa Hoist carries the CE mark and complies with EC Directives: Medical Device Directive(93/42/EEC) EMC Directive (89/336/EEC) -
Page 11: Warranty
Chiltern Invadex Overhead Hoist Warranty Your Chiltern Invadex Overhead Hoist carries a 12 month warranty from the date of purchase, subject to the following :- 1. Should you experience any problems with our workmanship or materials within the first 12 months period please contact your point of purchase. -
Page 12: Hoist Service Record
User Guide Wispa Hoist Service Record Serviced By (company) ..................Telephone no..................Engineers training cert. no. Signature ....................Date: ......Load Tested To: ......Kgs Comments........................................Serviced By (company) ..................Telephone no..................Engineers training cert. no. Signature ....................... Date: ...... - Page 13 Chiltern Invadex Overhead Hoist Wispa Hoist Service Record Serviced By (company) ..................Telephone no..................Engineers training cert. no. Signature ....................Date: ......Load Tested To: ......Kgs Comments........................................Serviced By (company) ..................Telephone no..................Engineers training cert. no. Signature ..............
- Page 14 Models covered Please fill in the information below for future reference 200/300 series Dealers Name ................Address ................................... Post Code......... Telephone ............Your Serial Number is ........Date of purchase ......
- Page 15 FM 21085 Copyright © Chiltern Invadex Ltd. The design of the product shown in this User Guide is vested in Chiltern Invadex Ltd and should not be copied or reproduced in anyway whatsoever without the express permission in writing of Chiltern Invadex Ltd.
