Southco H3-EM-66-100 Operating Instructions

Package Contents


H3-EM-66-x00 Electronic Swinghandle
with RFID Reader (qty1)

EM-0-45827 M3x25 POZIDRIV

EM-0-47151 M3x14 POZIDRIV

EM-0-45825 Rotation Limiter (qty 1)

E5-C-04 Pawl Screw (qty 1)

M3-0-24943-11 Lock Plug Screw (qty 1) (optional)

EM-0-45826 Top Mounting Bracket (qty 1)

EM-0-45822 Bottom Mounting Bracket (qty 1)

Operating Instructions (qty 1)

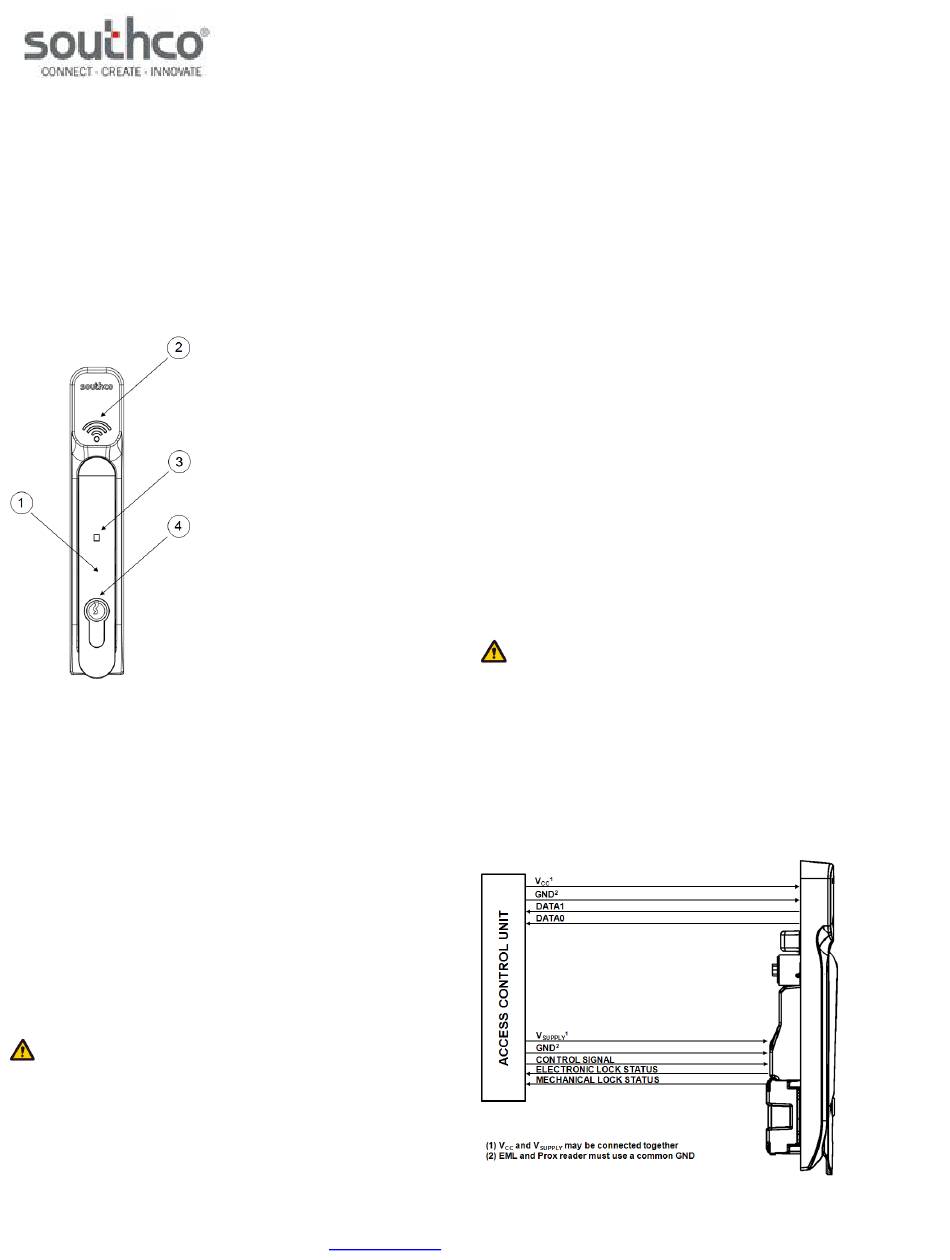

H3-EM-66-x00 Electronic Swinghandle with RFID Reader
1. Handle
2. RFID Reader
3. Tri-Color Status LED
4. Lock Plug (optional)

Features


Installed 13.56MHz RFID reader module with Wiegand data
output

Compatible with 13.56Mhz RFID cards with 4, 7, or 8byte Unique
Identifiers (UID)

Remote lock and unlock capability

Single or multi-point lock actuation

Momentary or continuous lock actuation

Tri-color LED (blue/magenta/red) to indicate lock and handle
status

DIN lock manual override

Accommodates both left and right doors

For indoor use only
WARNING: The H3-EM-66-000 is shipped without a lockplug. This
product must be paired with a Southco-approved lock to function properly.
Use with an unapproved lockplug voids the product warranty.
Contact Southco for additional support.
J-H3-EM-66-100-M_revB
H3-EM-66-100 Electronic Swinghandle
Operating Instructions
®
Mounting Screws (qty 4)
®
Mounting Screw (qty 1)
visit www.southco.com

Specifications

Actuator Module
Supply Voltage (V ): 12VDC to 24VDC (NOTE: Status LED will blink
SUPPLY
Standby Current:
Operating Current:
Stall Current:
Operating Transit Time:
Electronic Unlock Time:
Open Collector Outputs:
RFID Reader Module
Supply Voltage (V ):
CC
Operating Current:
Transmit Frequency:
DATA Signal Voltage:
DATA Pulse Interval Time: 40µs
DATA Signal Delay:
Output Format:

Mounting and Installation

Please refer to Southco trade drawing J-H3-EM-66-100 for mounting and
installation details.
NOTE: Use a #1 POZIDRIV
screws. See Southco trade drawing J-H3-EM-66-100 for additional details.

Wiring Diagrams

The H3-EM-66-x00 contains two separate functional modules: the actuator
module and RFID reader module. The actuator module controls and
monitors the locking function of the swinghandle. The RFID module reads
the contents of a compatible RFID card and converts it to Wiegand format.
These two modules operate independently of each other and require
connection to an access control unit (not provided), as illustrated below,
for the entire product to be fully functional.
for latest version of this document
red if the supply voltage is out of range.)
50mA maximum at 12VDC
200mA maximum at 12VDC (with no external
mechanical load applied to handle
1A maximum (at 12VDC, limited to 2 seconds)
1 second maximum (NOTE: Power must be
present during transit times. If power is
removed while the lock slide is in transit, it will
complete it's cycle when power is
restored.)
3 seconds minimum
Rated for V , 100mA maximum load
SUPPLY
12VDC to 24VDC
60mA maximum (no external devices
attached)
13.56MHz
5VDC
2ms
Reverse Byte Order with Upper and Lower
Parity Bits
®
driver when installing the mounting
