Summary of Contents for Sentinel SPA-100

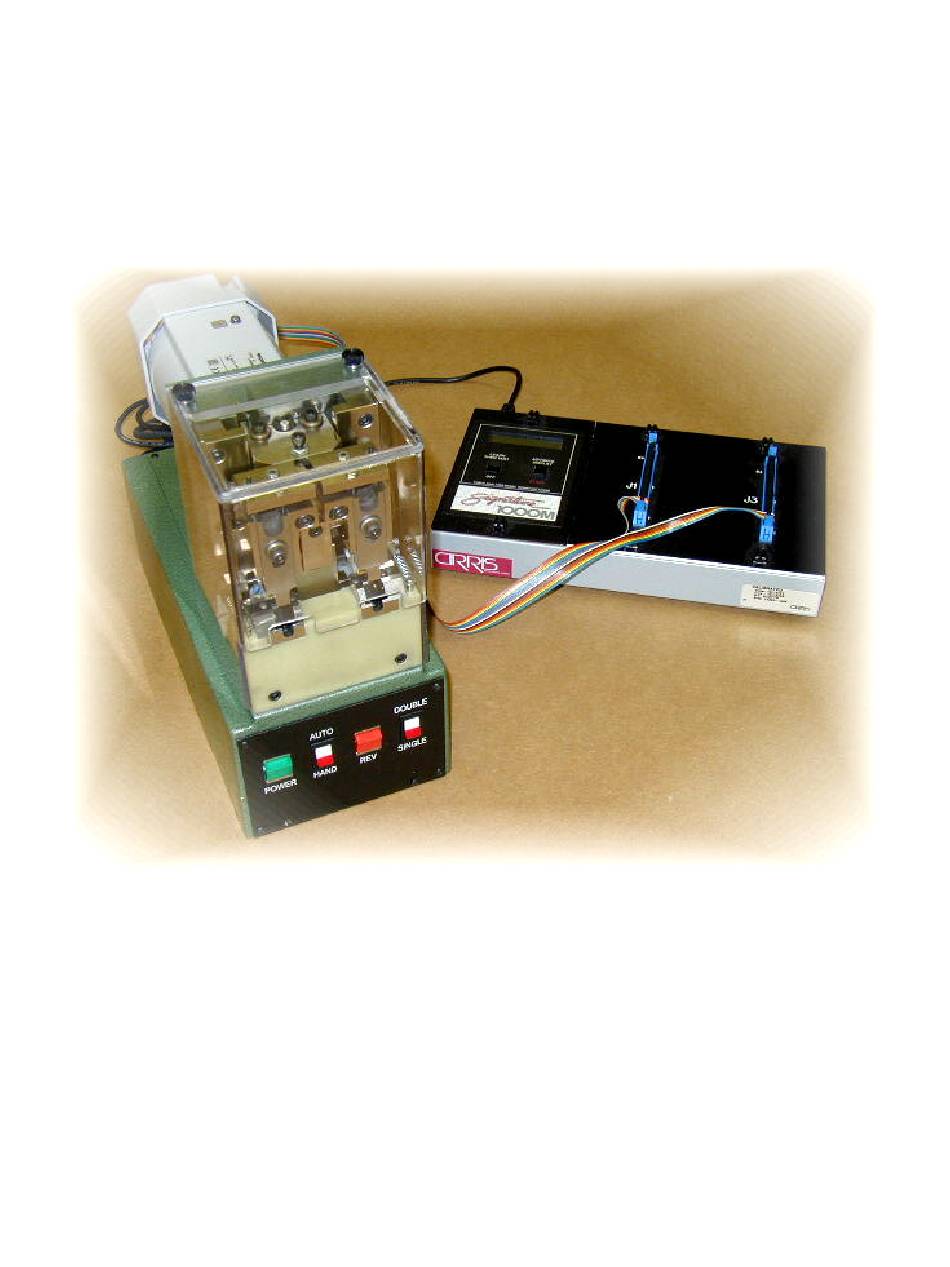

- Page 1 SENTINEL ® CONNECTOR SYSTEMS SPA-100 MODULAR PLUG APPLICATOR Sentinel Connector Systems 1953 Stanton Street York, Pa. 17404 Ph. 717-843-4240...
- Page 2 SENTINEL CONNECTOR SYSTEMS SPA-100 MACHINE MANUAL...
- Page 3 INTRODUCTION Your SPA-100 machine comes to you fully equipped and set up to terminate the style of plug you have requested. The SPA-100 will accommodate those small connector configurations such as 4 position, 4 contacts (4x4); 6 position, 2 contacts (2x6); 6 position, 4 contacts (4x6);...
- Page 4 SPECIFICATIONS FOR SPA-100 MODEL CRIMPING MACHINES Crimping machine portion 1. Usable connectors…………………Recommended Sentinel Connectors 8x8, Cat 5 &Cat 6 (4x4, 2x6, 4x6, 6x6 Consult factory) 2. Function ………………………….. Crimping modular connectors onto cable Power Source ……………………. AC 115v, 60Hz, 5Amp 4.
- Page 5 Both nests are in a fixed position and cannot be adjusted. However, They can be removed and replaced with other nests allowing termination of various Sentinel Connector Systems connectors. 1) The nests are equipped with two ball vilers that seat the connector into the nest securely.
- Page 6 B) Punch holder assembly The punches can also be adjusted as a unit or individually. To move punches as a unit, loosen the two cap screws in the front of the head (item #65, page 18), move the head up or down using the screw on top (item #64 page13) for adjusting, and retighten screws when proper position is located.
-
Page 9: Termination Instructions
Sentinel Connectors modular plugs. This product comes to you in single assemblies with contacts pre-inserted. Please refer to product manual for details on determining which of Sentinel’s plugs will work the best for your application. Any further help may be obtained by contacting Sentinel direct and obtaining the proper guides. -
Page 10: Receiving Inspection
2. Inspect the entire machine for evidence of damage that may have occurred during transit. If in fact the machine shows signs of damage, contact Sentinel Connector Systems, Inc. immediately. 3. Check all components to be certain they are secure. Don’t operate machine until all loose tooling has been tightened down safely. -
Page 24: Troubleshooting Tips
SPA-100 SPARE TOOLING Suggested Spare tooling for the SPA-100 machine is as follows: A. One each machine – 901306 micro switch B. Two each machine - 902300 micro switch C. One pair of contact punches on most used product 8-position 901053 contact driver... -
Page 25: Maintenance For Spa-100
MAINTENANCE FOR SPA-100 Use a soft brush to lightly remove any debris that may build up on machine. Always keep the nest cavity clean. Grease machine at the top, once a month or every 500 hours of service. With the machine off, take a cloth underneath the ram and remove excess grease. - Page 26 Ram adjusting procedure: If the ram is cycling erratically or drifting down where it is difficult to insert a plug into the nest, follow these instructions. When the ram drops down to low after the plugs have been tested and then removed from the nest, the micro switch is a bit out of adjustment.
- Page 27 SPA-100 SPARE PARTS – ELECTRICAL ITEMS ITEM # PART # DESCRIPTION 901306 Micro Switch SS-SGL 902300 Micro Switch (Radio Shack) 902301 Brothers Gear Motor 902302 Mitubishi Controller 902303 Terminal Block 902304 Capacitor 902305 Break Rectifier 902306 Reverse Switch 902307 Power Switch...
- Page 28 SPA-100 SPARE NESTS, ACCESSORIES & HARDWARE ITEM # PART # DESCRIPTION 901112 8/10 Position Nest – Left Hand 901113 8/10 Position Nest – Right Hand 901114 901115 901116 901117 901125 Ball Vilers for Plug Nests 902100 Ground Screws for Plug Nests...
- Page 29 SPA-100 MACHINE COMPONENTS ITEM # PART # DESCRIPTION 902325 Machine Base 902326 Upright Tool Slide 902327 Base Cover 902328 Front Panel 902329 Rear Panel 902330 Bottom Mounting Plate 902331 Spacer Block 902332 Nest Holder 902333 Left Plug Stop 902334 Right Plug Stop...
