Summary of Contents for Kelant Orbeat D100

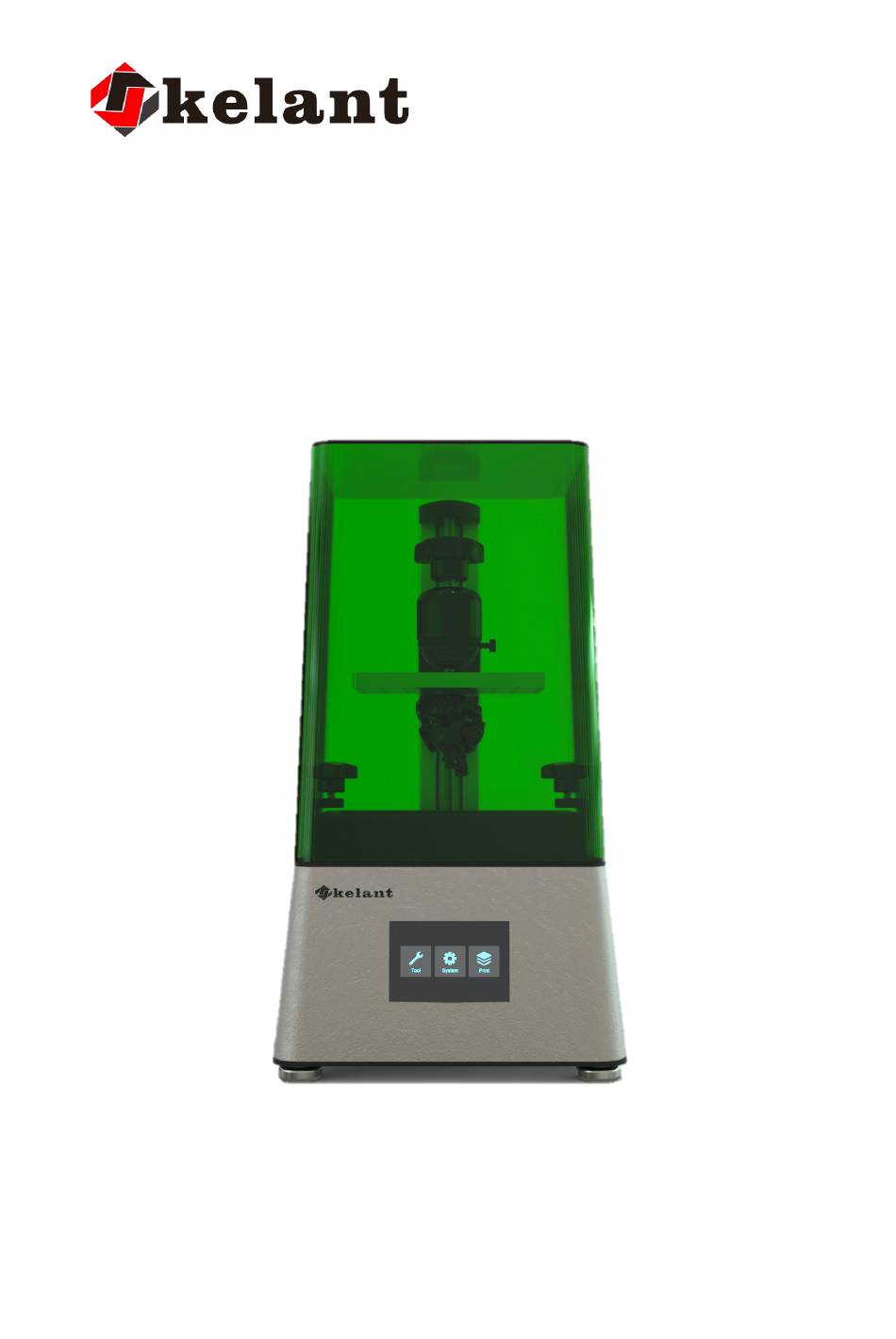

- Page 1 D100 3D PRINTER PRODUCT MANUAL D100-3D printer Instructions Shenzhen Kelandi science and Technology Co., Ltd. Thanks for choosing Kelant Orbeat D100 printer ！...
- Page 2 Please read the user manual carefully. Please visit www.kelandi.cn for firmware and slicing software updates . Email us：Alex-kelant@outlook.com for any supports or suggestions . Copyrighted by “shenzhen Kelandi Technology co.,Ltd”All rights reserved .
-
Page 3: Table Of Contents
Contents 一、Packing List 二、Precautions 三、Technical Specifications 四、Product overview 五、Menu Directory 六、Assembling and leveling instructions 七、Software installation 八、First print Instructions 九、 FAQ and Machine maintenance... - Page 4 1.Packing List Build Plate 1PCS Resin VAT 1PCS 250ml resin 1PCS USB disk 1PCS (for some country ) Orbeat D100 printer 1PCS Gloves 1Pair FEP Film 1PCS Tool kit 1PCS Pliers 1PCS D100-3D pinter Scraper 1PCS Power adapter /power Instructions 1PCS...
- Page 5 2.Precautions Please contact our Customer service first if you have any questions after you received the printer Keep the Kelant Orbeat D100 and its accessories away from Children 。 Use printer at room temperature ,Avoid direct sunlight and dusting environment Kelant Orbeat D100 must NOT be exposed to water and rain.
- Page 6 3. Technical Specification Printing parameters System Kelant Operation 3.5-inch touch screen Slicing software Chitu Connectivity USB Disk Specifications Technique LCD Shadow Masking Light Source UV-LED （ Wavelength 405nm ） XY Resolution 0.047mm （ 1440*2560 ） Z axis accuracy 0.00125mm Suggested layer thickness 0.01~0.2mm Print speed 20mm/h...
-
Page 7: 四、Product Overview
4.Product Overview Cover Operating screen Wire rod Fixed knob Fixed screw Printing platform Rrsin VAT... - Page 8 USB Interface Power interface Power switch...
-
Page 9: 五、Menu Directory
5. Menu Directory Main menu system tool Printing service information Testing Clicking model Moving Z axis Next step Testing... - Page 10 4. Menu directory PRINT MENU Delete Current file Delete Current file Click start printing Click start printing Return to print Menu Return to print Menu Information Turn on / off Sound Return to system System menu Move Z-axis Change Language (Chinese/English ) Official website after...
-
Page 11: 六、Assembling And Leveling Instructions
6.Assembling and leveling instructions 1) Unpack the machine and then tear off the protection film outside. 2)Take off the cover . 3)Check and ensure the LCD screen and plateform are clean and free of dust . , Do not install the resin VAT now 4)Plug in power and turn in power switch 6.Assembling and leveling Instructions 5)Please loosen the screws on the front and right side of the... - Page 12 “1mm”on the touch screen until the plateform can be installed ).lastly tighten black plateform fixed knob on the top fig.(2) 7) As shown fig.(3) ， Click“TOOLS”→ “MANUAL”→“HOME”on the touch screen , wait for the Z axis descent and then it will stop automatically .
- Page 13 back and forth ,As shown fig.(4) Ensure click only once every time ,do not press continuously to avoid The impact risk on the LCD screen 9. Now ,Gently press on the top of the plateform , and let it fit evenly on the LCD screen, use tool to tighten the screw on the front firstly and then tighten the screw on the side (please try your best to keep those edges parallel )
- Page 14 fig.(5),Otherwise ,The UV light is malfunction and please contact tech support fig.(5) 10 、 Make sure the resin VAT is nice and clean ,then install the resin VAT till it aligns with the twp limit-screws on the panel , as shown in fig.(6) Finally ,tighten the adjustable nut on both sides to secure the resin VAT .
-
Page 15: 七、Software Installation
7. Software installation 1) Slicing Software installation Slicing software is located in USB-Disk , Double click the file and follow the installation guide as show below... - Page 16 2)Manipulate 3d model in Chitu slicer When the software is installed, it will run automatically , on the manu bar, Click “file” → “open file” to import you own 3d format model ,ie : STL file , or you may input the test file in USB-Disk .
- Page 17 Other operations ： （ 1 ） Position Change : Left click and hold on the model ,then you may change the model position ,by dragging it around （ 2 ） Zoom in / out : Scroll the mouse wheel （ 3 ） Change viewing angle : right click the plateform .hold on and move on the mouse .
- Page 18 3)Chitu Slicer setting At the top right corner, there are “parameters” 、 “support” 、 “print size”settings ， Please refer to below instructions For those settings 1 、 Parameters Layer thickness ： It is suggested to set it to 0.05mm (range: 0.01~0.2mm 。...
- Page 19 Support and model is small .easy to Remove the support . Heavy : Support contact with the Model is large --solid . It is recommended to use the “medium” first ,and use the default Setting . Raft ： Add the raft will make the Bottom stick better to the build Plate (but using more material),The Parameter could be changed according...
- Page 20 When the setting are correct ， Click“slice”icon at the top left ， save it at USB-Disk and start slicing ,click“OK”to complete the slice ； or click “show preview”to to check the printing layers and other parameters as well .
-
Page 21: 八、First Print Instructions
4)First print instructions Before printing, to minimize the first time fail , （ 1 ） please ensure Z-axis works fine （ 2 ） The plateform is well levelled （ 3 ） UV light is function properly . 8. Print Please insert USB disk into printer USB port ,then wear gloves,slowly pour the resin to resin VAT until it reaches 1/3 volume of it . - Page 22 2) Handling models and residues After printing finished ， awaiting the resin stop dropping from the build plate,and then unscrew and remove the plateform . as show in fig.(7) the model could be removed by scraper carefully .the model should be washed by ethanol 95% concentration .the printed model may need post curing to achieve better hardness by direct sunlight or UV curing box .
-
Page 23: 九、 Faq And Machine Maintenance
9.FAQ and machine maintenance 1) Model not sticking to build plate. (1)Bottom exposure time is insufficient ,increase the exposure time (2)Contact area between the model and build plate is small. Please add raft , (3)Bad leveling Layer separation or splitting (1) The printer is not stable while printing (2) FEP film is not tight enough or it needs to be changed (3) The printing build plate or resin VAT is not tightened. - Page 24 3 、 Be carefully when remove the Build plate , do not let it fall into LCD screen . 4 、 Do not let the resin in the resin VAT for over two days if not using it , please filter and store the resin properly . 5 、...
