ELIOS PLUS - ELIOS WOK
INSTRUCTIONS FOR USE AND INSTALLATION
E N

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELIOS PLUS and is the answer not in the manual?

Questions and answers

Summary of Contents for Fonderia Finco ELIOS PLUS

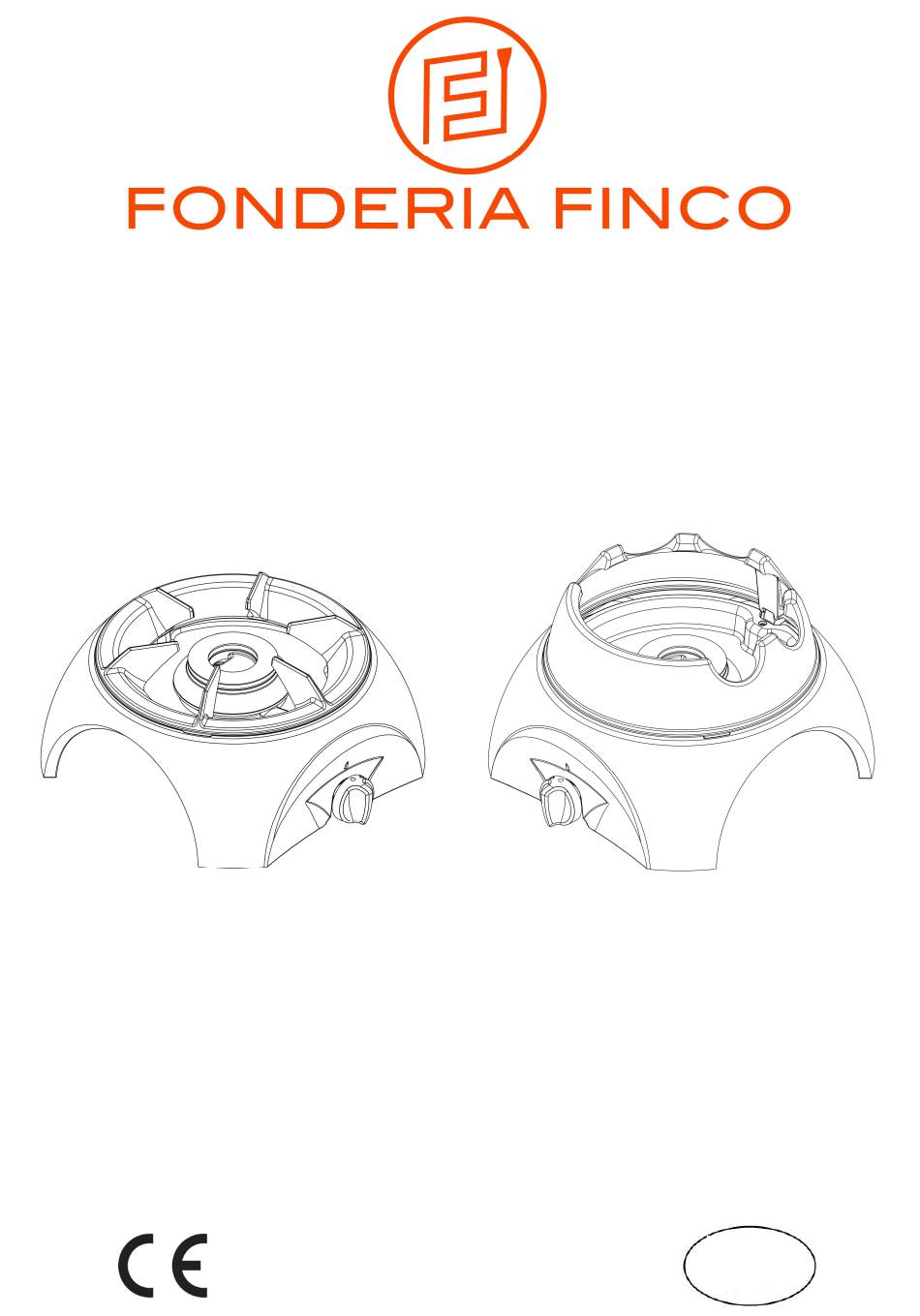

  • Page 1 ELIOS PLUS - ELIOS WOK INSTRUCTIONS FOR USE AND INSTALLATION...
  • Page 2 V. 01-18...
  • Page 3 WARNING: this appliance is intended for professional use to cook food and can be used only by qualified personnel. ELIOS PLUS AND ELIOS WOK SIZES DECLARATION OF CONFORMITY DIRECTIVE 2009/142/EC: We declare that the materials used are appropriate according to chapters 2.1 and 2.2 and that the requirements of chapter 3.1.3, regarding the risk of explosion in the event of an external fire, with respect to the above-mentioned Directive,...

  • Page 4: Table Of Contents

    PACKAGE CONTENTS: Inside the box, you find the instruction book, the Elios burner and the Lpg/methane hose nozzle with seal ring already mounted on. The box is designed to be used as a protective case to carry Elios in full safety: to open the box correctly we recommend that you remove only the 4 hooks at the bottom, between the wooden base and the box sides.

  • Page 5: User Manual

    The pots that can be used with the Elios PLUS cooker must have a minimum diameter of 18 cm and a maximum diameter of 50 cm.
  • Page 6 Figure 1.A 1 = gas control knob 2 = basin securing screws 3 = burner 4 = gas ring 5 = basin 6 = safety valve sensor 7 = pilot 8 = venturi 9 = LPG or Methane hose nozzle with seal ring...

  • Page 7: First Use

    1.2 FIRST USE - Check that the cooker has not been damaged during transport. - Place Elios in a room suitable for "A1" type appliances (see paragraph 2.2 for further information). - Contact a qualified technician for the connection of the gas pipe to the hose connection and let him read chapter 2 "instructions for the installer".

  • Page 8: Cleaning

     To light the main burner, slightly press down the knob a second time and turn it counter- clockwise towards the large flame symbol. In this way you will have the maximum capacity. By pressing and turning the knob clockwise again, you can adjust the flame down to the minimum capacity represented by the small flame symbol.

  • Page 9: Instruction For The Installer

    2. INSTRUCTION FOR THE INSTALLER CAUTION: the following procedure requires specific skills and adjustments while the flame is on may cause damage to persons or things if not carried out with due skill and competence. The modification of the appliance on part of unauthorized people, will invalidate any liability of the manufacturer in case of malfunction and/or damage caused by the malfunction of the cooker.

  • Page 10: Conversion Elios From Lpg To Methane And Vice Versa

    2.4 CONVERSION ELIOS FROM LPG TO METHANE AND VICE VERSA 1 = Gas nozzle 2 = Cap securing screw 3 = Air regulation cap 4 = Hose connection Figure 2.A TO CHANGE THE FEED GAS OF YOUR ELIOS, YOU CAN ASK FOR DIFFERENT NOZZLES WHICH ARE AVAILABLE AS OPTION.
  • Page 11 figure 2.A for the distance) and tighten screw 2 of figure 2.A so as to block the cap. 9. Turn the cooker upside down and unscrew the nickel-plated screw with an 11 mm spanner (point 1 figure 2.B) also using a 13 mm spanner or pliers inserted in point 2 figure 2.B to hold the pilot group.

  • Page 12: Technical Characteristics

    Figure 2.D Elios PLUS and Elios Wok require different distances X consistent with the gas used. Pay attention to table 1. Elios PLUS Elios PLUS Elios WOK Elios WOK methane methane Distance X 12,0 mm 3,0 mm 16,5 mm 4,0 mm GAS PILOT NOZZLE Ø...
