Aqua Creek RANGER Installation And Operating Instructions Manual

Pool lift 300 lb. 136 kg maximum capacity
Hide thumbs

Advertisement

Quick Links

Download this manual

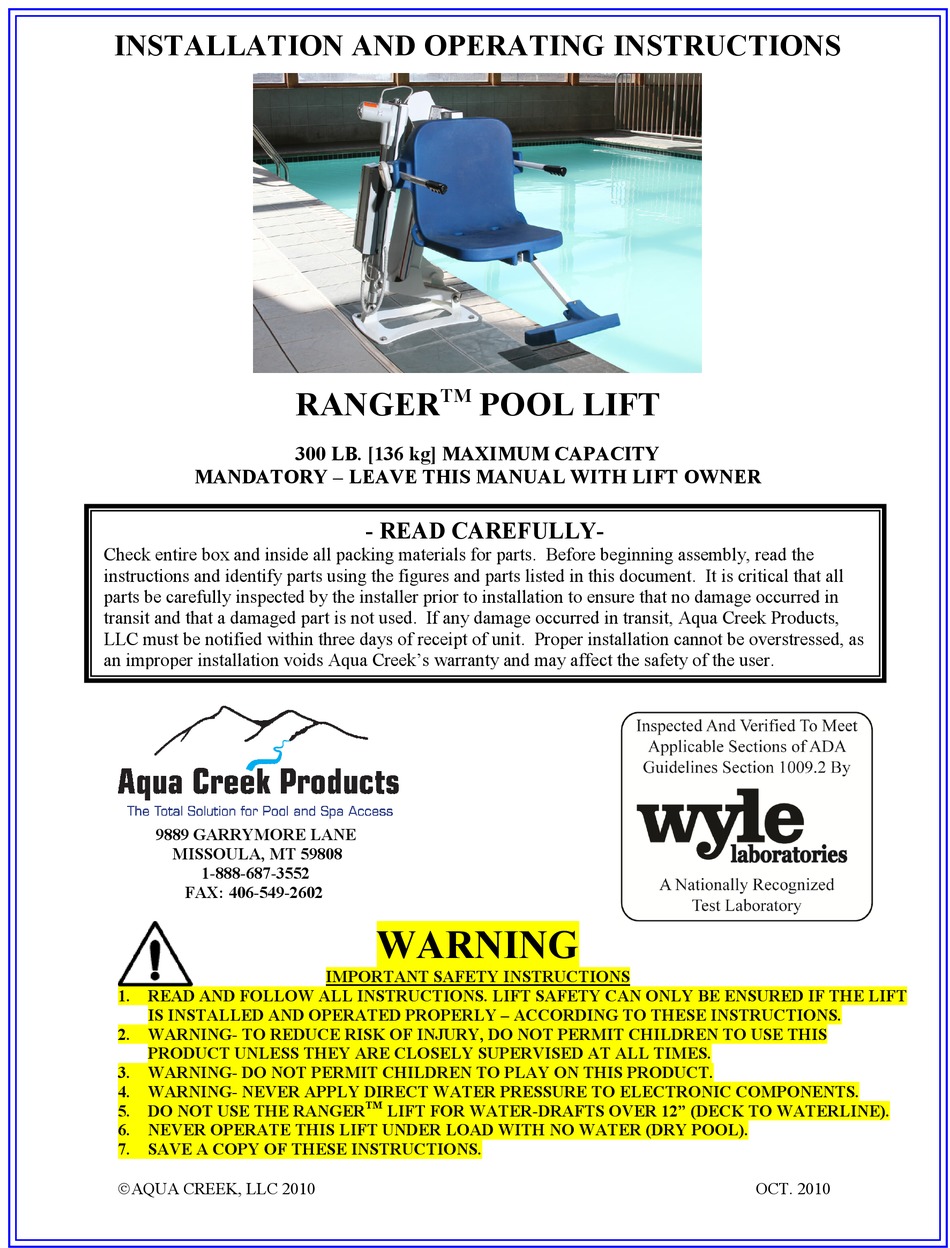

INSTALLATION AND OPERATING INSTRUCTIONS
MANDATORY – LEAVE THIS MANUAL WITH LIFT OWNER
Check entire box and inside all packing materials for parts. Before beginning assembly, read the
instructions and identify parts using the figures and parts listed in this document. It is critical that all
parts be carefully inspected by the installer prior to installation to ensure that no damage occurred in
transit and that a damaged part is not used. If any damage occurred in transit, Aqua Creek Products,
LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as
an improper installation voids Aqua Creek's warranty and may affect the safety of the user.
9889 GARRYMORE LANE
MISSOULA, MT 59808
1-888-687-3552
FAX: 406-549-2602
1.
READ AND FOLLOW ALL INSTRUCTIONS. LIFT SAFETY CAN ONLY BE ENSURED IF THE LIFT
IS INSTALLED AND OPERATED PROPERLY – ACCORDING TO THESE INSTRUCTIONS.
2.
WARNING- TO REDUCE RISK OF INJURY, DO NOT PERMIT CHILDREN TO USE THIS
PRODUCT UNLESS THEY ARE CLOSELY SUPERVISED AT ALL TIMES.
3.
WARNING- DO NOT PERMIT CHILDREN TO PLAY ON THIS PRODUCT.
4.
WARNING- NEVER APPLY DIRECT WATER PRESSURE TO ELECTRONIC COMPONENTS.
5.
DO NOT USE THE RANGER
6.
NEVER OPERATE THIS LIFT UNDER LOAD WITH NO WATER (DRY POOL).
7.
SAVE A COPY OF THESE INSTRUCTIONS.
AQUA CREEK, LLC 2010
TM
RANGER
300 LB. [136 kg] MAXIMUM CAPACITY
- READ CAREFULLY-
WARNING
IMPORTANT SAFETY INSTRUCTIONS
TM
LIFT FOR WATER-DRAFTS OVER 12" (DECK TO WATERLINE).
POOL LIFT
OCT. 2010

Advertisement

loading
Need help?

Need help?

Do you have a question about the RANGER and is the answer not in the manual?

Questions and answers

Summary of Contents for Aqua Creek RANGER

  • Page 1 If any damage occurred in transit, Aqua Creek Products, LLC must be notified within three days of receipt of unit. Proper installation cannot be overstressed, as an improper installation voids Aqua Creek’s warranty and may affect the safety of the user.
  • Page 2 RANGER POOL LIFT TABLE OF CONTENTS PAGE DESCRIPTION PACKING LIST SITE AND POOL DECK REQUIREMENTS CORE-DRILL RETROFIT INSTRUCTIONS SAW-CUT RETROFIT INSTRUCTIONS NEW-CONSTRUCTION INSTRUCTIONS RANGER LIFT ASSEMBLY INSTRUCTIONS 24V BATTERY OP & INSTALL INSTRUCTIONS BATTERY MAINTENANCE RANGER LIFT OPERATING INSTRUCTIONS 13-14 SAFETY &...
  • Page 3 THE RANGER POOL LIFT 1. RANGER POOL LIFT W/ FOOTREST 2. 24V BATTERY 3. BATTERY CHARGER W/ MOUNTING PLATE 4. SAFETY BELT NOTE: The RANGER POOL LIFT requires a concrete anchor system (item F-433PP4A) sold separately.
  • Page 4 Aqua Creek Products for assistance in this case. The front anchors of the lift need to be mounted a maximum of 14 inches and no closer than 4 inches from the inside pool wall.
  • Page 5 High Strength 2 part construction epoxy* Black electrical tape (Optional) Masking tape *Aqua Creek recommends either Hilti™ Brand HIT HY-150 or Simpson™ brand ET22 Strong Tie or equivalent Locate the anchor plate, four (4) anchor inserts with nuts and mounting hardware. (Sold separately, part number F-433PP4A - See picture).
  • Page 6 (not included). Aqua Creek recommends either Hilti™ Brand HIT HY-150 or Simpson™ brand ET22 Strong Tie or equivalent.
  • Page 7 SAW-CUTTING RETRO-FIT INSTRUCTIONS Required Materials & Tools: Concrete saw with Diamond blade Tape Measure 4’ long Straight edge or chalk line Sledge Hammer Cold Chisel Torpedo Level Sting line Concrete & Concrete tools #4 Rebar 1) Locate the anchor plate, four (4) anchor inserts with nuts and mounting hardware).

  • Page 8: Anchor Installation: New Construction

    ANCHOR INSTALLATION: NEW CONSTRUCTION For installations where a new deck is being poured, or where a dedicated pad is being poured just for the pool lift, the concrete must satisfy the requirements outlined on page 4. For convenience here are the requirements again; YOUR POOL DECK MUST BE AT LEAST 3-FEET LONG BY 3-FEET WIDE BY 6- INCHES THICK.
  • Page 9 RANGER POOL LIFT - ASSEMBLY INSTRUCTIONS Attach seat belt as shown in FIGURE 7. Install the RANGER pool lift onto the four (4) anchors using 1/2 x 1-1/2” stainless steel hex-head bolts and 1/2" stainless steel flat washers. Make sure all bolts are tight before using the lift.
  • Page 10 The RANGER Pool Lift comes with a 24v sealed rechargeable battery, wall mount charging unit (with mounting bracket), control box, and a waterproof handset controller. The control box is mounted to the RANGER Pool Lift has a plug-in socket for both the actuator and the handheld controller.

  • Page 11: Battery Maintenance

    BATTERY MAINTENANCE 1. WHEN LIFT IS NOT IN USE STORE BATTERY ON CHARGER. The battery power unit is a sealed lead acid battery pack. Frequent recharges will prolong the battery life and maintain a high cold amperage capacity. THE BATTERY CAN BE STORED ON THE CHARGER WHEN NOT IN USE.
  • Page 12 Secure the adjustable lap belt around the waist so that the belt is snug, but not uncomfortably tight. OPERATING THE RANGER POOL LIFT: The HANDSET CONTROL is used to raise and lower the lift during operation. To lower the chair into the pool, press and hold the ▼...
  • Page 13 Storing the lift near pool chemicals may cause rusting and other damage to occur. Your Aqua Creek stainless steel lift is powder coated to protect the stainless steel from rusting. Most rusting will occur at weld points, crevices, under gaskets, rivets or bolt heads.
  • Page 14 If the lift is used MONTHLY follow the same steps as above. Also check the nuts and bolts to make sure they are securely fastened (this is always a good idea, no matter how often or infrequently the lift is used). Also make sure to store the battery on the charger and not on the lift.

  • Page 15: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Before troubleshooting make sure the battery is fully charged. If the lift doesn’t move when the handset button is pressed: When you can’t get the lift to move check the following things: 1. Make sure the battery is fully charged: A.
  • Page 16 If the battery is fully charged and the lift is not moving then: 2. Check all cords: A. Check that the cords are properly plugged in. Start by unplugging the remote and the actuator cord from the control box. Once these cords are removed check the ends for corrosion or damage.
  • Page 17 USING THE “EMERGENCY BUTTON” on the RANGER Pool Lift Control Box On the front side of the control box is a small recessed button marked “emergency”. Take a pen or pencil or other pointed object and depress the “emergency”...
  • Page 18 PART NUMBER 1 RANGER LIFT BASE A-2011PPB 1 RANGER LIFT FRAME A-0404PPF 1 RANGER LIFT ACTUATOR FRAME A-8980PPAF 1 RANGER LIFT SEAT ROTATE ARM P-2012SRS 1 RANGER LIFT SEAT ARM A-2012ARM 1 RANGER LIFT CONTROL ARM L-2014FBL 1 CHAIR ASSEMBLY...
  • Page 19 SEAT ASSEMBLY: PARTS LIST ITEM # QTY DESCRIPTION PART NUMBER 1 SEAT BODY F-132RC 2 SEAT ARMREST TUBE SA-0904SAT 2 SEAT ARMREST HANDGRIP RUBBERFINGERGRIPS 2 1/4"-20 x 3" HEX BOLT, S.S. BOLT1/4X3SSHEX 2 1/4" FLAT WASHER, S.S. FLATWASHER1/4SS 1 1/4" QUICK RELEASE PIN, S.S. PIN1/4X3SS 1 LANYARD FOR QRP LANYARD...
  • Page 20 EXCEED THE RATED LIFTING CAPACITY OF 300 POUNDS [136 kg] FOR THE RANGER POOL LIFT. To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the defect.
