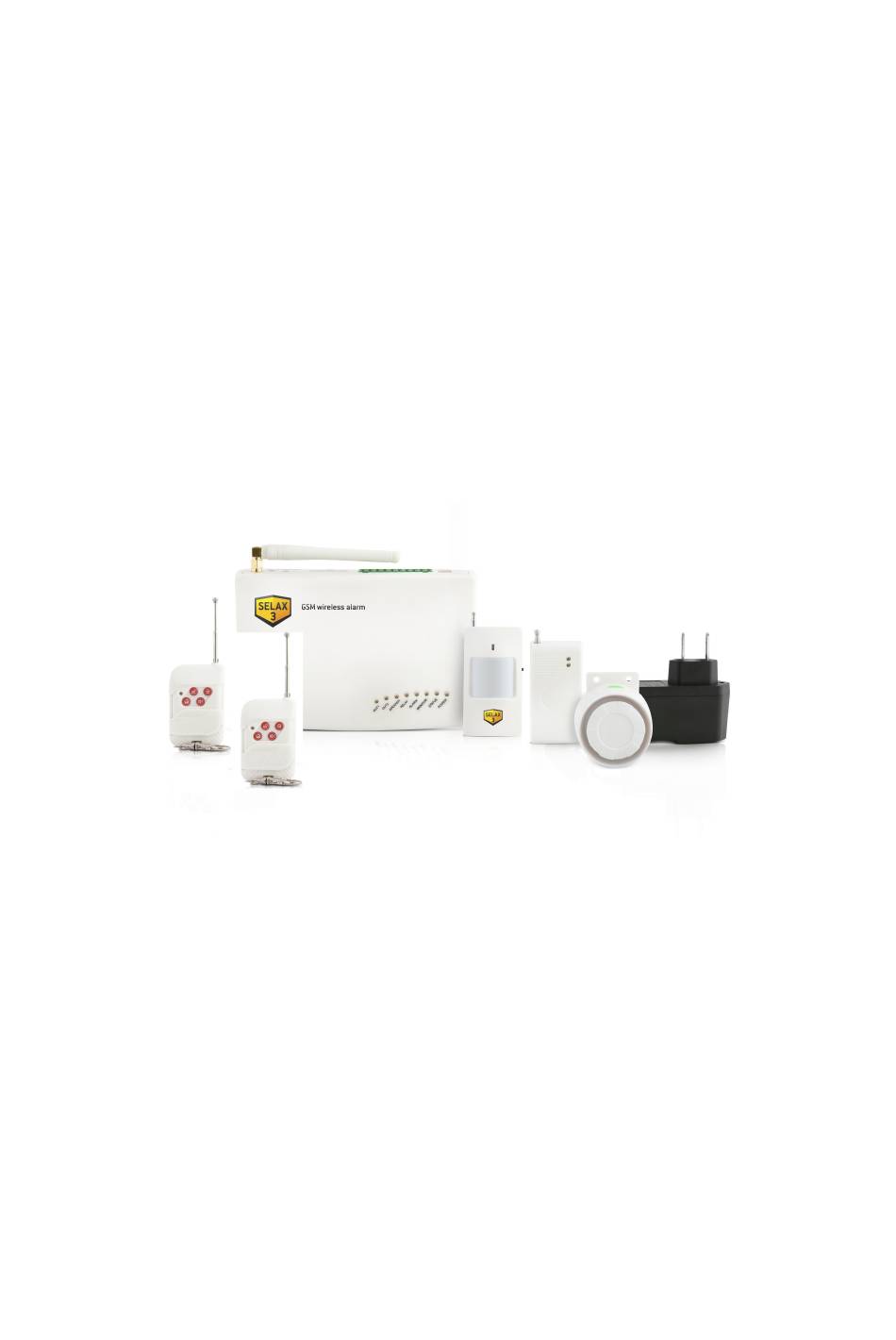

Selax Electronics SEL-003 Manual

Wireless gsm alarm with ultra low consumption, no power supply needed

Advertisement

Quick Links

Table of contents

Introduction .................................................................................... 2
Central unit connectors .................................................................. 3
SEL-003 connections....................................................................... 4
Supply.............................................................................................. 6
SIM card instalation........................................................................ 6
PC software installation.................................................................. 6
SEL-003 PC software ................................................................... 12
Configuration window........................................................ 12
Wireless zone window........................................................ 21
History window.................................................................. 22
SMS setings........................................................................ 23
Central unit controlling.................................................................. 29
Central unit reset.............................................................................30
SEL-003
Manual
Wireless GSM alarm with ultra low consumption
No power supply needed!
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SEL-003 and is the answer not in the manual?

Questions and answers

Summary of Contents for Selax Electronics SEL-003

  • Page 1: Table Of Contents

    Central unit connectors …............... 3 SEL-003 connections............... 4 Supply....................6 SIM card instalation................ 6 PC software installation..............6 SEL-003 PC software …..............12 Configuration window............12 Wireless zone window............21 History window..............22 SMS setings................ 23 How to add sensors (detectors) using record button...... 29 Central unit controlling..............
  • Page 2 Two working regimes: Low Consumption = LC (3mA) and Full Operation = FO (6mA). If used LC, SEL-003 will call or send SMS when alarm, but you can not to call or send SMS out to SEL- 003. On the contrary with FO you can make any calling or sending SMS to SEL-003 with no resctriction.
  • Page 3: Central Unit Connectors

    Central unit connectors (back side) Description 1,2,3,4,5,6,7,8,9,10 – connector numbers USB conector – central unit programming +12V – positive power supply 12V GND – ground (all grounds are connected) NC – Normally closed relay contact COM – central relay contact NO –...
  • Page 4 SEL-003 and solar panel Solar Solar panel panel - (contact) - (contact) + (contact) + (contact) Minisiren connecting: White wire is connected to +12V and black-and-white to Bell. See picture below. SEL-003 and minisiren Black-and-white wire Minisiren 12V White wire...
  • Page 5 (instead of siren) Resistor 2K2 (with relay) Resistor 2k2 If you use external battery to supply SEL-003, the inner battery must be OFF. Otherwise charging inner battery will increase a consumption.
  • Page 6: Supply

    (Prepaid SIM can be used if you keep enough credit on it). Before putting SIM card into SEL-003, you can put it in a mobile phone to erase all incoming and outgoing SMS and calls and cancel PIN.
  • Page 7 Connect SEL-003 to PC USB Connect SEL-003 to the power supply You will see a short message in the right down corner. See picture below. after that, clik on Computer mark (on the desktop or after click on Start button ) by right...
  • Page 8 You choose Properties option and see: Click on Device Manager and see:...
  • Page 9 Then click on NPX LPC13xx VCOM and see as follows:...
  • Page 10 Now click on Update Driver Software and you see as follows:...
  • Page 11 Now click on Update Driver button and you see as follows:...
  • Page 12 Click on Browse my computer for driver software and you see as follows:...
  • Page 13 Click on Let me pick from a list of device drivers on my computer and you see as follows: By rolling you choose Mobile devices and you see as follows:...
  • Page 14 Then clik on Mobile devices and you see as follows: Then clik on Have Disk button and you see as follows:...
  • Page 15 Click on Browse button and pick lpc134x-vcom_64 driver from SEL-0003 file: Click on it to be blue. Then you see as follows:...
  • Page 16 Click on Next button and you see as follows: Click on Install this driver software anyway and you see as follows:...
  • Page 17 As soon as installation is over you will see as follows: When you go to Device Manager you see in Ports LPC134xxUSB VCom Port. In that case installation is successful.
  • Page 18: Sel-003 Pc Software

    Basic section to disarm delay (sec) - a delay in seconds before the SEL-003 will call or send SMS after an input is triggered in the armed status. If SEL-003 is disarmed before preset time, then no SMS or call will be performed.
  • Page 19 If you give a call to the central unit after that, the central unit will be disarmed automatically and SMS will be sent as follows: As you see, you will get to know immediatelly, which status SEL-003 is, it means, if armed or disarmed and more information. See above. You can make the different combinations, for instance,...
  • Page 20 SMS, if central unit is Armed or Disarmed, wh save at are inputs and outputs status. After sending out this information SEL-003 will cross into full operation regime for 15 minutes, so that it si possible to call or send SMS to SEL-003. After this time, it will come back to low comsumption regime.
  • Page 21 24h - if sellected means, that the input is active 24 hours and it will always cause an alarm reguardless of whether SEL-003 is armed or disarmed. Silent - if selected, no alarm outputs are armed, so SEL-003 will just will ring and/or send SMS.
  • Page 22 Ringing action If you call to the central unit, SEL-003 will refuse a call and change the present armed/disarmed status to the oposite one. This will only work if the calling phone number is included in phone number list.
  • Page 23 You can setup as many as 16 wireless sensors like PIR, magnetic and smoke. It is possible, too, to setup as many as 8 wireless keypads or remote controls. Of course, you can name all wireless sensors or keypads or remote control. See window above. How to add wireless sensor (detector) Switch PIR On and then switch PIR Off.
  • Page 24: Sms Setings

    (including persons using them), datum, hour and minute, when some event happened. When is programming is over, pull out a cable from PC and switch off SEL-003. After 20 seconds, switch external power supply and then switch indoor baterry to ON position. It that case, the battery will be charged automatically.
  • Page 25 If you want to disarm the central unit, just enter SMS command as follows: and send it to your central unit phone number. SMS commands - configuration **1*nn*nnnnnnn# configuration command command number always 1 to setup configuration Command number: 1 – to disarm delay 0 – 255 seconds 2 –...
  • Page 26 Next example: We want to setup a number of ringing 3 (command number 7), ring lenght 10 seconds (command number 8) and regular central unit info (command number 9). Then enter SMS command as follows: SMS command – device name **2*nnnnnnn# device name Example: We want to setup a device name Cottage Guard.
  • Page 27 SMS commands – output setting **4*n*nnnnnnn*nn*xy 0 – beep after arm/disarm OFF 1 – beep after arm/disarm ON 0 – alarm OFF 1 – alarm ON relay contact time in seconds * - go on to setup # - not go on to setup Output name Output number 1 relay...
  • Page 28 It is possible to setup a few phone numbers within one SMS command. SMS command – wireless input setting **6*nn*nnnnnnn*xy 0 – silent alarm OFF 1 – silent alarm ON 0 – 24 regime OFF 1 – 24 regime ON * - go on to setup # - not go on to setup input name...
  • Page 29 It is possible to use several SMS commands in one SMS SMS command – setting wireless sonsor code on position **8*n# Sensor position 1 - 16 We want to add the first wireless sensor to posotion 1, second to position 2 and third to position 5. Then enter SMS command as follows: **8*1# **8*2# **8*5# SMS command –...
  • Page 30: How To Add Sensors (Detectors) Using Record Button

    SMS command – output control by SMS **10*n* * or # * - output ON # - output OFF Output number position 1 – relay 2 – transistor output (siren) Example We want to put relay ON. Then enter SMS command as follows: **10*1* Next example: We want to put relay OFF.
  • Page 31: Central Unit Reset

    , if you marked beep option about siren. Within phone arming LED called STATUS shines and LED called MONITOR and RELAY (see previous text). This LED shines even when SEL-003 calls back to user. After this arm period just LED called POWER blinks during interval about 3 seconds and LED called STATUS within interval about 5 seconds.
