Truth Hardware Marvel Programming Manual

Programming of Hand Held Remote

LED Light Conditions:

Green Led "on" = 110vac present
Green Led "blinking" = Remote signal received
Red Led "on" = Receiver looking for Remote
Red Led "off"= Remote programming is
complete

To Program the Hand Held Remote:

1) Insert 2 - CR2032 batteries into Remote (not included)
2) Press and hold "Learn" button on Motor Controller
a. Release button once the "Red" led lights.
3) Press and hold the top (open) end of a selected button on
the remote. (button #1 is typical)
a. The "Red" led will blink and go out when
programming is complete.
4) Reinstall cover on Motor Control Pack (2 screws)
a. Be Careful not to pinch any wires.
Insert Motor Control Pack into double gang box and install
5)
cover plate. (Do Not Use A Metal Cover Plate)
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Any modifications not expressly approved by
Truth Hardware will void your authority to operate this device.

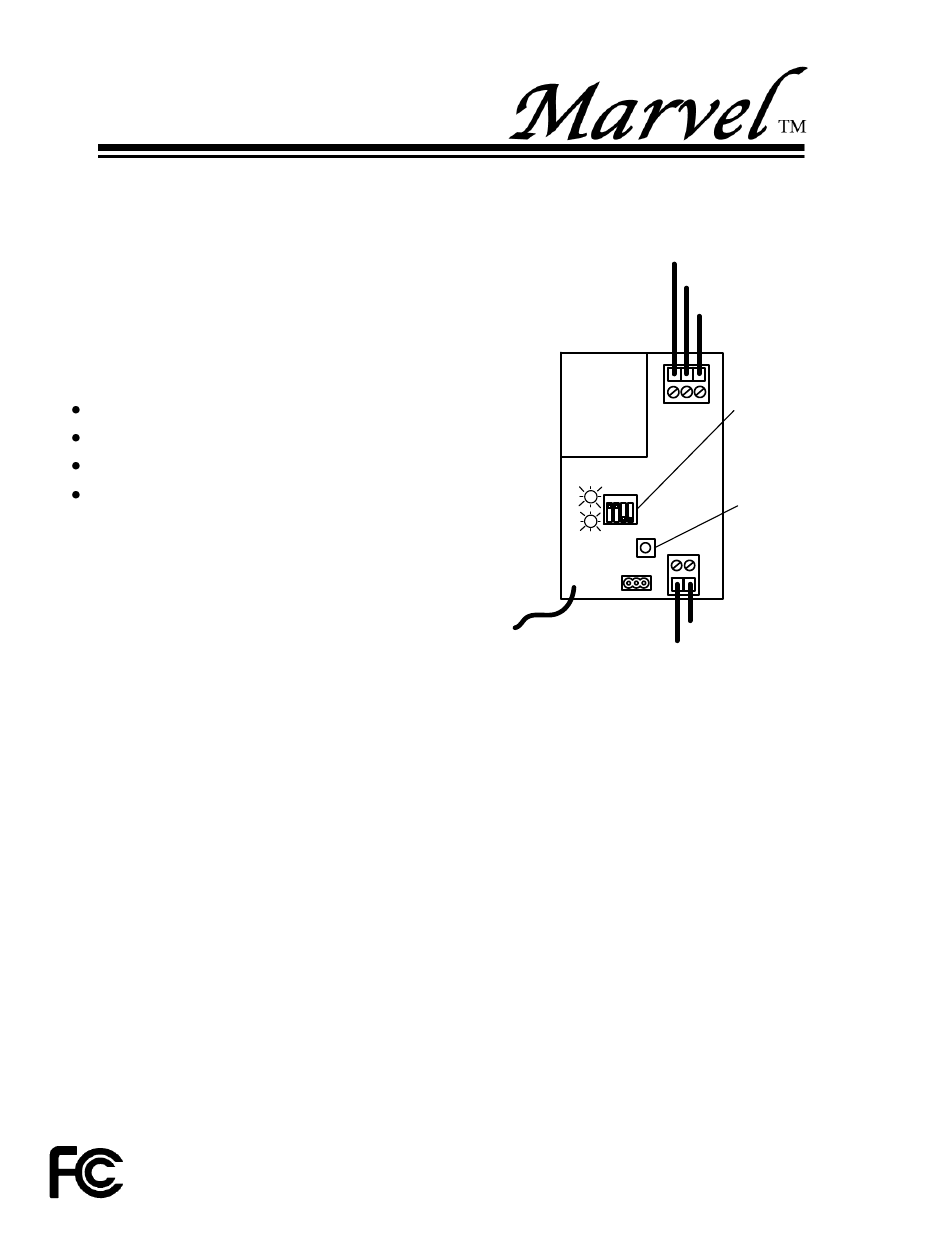

Motor Controller
(cover removed)
Green
ON
Red
Remote
Receiver
Antenna
(Blue)
LED light conditions:
1) Green "on" = 110vac is present
2) Green "blinking" = Remote signal received
3) Red "on" = receiver looking for Remote
4) Red "off" = Remote programing is complete
Dip switches
(do not change)
Learn button
for RF
Remote
110 VAC
Connection
