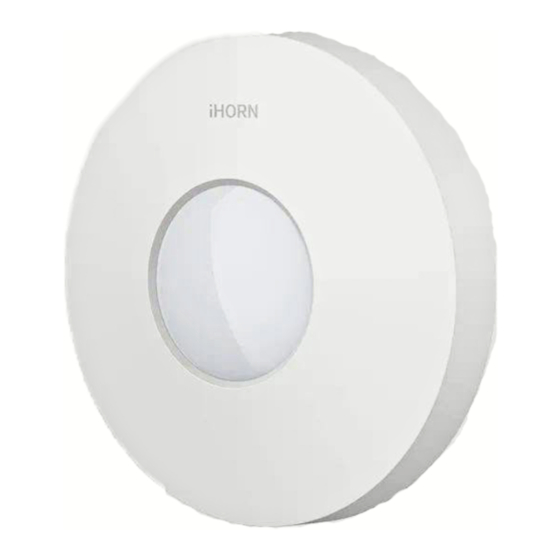

HORN LH-913C Installation Instructions

Triple technology detector combined microwave and passive infrared with intelligence, adopting advanced
signal analysis technology, can avoid various kinds of false alarms for worse environment. It is used in bank,
warehouse, living space and other place.

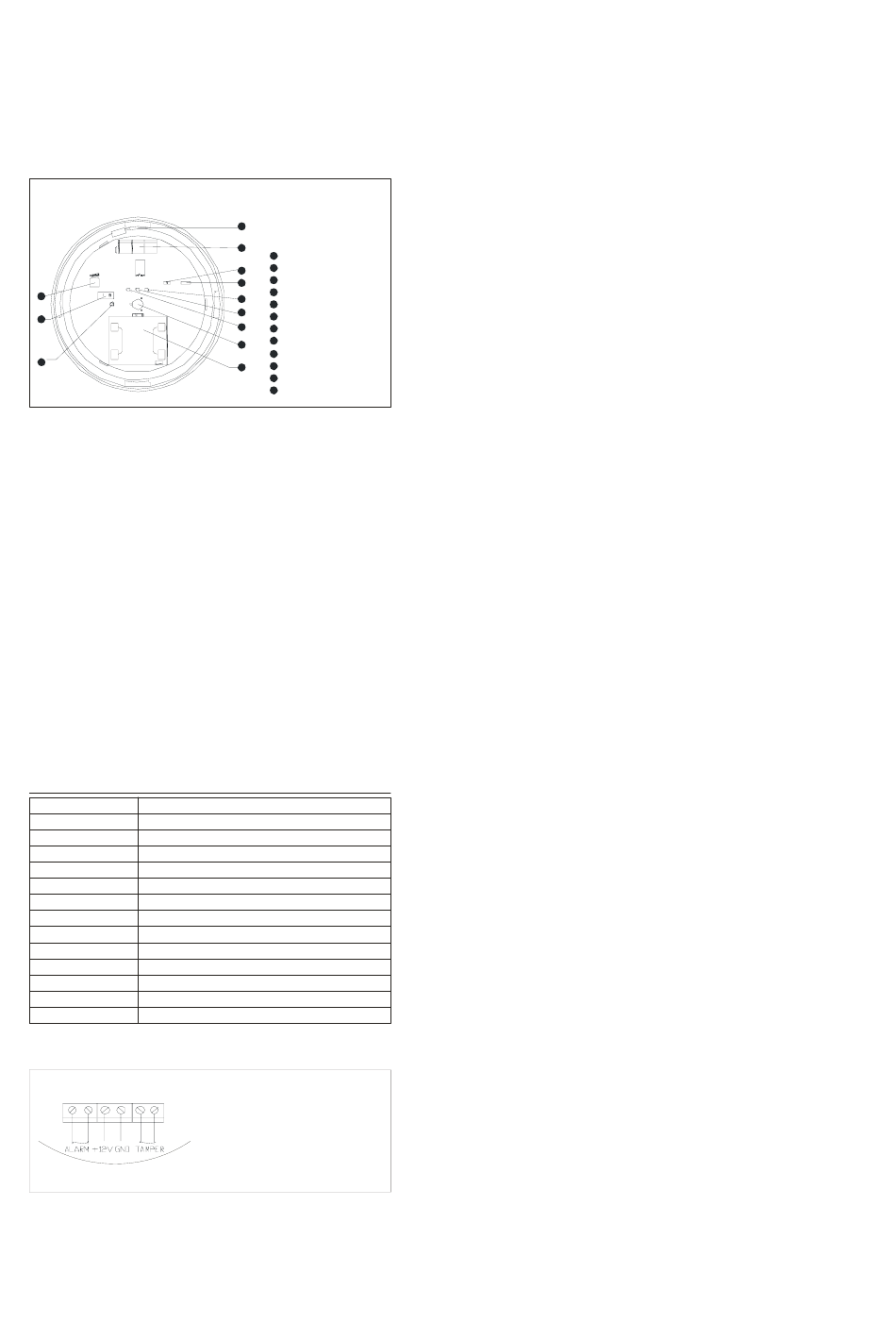

GENERAL VIEW

10
11
12

CHARACTERISTIC

Adopted MCU
Automatic pulse count
Streamline design
Doppler + Power analysis
X-Band plane antenna
Microwave detecting range adjustable
Auto temperature compensation reducing false alarm
Valve adjustable technology with high anti-interference
N.C./N.O. optional for different alarm
Intelligence technology differing intruder from interference signals
SMD technology

TECH. SPECIFICATION

Working voltage DC9 16V ～
Supply 18mA ( DC 12V )
≤
Detecting Range diameter:8m (installation height:3.6m)
Warm-up time ≤ 60s
Detecting mode Dopper+Power analysis
Sensor dual low noise PIR
Microwave antenna plane antenna with high frequency oscillator GaAs :FET
Microwave frequency 10.525GHz
Installation method ceiling mounted
Installation height about 2.5-6m
Working temperature -10 -50 ℃ ℃
LED indication Green:infrared Yellow:microwave Red:alarm
Relay output N.C./N.O. optional, 60VDC,100mA
Anti-tamper switch N.C. without voltage output,28VDC,100mA

TERMINAL BLOCK

TRIPLE TECHNOLOCY
1
2
1 Wire exit
2 Ter minal switches
3
3 LED jumper
4
4 RELAY jumper
5
5
Gr een LED
6
6 Red LED
7
7
Yellow LED
8
Dual PIR
8
9 Micr owave module
Micr owave VR
9 10
Anti- tamper switch
11
12 Scr ew
+12V:DC ANODE
GND:DC CATHODE
ALARM:RELAY OUTPUT PORT
TAMPER:ANTI-TAMPER SWITCH OUTPUT PORT
DETECTOR
