Summary of Contents for METALTEK PLAYMATE iSMASH

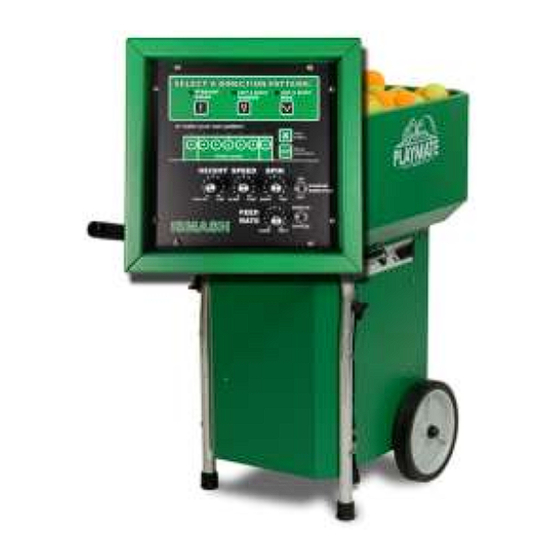

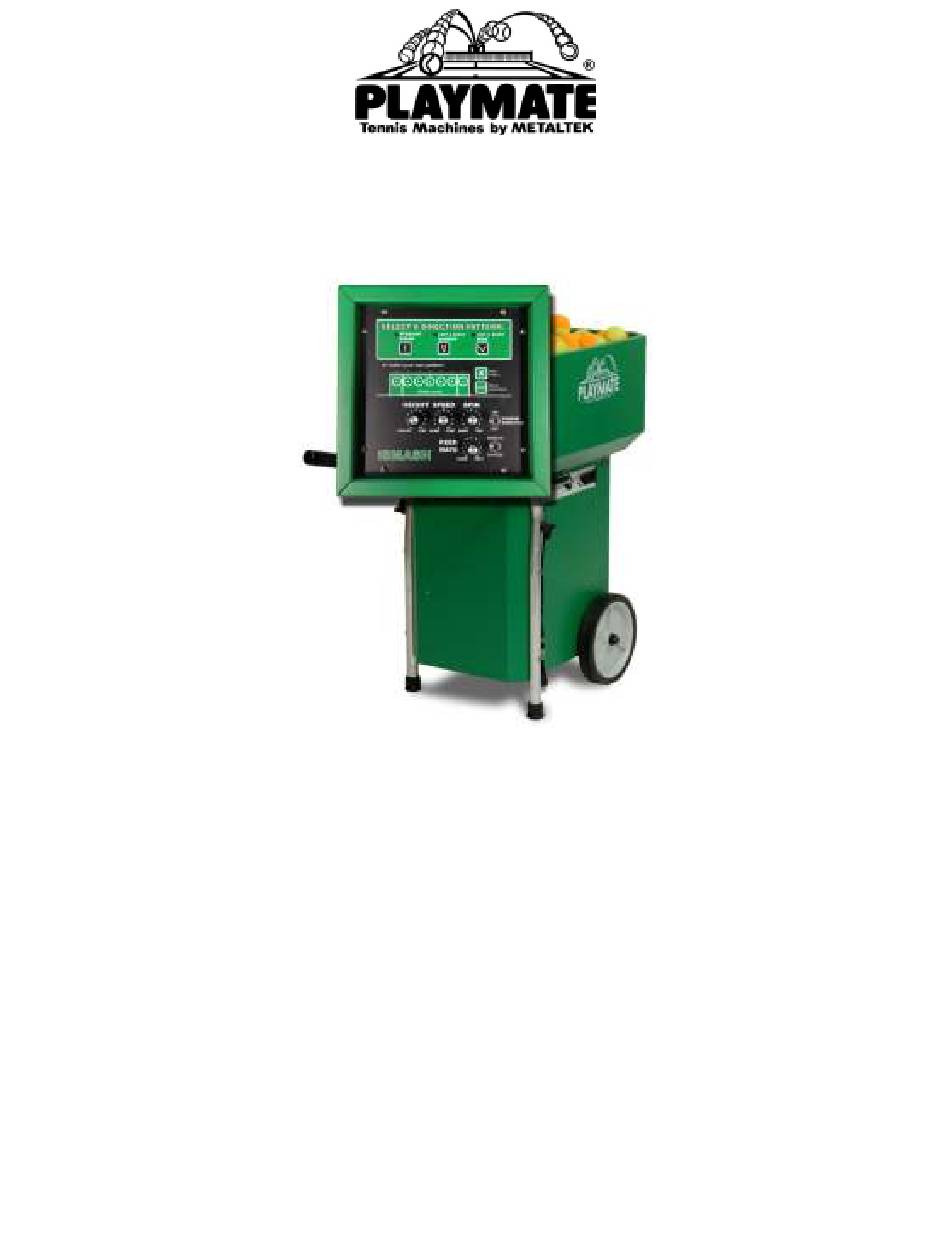

- Page 1 PLAYMATE iSMASH Owner’s Manual...
- Page 3 PLAYMATE iSMASH Owner’s Manual Serial #: _____________ METALTEK 455 Kitty Hawk Drive Morrisville, NC 27560 Tel: 919.544.0344 Fax: 919.544.1430 www.playmatetennis.com Rev. A...
- Page 4 This page has been intentionally left blank. Rev. A...
- Page 5 Disclaimer Information in this document is subject to change without notice and does not represent a commitment on the part of METALTEK. METALTEK provides this document “as is”, without warranty of any kind, either expressed or implied, including, but not limited to, the particular purpose.
- Page 6 Dear Valued Customer, Congratulations on the purchase of your new PLAYMATE Tennis Ball Machine. We have packed over 40 years of experience and dedication into the production of each and every ball machine that leaves our high-tech facility in Raleigh, North Carolina. It is our mission to build the most durable, dependable, and player-friendly machines.
-
Page 7: Table Of Contents
Contents Introduction……………………………………………………….…6 Safety Instructions…………………………………………………7 Electrical Requirements…………………………………………..8 Getting Started………………………………………………………9 Operating Instructions…………………………………………..10 Care and Maintenance…………………………………………...13 Troubleshooting…………………………………………………...15 PLAYMATE Consumer Connection…………………………….16 Drill……………………………………………………………………17 Warranty and Limitations of Liability………………………..18 Rev. A... -
Page 8: Introduction
The best way to improve your tennis game is to practice. That may sound like simple advice, but it is advice we take very seriously here at METALTEK. We believe that the best way to practice your game is to spend some quality time on the court with a ball machine. -
Page 9: Safety Instructions
Safety Instructions WARNING! To reduce the risk of electrical shock, fire, injury to persons, and other damage when using this product, please follow these basic safety precautions. 1. Read all instructions carefully before operating this machine. 2. To protect against the risk of electrical shock, never immerse any part of this machine in water or any other liquid. -
Page 10: Electrical Requirements
Electrical Requirements A heavy-duty grounded three-prong power cord (not included) is recommended for use with the PLAYMATE Ball Machine. All machines should be plugged into a 120V 50/60 Hz outlet (220V 50/60 Hz outlet for overseas machines equipped with transformers). If you are using an extension cord of 50 feet long or less, we recommend that you use a 16 gauge or heavier extension cord that is grounded. -
Page 11: Getting Started
Inside the packing box, you should have found the owner’s manual, warranty card, and hand held remote control. If any of these are missing, please notify METALTEK immediately. Your new PLAYMATE should be ready for use in only a few minutes by completing the following easy steps. -
Page 12: Operating Instructions
Operating Instructions Direction Pattern Set the direction to where the balls are sent. Choose straight ahead, left & right, etc. For a custom pattern, press the white targets on the tennis court. Spin Turn the knob clockwise for topspin. Turn the knob counterclockwise for backspin. - Page 13 Operating Instructions Continued… POWER- This switch controls the power to the machine. When it is illuminated, power is being supplied. 1. FEED RATE – This knob determines how frequently the balls are pitched. Turning the knob clockwise increases the number of balls pitched to a maximum of approximately one ball per second.
- Page 14 Operating Instructions continued… 5. SPIN - This knob controls both TOP and BACKSPIN of the ball being thrown. Turning this knob clockwise will give TOPSPIN, counterclockwise BACKSPIN, if this knob is at 12:00 o’clock it will be a flat ball. 6.
-
Page 15: Care And Maintenance
Care and Maintenance With proper care and maintenance, your PLAYMATE tennis ball machine should last for years and years of effortless operation. These few basic steps will help to keep your machine in great shape, and deter any future mechanical problems. 1. - Page 16 Care and Maintenance continued… 2. STORING – When the machine is not in use, it should be stored in a proper and secure fashion. Ideally, it should be placed in a dry and clean area that offers shelter from the elements.
-
Page 17: Troubleshooting
Make sure only one ball Balls jam repeatedly is allowed to enter at one time. If feed wire is missing, call METALTEK for service. - Antenna is not facing - Reposition antenna upward Remote does not... -
Page 18: Playmate Consumer Connection
Hours of Operation: Monday - Friday 8:00am - 4:30pm (EST) If you experience difficulty with your METALTEK Products, please feel free to contact us at one of the following numbers: Toll Free (USA): 1-800-776-6770 Tel: 919.544.0344 Fax: 919.544.1430... -
Page 19: Drill
iSMASH Drill Drill #1 Flat Groundstroke or Volley to Deuce Court then Ad Court Remote toggle switch to REMOTE On/Off Push Red switch on Ball Machine to ON Height knob to 3 Speed knob to 60 Spin knob to 0 Feed Rate to 40/Ground Stroke or 50/Volley Direction Pattern to “LEFT &... -
Page 20: Warranty And Limitations Of Liability
METALTEK. This warranty only applies to original purchasers. On PC versions of the PLAYMATE Commercial tennis machines, the handheld PC units are not warranted by METALTEK, but subject to a separate warranty by its manufacturer. - Page 24 800.776.6770 www.playmatetennis.com METALTEK 455 Kitty Hawk Drive Morrisville, NC 27560 919.544.0344 tel 919.544.1430 fax...
