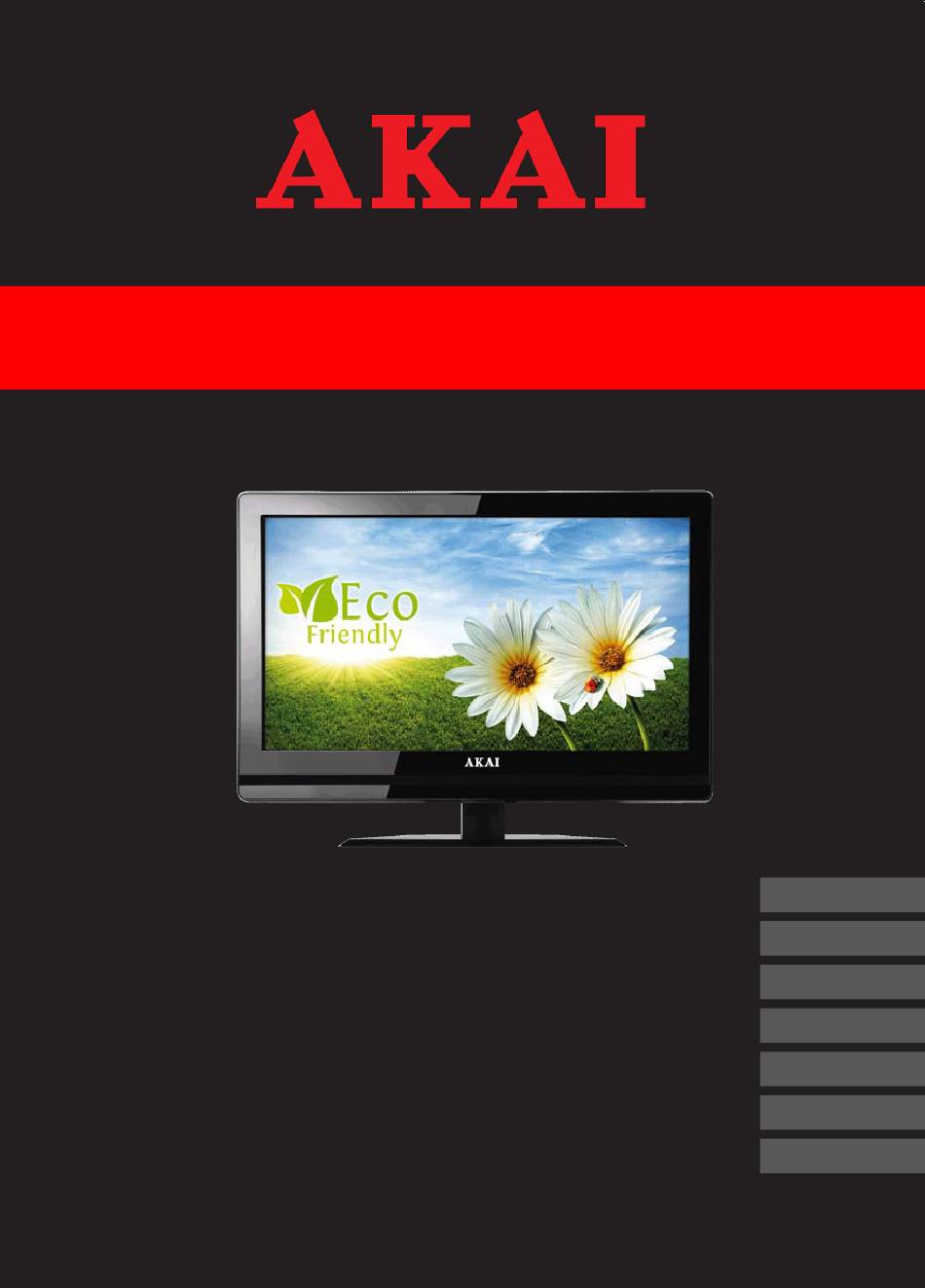

- Page 1 LED TV AL2425CI User manual NL 19 Gebruiksaanwijzing FR 37 Manuel de l’utilisateur ES 54 Manual de instrucciones DE 71 Gebrauchsanleitung Οδηγίες χρήσεως EL 89 Brugsanvisning DA 107...
-
Page 2: Table Of Contents
Table of contents Safety ................3 Intended use ..............3 Labels in this manual ............3 General safety instructions ..........3 Preparations for use ........... 4 Unpacking ................4 Package contents ............4 Installation ..............5 Mounting the foot .............5 Wall mounting ..............6 Connecting random equipment ........6 Connecting to the mains ..........8 Remote control..............8 Functions .............. -
Page 3: Safety
AL2425CI Safety Intended use The LED TV features a DVB-T TV function for the reception of both digital and analogue channels. The appliance can also be used as a monitor for a personal computer. Read the manual carefully before the first use. -
Page 4: Preparations For Use
Preparations for use Unpacking ● Unpack the appliance carefully. ● Check the package contents as described below. If any item is missing, please contact your reseller. ● Remove the labels from the front panel carefully if present. We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. -
Page 5: Installation
AL2425CI Installation ● Install the appliance in the configuration or your choice. - If the appliance is to be placed on its foot, read the paragraph "Mounting the foot". - If the appliance is to be hung to a wall, read the paragraph "Wall mounting". -
Page 6: Wall Mounting
Wall mounting The appliance can be attached to wall brackets complying with VESA standard. For this purpose, screw holes have been provided in the back. ● Mount the wall bracket to a wall. Refer to the mounting instructions supplied with the wall bracket. ●... - Page 7 AL2425CI Audio connections (output) ● DIGITAL AUDIO: Connect a suitable cable into the DIGITAL COAXIAL connection. ● EARPHONE: To connect a headphone, insert the cable plug in the headphone jack. To prevent hearing damage, remember to adjust the volume to a comfortable level.
-
Page 8: Connecting To The Mains
Connecting to the mains ● Connect the adaptor plug on the adaptor cable to the DC IN connection. ● Connect the mains plug to a wall socket. Remote control Install batteries ● Remove the battery cover. ● Insert the batteries matching the (+) and (-) polarity markings. -
Page 9: Functions
AL2425CI Functions Remote sensor LED indicator lamp Power/Standby button Source button Menu button CH - button CH + button VOL - button VOL + button... -
Page 10: Remote Control
Remote control General functions 10 POWER button 11 SUBTITLE button 12 FREEZE button 13 FAV.CH button 14 MUTE button 15 SLEEP button 16 Digit buttons (0-10+) 17 JUMP button 18 INFO button 19 VOL + button 20 VOL - button 21 INPUT button 22 EXIT button 23 Arrow buttons... -
Page 11: Operation
AL2425CI Operation All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. Quick start General functions ● To switch on the appliance, press the POWER button (10). To switch back to the standby mode, press the POWER button (10) again. -
Page 12: Tv Setup Menu Operation
● To select a channel, press in the number with the digit buttons (16). Alternatively, use the CH +/- buttons (28/29) to zap through the channel list. ● To recall to the last viewed program, press the JUMP button (17). ●... - Page 13 AL2425CI ● ASPECT RATIO: to set the screen size. In TV mode, the following settings are available: Auto/4:3/16:9/Zoom1/Zoom2. In VGA mode, the following settings are available: 4:3/16:9. ● NOISE REDUCE: to switch the noise filter ON or OFF Sound menu ●...
-
Page 14: Tv Functions
Channel menu This function is available in TV mode only. ● AUTO SCAN: press the OK button to start the search program that sets the available channels automatically. ● DTV MANUAL SCAN: to start a manual search for digital channels. ●... - Page 15 AL2425CI ● To select the size of Teletext page: - Press the SIZE button (37) once to enlarge the upper half of the page. - Press the button once again to enlarge the lower half of the page. - Press the button once again to cancel the function.
-
Page 16: Cleaning And Maintenance
Cleaning and maintenance WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. ● Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. Troubleshooting Trouble Action... -
Page 17: Technical Data
AL2425CI Technical data Parameter Value Voltage 230 V /12 V Power consumption 52 W Standby power consumption 0,8 W Max power output 2 x 3 W (RMS) Dimensions (W x H x D) without foot 573 x 401 x 40 mm... -
Page 18: Disposal Of Used Electrical And Electronic Equipment
For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu... - Page 19 Heeft u na het lezen van deze handleiding nog vragen? Neemt u dan contact op met AKAI Benelux via: 0900-3555333 Avez-vous des questions après avoir lu ce manual? Contactez AKAI Benelux par téléphone au : 070-355505 www.akai.eu...
