Summary of Contents for Sammi Paytech Sammi Paytech SmartPay Plus
- Page 1 SmartPay Plus Quick Reference Guide Sammi Paytech co.,ltd Ver 1.0 June. 2010 Page 1 6/24/2010...
- Page 2 Disclaimer SmartPay Plus are registered trademarks of SAMMIPAYTECH Co., Ltd. All other brand names, product names, or trademarks belong to their respective holders. Head Quarters SAMMIPAYTECH Co.,Ltd. 496 Woncheon-dong, youngtong-gu, Suwon-shi, Kyungki-do, Korea Tel. 82 -31-211-5596~7 / Fax. 82-31-217-8254 Web. www.sammipaytech.com Sales Office 1057-3 Namhyun-dong, Goanak-gu, Seoul-shi, Korea...
- Page 3 FCC Compliance Information This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Table Of Contents
Table of Contents Introduction..............................6 Chapter 1 Get to know more about SmartPay Plus ..................7 Make sure you have everything....................... 7 1.2 Appearance............................8 1.2.1 Front side..........................8 1.2.2 Rear side............................9 1.2.3 Top & Bottom side ........................ 10 1.2.4 Left and Right side........................11 Chapter 2 Hot Keys ............................ - Page 5 Version information ........................... 25 Main Screen.............................. 25 Select Tag ..............................25 TagInfo (EAS/AFI/DSFID) ......................... 25 Detail................................. 25 ReadTagAll ............................25 OneReadTag ............................25 WriteTag ..............................25 LockTag ..............................25 Finger Print ............................ 25 Camera ............................25 Operating System upgrade manual ....................25 Chapter 8.
-
Page 6: Introduction
Introduction This quick reference guide allows you to use all the advanced features of SmartPay Plus effectively. Please go through it once before using SmartPay Plus handheld terminal. Page 6 6/24/2010... -
Page 7: Chapter 1 Get To Know More About Smartpay Plus
Chapter 1 Get to know more about SmartPay Plus Make sure you have everything SmartPay Plus main unit Stylus Pen Standard battery pack ( 1800 mAH Li-ion Power adapter Synchronization cable (USB cable) Backup battery 110mA Lithium-ion (Embedded) Optional accessories ... -

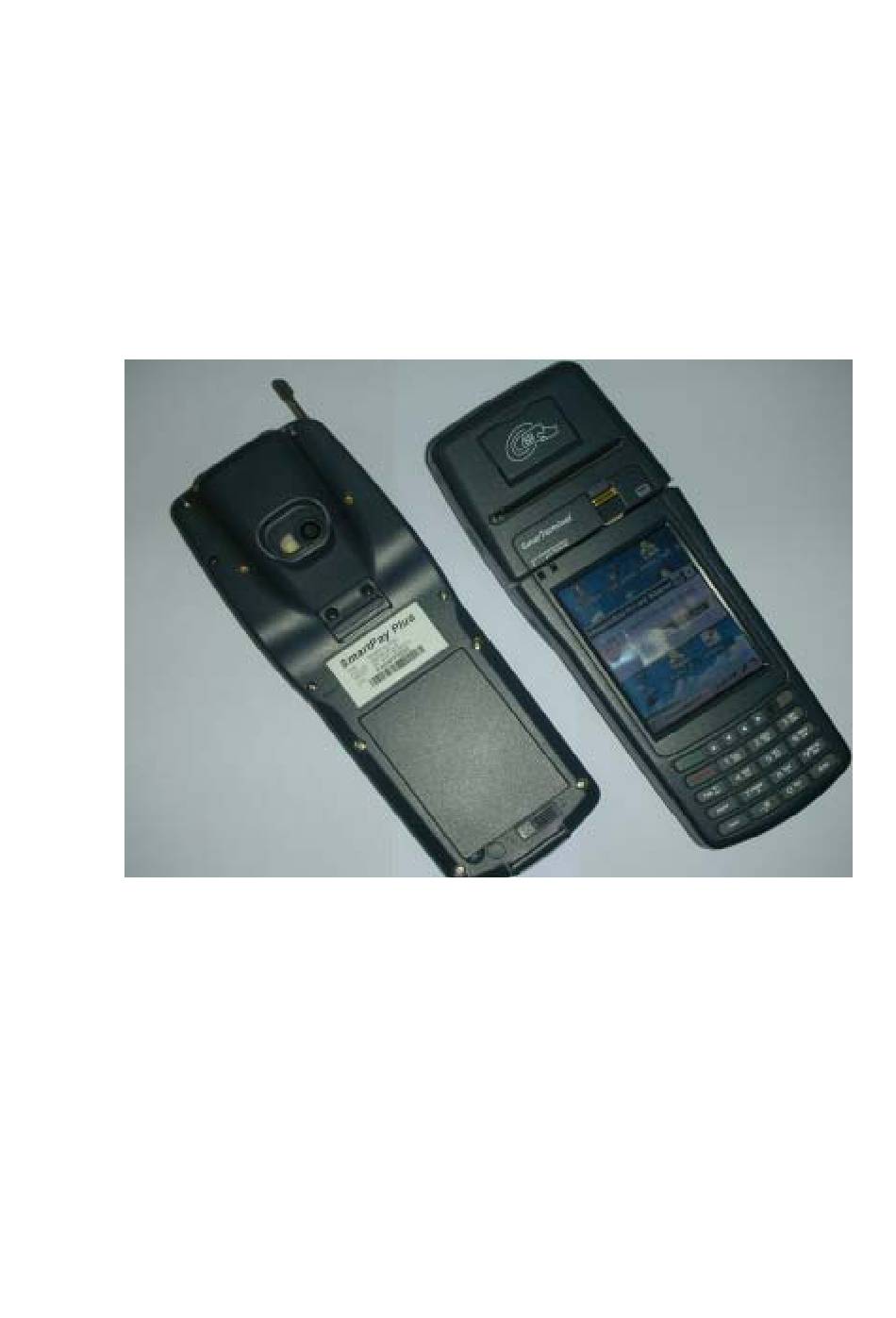

Page 8: 1.2 Appearance
1.2 Appearance 1.2.1 Front side Features and description Features Function / Description Printer Machanism 2inch thermal type printer and 30Ø Roll paper RFID Reader To read the contactless IC Card by touching the printer cover Communication & It is blinking while running Scanner LED indicator Finger Print Sensor To scan and verify finger print as the registered one. -
Page 9: 1.2.2 Rear Side
1.2.2 Rear side Rear panel features Name Function / Description Stylus pen To use for touch screen Hand strap To hold SmartPay Plus unit Main Battery To give Dc power to SmartPay Plus Battery lock switch To lock/unlock battery pack Reset key To perform warm and cold reset Camera &... -
Page 10: Top & Bottom Side
1.2.3 Top & Bottom side Features and description Features Function / Description 1D Scanner window While scanning the scanner beam is emitted and absorbed through this window I/O port To connect to other devices using synchronization cable Page 10 6/24/2010... -
Page 11: Left And Right Side
1.2.4 Left and Right side Features and description Features Function / Description Left Scan key To scan the barcode user should press this key also known was hardware scan key. Right Scan key To scan the barcode user should press this key also known was hardware scan key. -
Page 12: Chapter 2 Hot Keys
Chapter 2 Hot Keys Keys Front panel keys description Key name Functions description Navigation keys Default -- To move the cursor left, right, up and down In Function mode <up> To increase intensity of backlight <down> To reduce intensity of backlight <right>... - Page 13 In numeric mode In function mode In alpha mode <1> Prints number 1 on editor screen Functions as “Ctrl” key on To switch to Caps lock keyboard mode <2> Prints number 2 on editor screen Functions as “Alt” key on To print a/ b/c on keyboard editor screen...
-
Page 14: Chapter 3 Power Settings And Connections
Chapter 3 Power settings and connections Power management SmartPay Plus works on DC power. A standard lithium ion battery pack (7.4V, 1800 mAH) is provided for Dc power input to SmartPay Plus. Charging time is 5 hours with 10 operation and 100 standby hours. Battery low (below 10%) condition is indicated with Blue power LED. - Page 15 Awake mode while charging Page 15 6/24/2010...
-
Page 16: Turn On Smartpay Plus
Power schemes Device status Turn on SmartPay Plus Check the backup battery switch position, to turn on SmartPay Plus unit it has to be up position. Use stylus pen to turn it on. Connect the main battery to SmartPay Plus main unit. Make sure that battery is fully charged for 5 hours, before it is used first time. -
Page 17: Chapter 4 Operation Modes
Chapter 4 Operation modes Normal mode In normal mode all functions will be available and SmartPay Plus will be active. Suspend mode In suspend mode SmartPay Plus will look, as if it is turned off. SmartPay Plus can be put in suspend mode in following ways: Holding down the power key for 3 seconds, when it is on. -
Page 18: Chapter 5 Resetting Smartpay Plus
Chapter 5 Resetting SmartPay Plus Resetting means closing all applications and refreshing RAM (Random Access memory) This is done in two ways: Warm Reset If handheld hangs in between and stops responding, please perform warm reset. In order to perform warm reset, press (one touch) software reset button till handheld starts rebooting. Warm reset restarts the handheld by closing all the running programs. - Page 19 Ver . SP0.03 Ver . SP0.03 Ver . SP0.03 Page 19 6/24/2010...
-
Page 20: Difference Between Cold And Warm Reset
Difference between cold and warm reset Topic Warm reset Cold reset Reason for reset If application hangs If operating system locks up and warm reset does not work Refresh status It closes all applications It closes all applications Preserves file system Refreshes RAM Clears Files too Procedure to... - Page 21 Task bar Start button Keyboard icon It has the following 1 Task bar 2 Start button 1 Task bar: The task bar at the bottom of the screen displays the start menu icon, icons for the active programs, the current time and system icons for utilities loaded in memory. It has keyboard icon, which opens and hides the soft input panel (SIP).
-
Page 22: Calibrating The Touch Screen
Run command > To run programs directly Soft Input panel (SIP) The keyboard button allows user to open or close the onscreen keyboard. The keys of a keyboard can be used by tapping them using stylus pen. Calibrating the touch screen In order to use stylus pen on touch screen it is necessary to calibrate the screen first It can be done in following ways Start >... -
Page 23: Setting Up Wlan Card
Setting up WLAN card In order to set WLAN settings 1 Open wireless settings screen using Function + home key, same key combination can be used again to exit the wireless LAN. 2 Select the network which need to be accessed and tap the connect button. 3 To add a new network, double tab on Add new and select the network from the list. -
Page 24: Volume / Sound Control
For IP address Obtain an IP address via DHCP (Dynamic host configuration protocol) > to get automatic IP address, if this fails Specify an IP address > Enter IP address and Server address and select <OK>, it connects to the network. User can use any browser to access internet. - Page 25 Volume - Adjust the volume as per the requirement using slider and check boxes. Sound - Select sounds as per the requirement for each event. Page 25 6/24/2010...
-
Page 26: Date/Time Settings
Date/Time settings In order to set date and time do the following Method 1 Start > settings > control panel > Date and time > Date and time properties dialog will show up. Method 2 Double tap on the time on the task bar which will open up Date/time properties screen. Change Date and time as per the requirement. -
Page 27: Chapter 7. Applications And Operations
Chapter 7. Applications and operations 7.1. Scanning Barcode (1D/2D CCD type scanner ) CCD Charge coupled device technology scanner consists of a series of light-sensitive circuits that capture the reflected light and register its intensity and color after it is reflected from a series of mirrors. It utilizes the same technology that video cameras use. -
Page 28: 7.2 1D/2D Scanner Configuration Settings
7.2 1D/2D Scanner configuration settings Select Start > Programs > Control panel > Scanner configuration icon Before you begin This Application consists of the following 5 Tabs. 1. Basic -- Changes the default settings of Barcode scanner. 2. Symbologies -- Select the types of Symbologies. 3. - Page 29 Menu option Function Trigger time out Scanning time in seconds, which is the waiting time to read a barcode exactly. Keyboard Emulation There will be no keyboard event after scanning barcode, scanned data (Disabled) will be transferred directly to the user application Keyboard Emulation Type writing Shows encrypted barcode as alphanumeric form...
- Page 30 Barcode type Detail setting values for particular barcode type Maximum and minimum length of the barcode belonging this barcode type Page 30 6/24/2010...
- Page 31 Scanner configuration version Scanner firmware version Restore back the factory scanner’s configurations Menu Option Function Sound To activate beep sound Setting Good Read Tap on this button allows to select the (*.wav) sound file for beep “On success of barcode scanning” The selected file name will be displayed in the fill-in above Setting No Good Read Tap on this button allows to select the (*.wav) sound file for...
-
Page 32: Demonstration Program For 1D / 2D Scanner
Demonstration program for 1D / 2D Scanner To start the demonstration program Start > Programs > Scanner > ScanDemo Startup screen for 1D Scanner Scan type will appear Scan value will appear Select it for Auto-scan Select it for beep To start scanning Select it for Vibration Startup screen for 2D Scanner –... - Page 33 Scan type will appear Scan value will appear Select it for beep To start scanning Select it for Vibration For Scanning bar code user can either press SCAN START button once or one of the hardware buttons on the left/right side of the SmartPay Plus unit. The result will be same for both procedures. After successful barcode...
- Page 34 In auto scan mode, once the < Scan start > button is pressed, the scanning beam will continuously come till <Scan stop> button is pressed. Start > Program > Run wordpad Scan start > Scanned barcode data will get copied to wordpad Page 34 6/24/2010...
-
Page 35: Printer Demonstration Program
Printer demonstration program 1. Double click msrprt_test.exe. 2. Initial Screen Page 35 6/24/2010... - Page 36 3. Enter card number. 4. Enter Valid period of the card. Page 36 6/24/2010...
- Page 37 5. Enter amount to pay. The last two digits are Cent unit and decimal point is omitted. Above is 34 dollars and 56 cents. 6. When clicking non-entering block, keyboard will disappear. Page 37 6/24/2010...
- Page 38 7. Click ‘Prt English’ button to print. 8. Click ‘Exit’ button to close program. Page 38 6/24/2010...
-
Page 39: Rfid Demonstration Program
RFID demonstration program Run RFDDemo Program 1. Start-> Programs-> RFID_M4_Beta0-> RFDDemo Click 2. If the problem has been failed to run 2. If the program runs properly you will you will need to check the device see the Main Screen of the program as properly and try again. -
Page 40: Version Information
Version information If you’d like to see version information of the program please follow as below. Click Help-> Click ModuleInfo Tab.. You are able to see Demo version and Module information. <Firmware TABLE> FirmwareVersion <0101060F> Support for a variety of ISO15693 compliant tags (NXP I-Code SLI SL2 ICS20, TI Tag It HFI Plus, Pro and Standard, Tagsys C370, ST Micro LRI512, LRI2K, LRIS2K) SkyeTek Secure Memory Features (AES128, 192 and 256 for Encryption, SHA256 and SHA1 for Hashing) FirmwareVersion <0103060C>... -
Page 41: Main Screen
Main Screen Main Screen configuration You can see the Tag value after reading in the boxes You can see History of read tags on this field.. To clear history To return to main screen when windows ... -
Page 42: Taginfo (Eas/Afi/Dsfid)
To read TagID, click the button You are able to see and select tag data from the field TagInfo (EAS/AFI/DSFID) Click TagInfo Displays Tag information which is being read currently. You can identify value of EAS/ AFI/ DSFID by clicking Get button of each line. You can set value of EAS/ AFI/ DSFID by clicking Set button of each line. -
Page 43: Readtagall
ReadTagAll commend is automatically executed when TagDetail runs. To read whole memory of the tag To read data of address number which indicated on . Reading address 0 is default if there’s no selection ... - Page 44 Page 44 6/24/2010...
-
Page 45: Onereadtag
OneReadTag To check one memory of the address from the tag [OneRead] Enter address number and Or select it from ListBox. click Read button. You’ll see the selected data on the box. Page 45 6/24/2010... -
Page 46: Writetag
WriteTag To write data on wanted memory of the address Click Write button after enter wanted address number and data. Success message appears and the list refreshes when writing succeed. Fail message appears when data has been When there’s no tag to write. Page 46 6/24/2010... -
Page 47: Locktag
locked or failed during the writing process. LockTag To lock data on wanted memory of the address in order to protect the data Page 47 6/24/2010... - Page 48 Click Lock button after entering address number or clicking chosen one from the listbox. Success message appears and Lock status changes when Locking process succeed. In case of no tag. Page 48 6/24/2010...
-
Page 49: Finger Print
Finger Print Program execution : Character Screen > AE2510_Demo Page 49 6/24/2010... - Page 50 1. Single ○ 1) Selects single mode. 2) To read the fingerprint in the fingerprint recognition sensor. 3)Image Capture Successful. 4) The imageTap from will be able to confirm. 2. Continuous Page 50 6/24/2010...
- Page 51 ○ ○ ○ ○ 1)Press the “Continuous button” 2) you can see waiting signal(②) 3)next, image capture successufully. 4) waiting..next capture 3. Enroll / Identify Page 51 6/24/2010...
- Page 52 User enroll Finger Print and identify. Page 52 6/24/2010...
-
Page 53: Camera
Camera 1.Exeute Program execution: Character screen \ Cam_Demo 2. Preview . Presses Power buttons from the first screen and with like the second time picture sees in advance, is executed . Flash buttons will press and is a possibility flash the reverse sides On/Off . - Page 54 The third picture will be able to select the format which sees from the album. The second time picture the fact that shows the image and three re-pictures are the screen which list shows the name of file especially from the format which sees. 4.
-
Page 55: Operating System Upgrade Manual
Operating System upgrade manual Please follow the steps below to upgrade the operating system on SmartPay Plus. 1 Copy the OS file of “nkupd.bin" to MICRO SDcard. 2 Insert MICRO SDcard Page 55 6/24/2010... - Page 56 3 . Cold Reset the PDA and then you must press the Power Key for os upgrade over 2 second 4. PDA will automatically search for OS to update in MICRO SDCard or SD Card. If there's OS file to update, move to (No.6) 5.
- Page 57 6. Press ”Home key”. Update start & Reads SD Card(scnk.bin) 7. If there were no OS file you can see below screen 8. OS upgrade done Page 57 6/24/2010...
- Page 58 9. Remove SD card when update completed. Execute the HW Reset Ver. SP0.03 10. Image booting Ver. SP0.03 Page 58 6/24/2010...
- Page 59 11. Check the OS version in Control Panel > System 12 double click System to check OS Version Page 59 6/24/2010...
-
Page 60: Chapter 8. Accessories And Peripheral Devices
Chapter 8. Accessories and peripheral devices Using Stylus pen The stylus on the PDA is same as mouse on a PC. Usage of stylus 1 Navigate the touch screen display 2 Select characters in soft input panel 3 Select applications from the desktop or system tray 4 Select buttons, tabs, fields and text within applications and editors Using CDMA (Code Division Multiple Access) module (Optional) CDMA1-X1 (class B) can be used with SmartPay Plus through compact flash slot which is available on... -
Page 61: Chapter 9. Pc Interface
Chapter 9. PC Interface Ms ActiveSync Installation It is possible to connect SmartPay Plus to Host Pc using synchronization cable. Attach one end of synchronization cable to Sync port which is on bottom side of SmartPay Plus and USB end to host Pc. It is necessary to install Microsoft ActiveSync program. Following is a procedure to install Ms ActiveSync program on PC. - Page 62 Detect the directory for installation and select “Next”. Select “Install”. Installing Page 62 6/24/2010...
- Page 63 Select “Finish” to complete the installation. Select “Yes” to reboot the Pc. Page 63 6/24/2010...
-
Page 64: Usb Activesync
USB ActiveSync To operate ActiveSync program in PC Start > Program > Microsoft ActiveSync For PC ActiveSync settings File > Connection Settings > Select between USB ActiveSync Connections as per requirement. In USB ActiveSync connections, check “Allow USB connections” and Select “Ok”. Allow connections to one of the following, Page 64 6/24/2010... - Page 65 Connecting As soon as the connection is successful following dialog box will be displayed on host PC. To see the files on SmartPay Plus , click on explorer . Page 65 6/24/2010...
- Page 66 Also there will be status icon in system tray to show the status of connection between SmartPay Plus and Host PC. User can open ActiveSync program by clicking on the icon. Connected Disconnected Data Transfer Page 66 6/24/2010...
