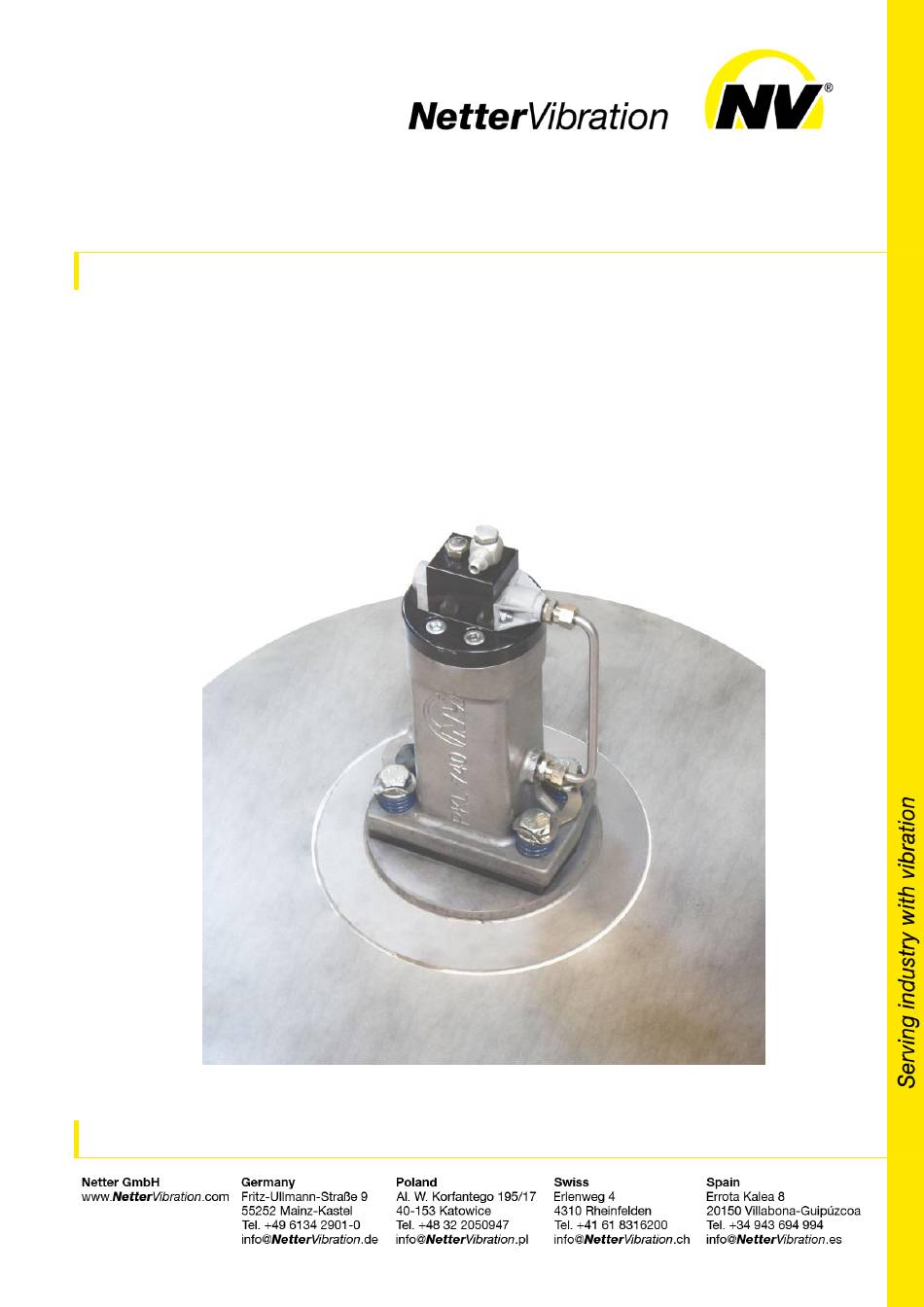

NetterVibration NKK Assembly Instructions Manual

Glueing consoles
Hide thumbs

Advertisement

Quick Links

Download this manual
Oct. 2018
Assembly instructions for
No. 1716E
Netter glueing consoles
Page 1/14
of the series NKK
These assembly instructions apply to:
NKK

Advertisement

loading
Need help?

Need help?

Do you have a question about the NKK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NetterVibration NKK

  • Page 1 Oct. 2018 Assembly instructions for No. 1716E Netter glueing consoles Page 1/14 of the series NKK These assembly instructions apply to:...

  • Page 2: Table Of Contents

    Check the packaging for possible transport damage. In the event of damage to the packaging, check the contents for completeness and possible damage. Inform the carrier in the case of damage. Designation The glueing consoles of the series NKK are hereafter referred to as „NKK“. Version Document no.

  • Page 3: General Information

    General information Before installing the NKK read these instructions carefully. It is the basis Use and for any action when dealing with the NKK, and may be used for training storage purposes. The instructions should be subsequently stored at the operation site.
  • Page 4 General information Instruction The following instruction and warning symbols are used in these instruc- and warning tions: symbols Personal DANGER injuries signifies an immediate danger. Disregard of this notice will result in death or severe bodily injuries. WARNING signifies a potential danger. Disregard of this notice can result in death or severe bodily injuries.

  • Page 5: Safety

    Rust-free IMPORTANT surfaces The NKK may only be glued to rust-free steel or stainless steel surfaces. Use on other materials must be clarified with NetterVibration. Data sheets IMPORTANT Before use, read the technical data sheets and safety data sheets of the primer (adhesion agent), glue and cleaner for precautions and safety in- structions.

  • Page 6: Technical Data

    -20 °C to 100 °C ture operating conditions Processing tem- 15 °C to 40 °C perature Series name The following NKK types are available: NKK G for flat smooth surfaces NKK R for cylindrical smooth surfaces NKK K for conical smooth surfaces...

  • Page 7: Design And Function

    Glue Adhesive surface Function NKK are fastening devices for pneumatic or electric Netter vibrators. The vibration is transmitted evenly to the glued container wall by elastic glue. A previously applied primer increases the adhesion of the glue to the glueing surface.

  • Page 8: Transport And Storage

    Transport conditions Packaging The NKK are packed and ready for assembly. Accessories and add-on parts are delivered unmounted, unless otherwise agreed upon. The packaging protects the NKK from transport damage. The packaging material has been selected from an environmentally safe and technically disposable point of view and is therefore recyclable.

  • Page 9: Installation

    Yardstick Adhesive tape Utility knife Cleaner Procedure When installing the NKK carry out the following steps in succession: 1. Remove loose surfaces or any coatings, Pre-cleaning paints, etc. before glueing. surfaces 2. Clean the surfaces onto which the glue is applied with an alcoholic solution, e.g.
  • Page 10 NKK with bolts (lbottom surface) NKK for PKL (upper surface) 1. Stick the supplied glue strips all around Attaching glue on the bottom surface of the NKK so that strips the ends of the glue strips almost touch each other.
  • Page 11 50 ml cartridge or the first 10 ml in the 400 ml cartridge. Dispensing applicator, cartridge and static mixer 1. Fill the glue in the drill holes of the NKK. If Filling in glue vertically mounted, start in the middle of the NKK at the bottom.
  • Page 12 Further information can be found in the oper- ating instructions of the respective Netter vibrator. Mounted vibrator QR code for For the online assembly instructions of the NKK scan the following QR installation code or use the link: https://www.youtube.com/watch?v=AkO-kw0fpa8 Checklist...

  • Page 13: Spare Parts And Accessories

    Ordering of spare parts  required amount  description and position of spare part  type of NKK Possible The following accessories are available for the NKK: accessories Component Description Glue For glueing the NKK to a mounting surface Dispensing applicator...

  • Page 14: Annex

    Annex Annex Please observe the technical data sheets and safety data sheets of the Data sheets primer and glue. These are available on request from NetterVibration.
