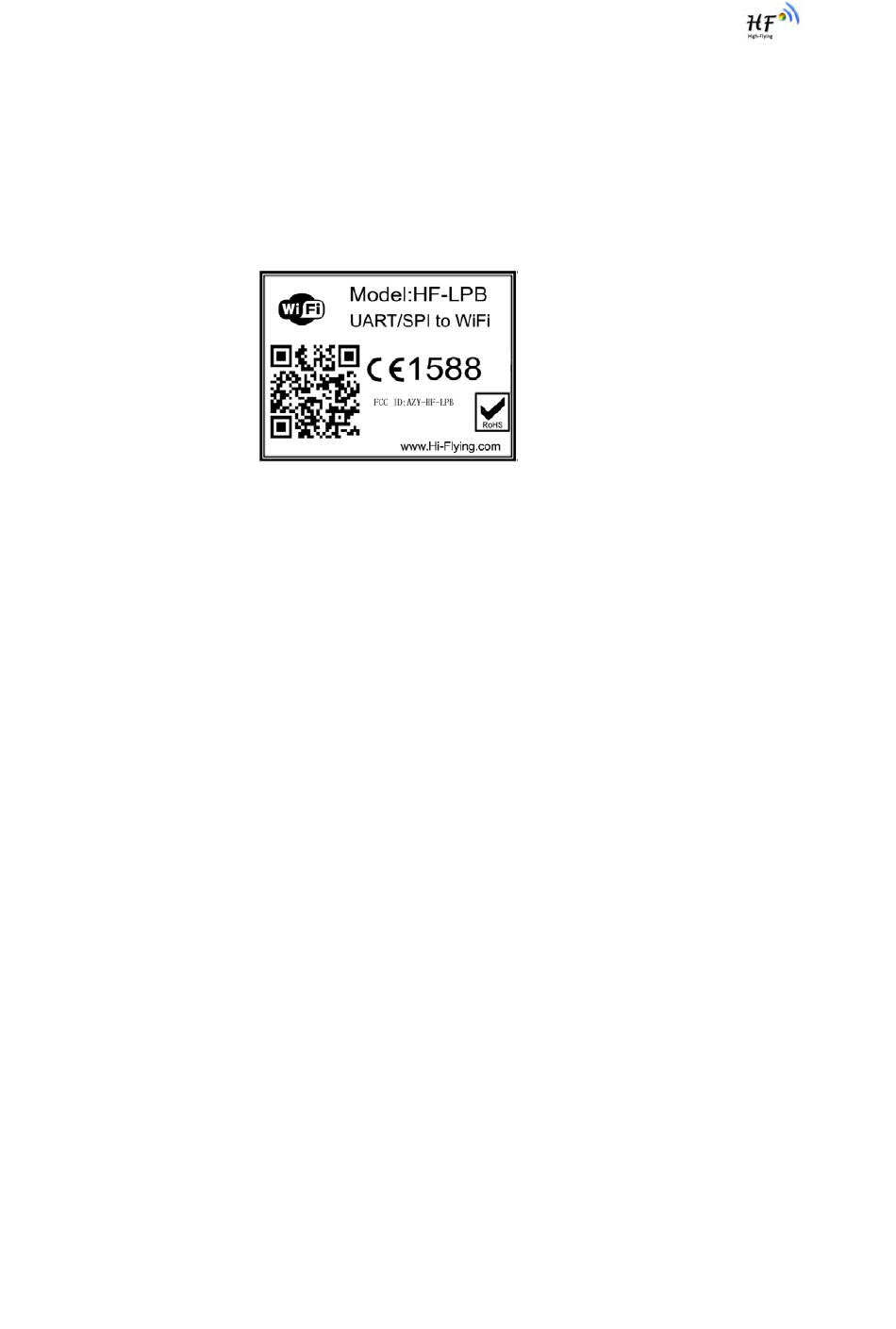

HF-LPB Low Power WiFi Module User Manual
Low Power WiFi Module User Maunal
Copyright
Hi-flying is a registered trademark of Hi-flying Incorporated. Copyright ©
2012 Hi-flying Incorporated. All rights reserved. No part of this publication
may be reproduced or distributed in any form or by any means, or stored
in a database or retrieval system, without the prior written permission of
the publisher. Hi-flying Incorporated reserves the right to make changes in
technical and product specifications without provisional notification. This
module is limited to OEM installation only and must not be sold to end-
users. OEM integrators must be instructed to ensure that the end-user has
no manual instructions to remove or install the device. The end-user can
not remove or install this module to any other devices.
Changes or modifications not expressly approved by the manufacturer
could void the user's authority to operate the equipment.
If the FCC ID of the module cannot be seen when it is installed, then the
host label must include the text: Contains FCC ID: AZY-HF-LPB
Shanghai High-Flying Electronics Technology Co., Ltd
HF-LPB
V 1.1
www.hi-flying.com
- 1 -
