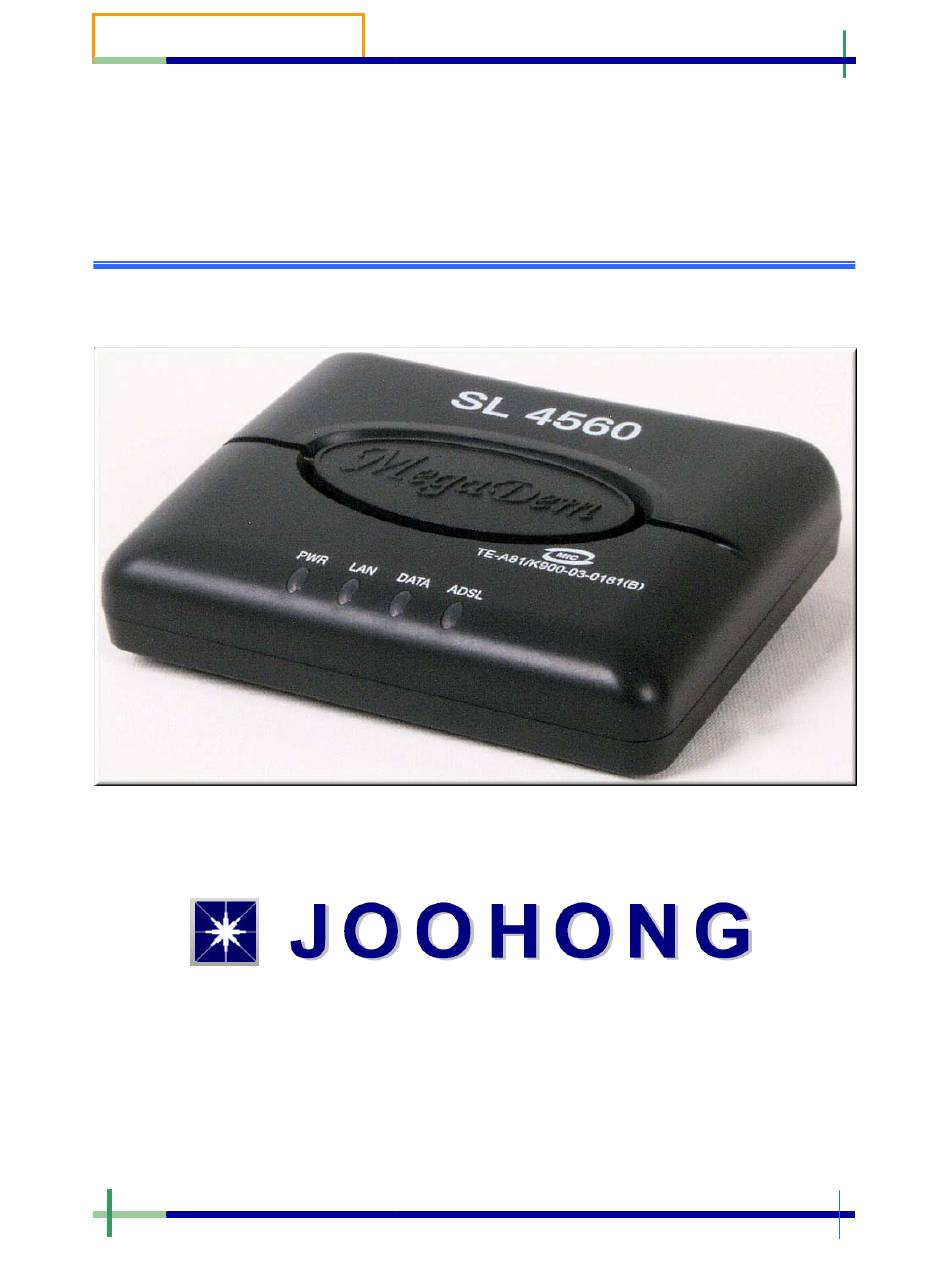

SL-4560 ADSL Modem
ADSL External Modem (SL-4560)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-4560 and is the answer not in the manual?

Questions and answers

Summary of Contents for Joohong SL-4560

  • Page 1 SL-4560 ADSL Modem ADSL External Modem (SL-4560)
  • Page 2 SL-4560 ADSL Modem FCC NOTE :This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 3: Table Of Contents

    1.2 SL-4560 ADSL Modem / Frontside ……………………………………………… 1.3 SL-4560 ADSL Modem / Backside………………………………………………… 1.4 contents in the package……………………………………………………………… 1.5 Network configuration………………………………………………………………… 2. Set up the SL-4560 ADSL Modem ……………………………………… ………………………………… SL-4560 ADSL Modem Web management start Main menu …………………………………………………………………………………… 2.1 Status Information ………………………………………………………………………...

  • Page 4: Introduction Of Sl-4560 Adsl Modem

    SL-4560 ADSL Modem 1. Introduction of SL-4560 ADSL Modem...

  • Page 5: Adsl

    SL-4560 ADSL Modem 1.1 Introduction of ADSL ADSL means ‘Asymmetric Digital Subscriber Line’. Using word of ‘Asymmetric’, because there are difference between upstream speed and down stream speed. As you could see in the diagram below, downstream use more wide bandwidth than upstream.

  • Page 6: Sl-4560 Adsl Modem /Frontside

    SL-4560 ADSL Modem 1.2 SL-4560 ADSL Modem /Frontside The Front of SL 4560 <Picture 1-2> the front of SL-4560 ADSL LED Explanation. Color Status Description Power on Green Power Off Blinking Data transfer Green Connected with user PC Blinking Data transfer through WAN...

  • Page 7: Sl-4560 Adsl Modem / Backside

    Connect with LAN port of PC PWR SW Power Switch For ground DC 5V For Power adapter <Table 1-2> SL-4560 ADSL / Backside / Name and Function 1.4 Contents in the Package Please check the contents in the package. <Picture 1-4> Contents in the package...

  • Page 8: Network Configuration

    SL-4560 ADSL Modem 1.5 Network configuration setup ※ Before you make the connection with modem Windows 95/98/Me 1. [Start] → [Control Panel] → [Network], in the ‘Local Area connection property’, choose the ‘TCP/IP’. Please click ‘Property’.
  • Page 9 SL-4560 ADSL Modem 2. In ‘TCP/IP Properties’, please check the ‘Obtain an IP address Automatically’ and ‘Obtain an DNS Server address Automatically’. 3. Click ‘OK’. 4. If prompted to restart your computer, do so.
  • Page 10 SL-4560 ADSL Modem Windows 2000/NT [Start] → [Settings] → [Control panel] ‘Network and Dial-up Connections’ double click it. ‘Network and Dial-up Connections’ → ‘Local Area Connection’ Double click.
  • Page 11 SL-4560 ADSL Modem In Local Area Connection Status, click ‘Properties’. ‘Local Area Connection Properties’ → ‘Internet Protocol(TCP/IP)’ → ‘Properties’ click.
  • Page 12 SL-4560 ADSL Modem 5. ‘Internet Protocol(TCP/IP) Properties’ → check ‘Obtain an IP address automatically ‘ → check ‘Obtain DNS Server address automatically’ → click ‘OK’ 6. Local Area Connection Properties → click ‘OK’ Local Area Connection Status → click ‘Close’...
  • Page 13 SL-4560 ADSL Modem Configuration for Win XP 1. [Start] → [Control panel] ‘Network and Internet Connections’ double click. 2. ‘Network and Internet Connections’ → ‘Network connections’...
  • Page 14 SL-4560 ADSL Modem 3. ‘Network Connections’ → ‘Local Area Connection’ double click. 4. In ‘Local Area Connection Status’, click ‘Properties’.
  • Page 15 SL-4560 ADSL Modem 5. ‘Local Connection properties’ → ‘Internet protocal(TCP/IP)’ check. click ‘Properties’. 6. ‘Internet protocol (TCP/IP) Properties’ → Check ‘Obtain an IP address automatically’. → Check ‘Obtain DNS server address automatically’. → Click ‘OK’.
  • Page 16 SL-4560 ADSL Modem 7. ‘Local Area Connection Properties’ → Click ‘OK’ ‘Local Area Connection Status’ → Click ‘Close’ ‘Network Connections’ → Click ‘Close’...

  • Page 17: Setup The Sl-4560 Adsl Modem

    SL-4560 ADSL Modem 2. SETUP the SL-4560 ADSL Modem...

  • Page 18: Sl-4560 Adsl Modem Web Management Start

    SL-4560 ADSL Modem ▶ SL-4560 ADSL Modem Web management start SL-4560 ADSL Modem support ‘Web Management’ Note : - Please connect Ethernet cable only, make a start with Web management and set-up the configuration. (Don’t make a connection with ADSL Line) - After set-up the configuration, make a connection with ADSL Line.
  • Page 19 SL-4560 ADSL Modem 2) Please type your user name and password. Administrator mode : You can configure all the setting value of modem User name admin Password admin User mode : You can check modem status only. User name user...

  • Page 20: Main Menu

    SL-4560 ADSL Modem ▶ Main menu 2.1. Status Information Connection status with DSLAM and other information like an IP address obtained from NAS.

  • Page 21: Quick Setup

    SL-4560 ADSL Modem 2.2. Quick Setup You could change the modem configuration. Input the PVC value of DSLAM and [Next]. Basically, using ‘make a connection with DSL automatically’ option.

  • Page 22: Pppoe(Rfc2516) Configuration

    SL-4560 ADSL Modem 2.2.1. PPPoE ( RFC2516 ) configuration 2.2.1.1. Select ‘PPP over Ethernet (PPPoE)’ and [Next] 2.2.1.2. Input ‘PPP User Name’, ‘PPP Password’, Select ‘PPP IP extension’ then Next] If you don’t check the ‘PPP IP extension’ then DHCP function of Modem will be...
  • Page 23 SL-4560 ADSL Modem 2.2.1.3. You could see the IP address of modem. Do not change the IP address. Then [Next] If you change the IP then, you have to input changed IP address for to start Web management. 2.2.1.4. After check the all the values and [Finish]...

  • Page 24: Bridge Mode(Rfc1483) Configuration

    SL-4560 ADSL Modem 2.2.2. Bridge Mode( RFC1483 ) Configuration – When you using IP DSLAM or My IP Service 2.2.2.1. In ‘Configuration wizard’, select ‘Bridging’ and [Next] 2.2.2.2. Displayed IP is the IP for web management. Do not change the IP address...
  • Page 25 SL-4560 ADSL Modem 2.2.2.3. Check the configuration and [Save and reboot] When you using the IP-DSLAM, you could use internet service after PPPoE LED turned on. This is one of example..

  • Page 26: Multi Ip(Ipoa) Configuration

    SL-4560 ADSL Modem 2.2.3. Multi IP (IPoA) Configuration 2.2.3.1. Multi IP (IPoA) diagram 2.2.3.2. Select ‘IP over ATM(Multi IP)’ then [Next]...
  • Page 27 SL-4560 ADSL Modem 2.2.3.3. ‘WAN IP Configuration’, Input the IP that you got from KT, then [Next] This is one of the example. WAN IP Address : IP that you got from ISP WAN Subnet Mask : Subnet Mask that you got from ISP...
  • Page 28 SL-4560 ADSL Modem 2.2.3.4. Do not check the ‘Enable NAT’ , ‘Enable Firewall’ options. Then [Next] Basically, ‘Enable NAT’ and ‘Enable Firewall’ would be checked. 2.2.3.5. Displayed IP is the IP for web management.
  • Page 29 SL-4560 ADSL Modem 2.2.3.6. Check the configuration and [Save/Reboot]. 2.2.3.7. After configuration finished, set-up the IP address of PC. This is one of the example.

  • Page 30: Dsl Configuration

    SL-4560 ADSL Modem 2.3. DSL Configuration Select the DSLAM and Modulation option and ‘Save/Apply’ If you choose Auto mode, modem will select Modulation mode that DSLAM service automatically. If Modulation mode selected not properly, connection will be failure. ( Default selection of Modem is Auto Mode. ) After you click the [Save/Apply] , modem try to make a connection with DSLAM.

  • Page 31: Diagnostics

    SL-4560 ADSL Modem 2.4 Diagnostics. You could see the modem status( LAN, ISP). (Diagnostics function could be varied by DSLAM ) 2.5. Modem Status ‘LAN-Statistics’ displayed network statistics After you click the [Reset statistics], Values will be ‘0’...
  • Page 32 SL-4560 ADSL Modem WAN : WAN displayed network statistics...
  • Page 33 SL-4560 ADSL Modem ADSL : ADSL Connection status and error log. If you click the [Reset], error values go to ‘0’...
  • Page 34 SL-4560 ADSL Modem ATM : Displayed status of ATM Layer and its error. If you click the [Reset], error values go to ‘0’...

  • Page 35: Tool - System Log

    SL-4560 ADSL Modem 2.6. Tool – System log You can check the system status. If you click the [View System Log], you can see the modem status as below.

  • Page 36: Tool- Software Upgrade

    SL-4560 ADSL Modem 2.7. Tool – Software update You can update the modem software with new one. 1. Save the update software in PC. 2. Browsing the new software that you saved by [Browse] button. 3. Select the [Update Software] and you can install the new software.

  • Page 37: Tool - Default Value

    SL-4560 ADSL Modem 2.8. Tool – Default value ‘Default Value’ function make all the configured value goes to the default value. Default value : PVC(0/32), Connection(PPPoE), Modulation(G.dmt) If you click the [Restore Default Configuration], System will restart automatically.
