Summary of Contents for TACKLIFE RES001

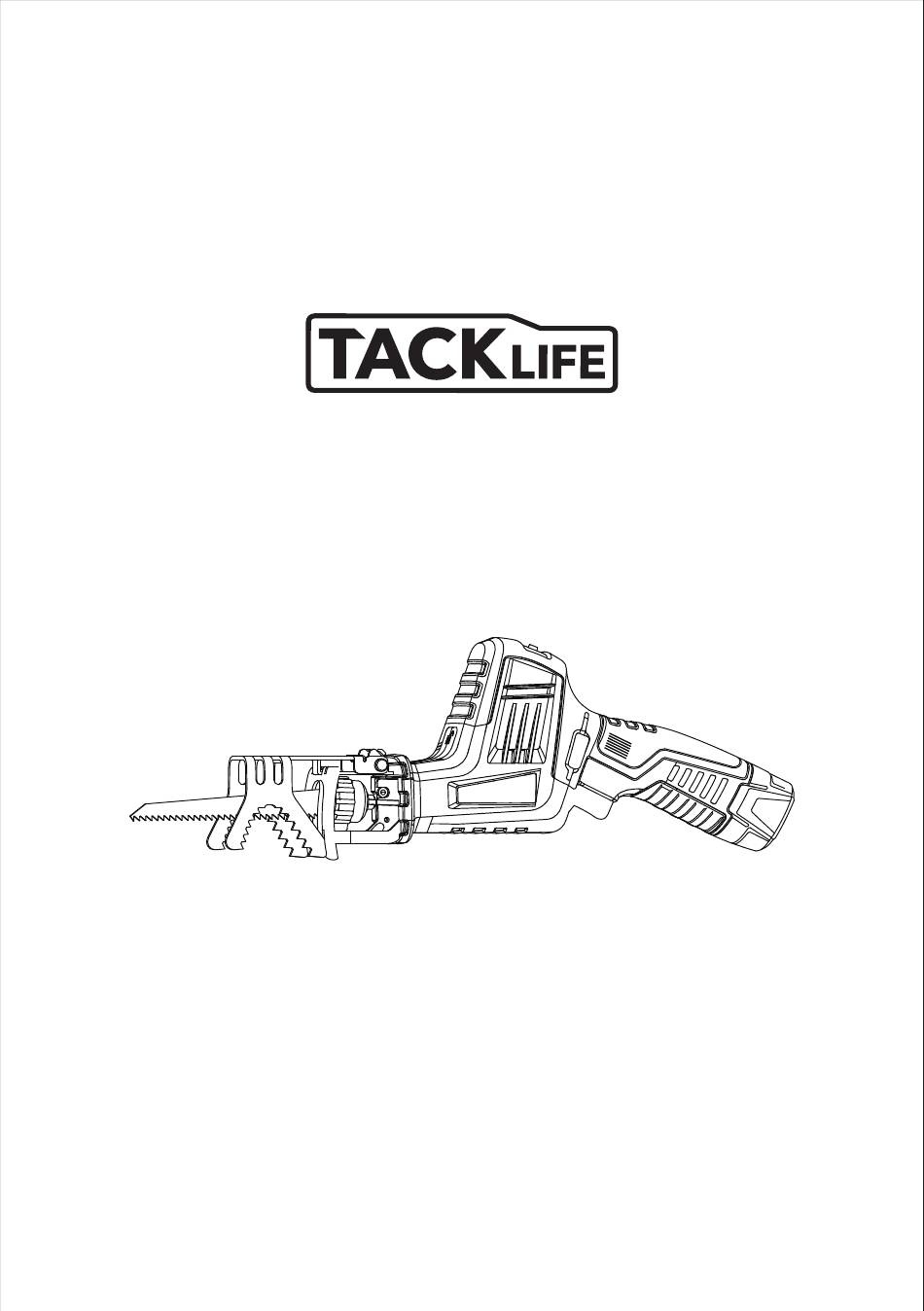

- Page 1 User Manual Reciprocating saw Model: RES001...
- Page 2 Contents English 01~10 Deutsch 11~21 Français 22~32 Español 33~43 Italiano 44~53...
-
Page 3: Technical Data
CORDLESS RECIPROCATING SAW Introduction To get the most out of your new cordless garden saw, please read through these instructions before use. We also recommend that you save the instructions in case you need to refer to them later. Technical data Battery: 10.8 V 1.5 Ah Li-ion Operating time (no load):... - Page 4 Special safety instructions ● This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Page 5 following operations The clamping jaw allows branches to be gripped, providing cutting of unsupported branches easier. When cutting wider branches or timber, the clamping jaw can be removed and the garden saw can be used as a standard reciprocating saw. Fitting the Clamping Jaw The clamping jaw can not be fitted or removed with the blade fitted.
- Page 6 Removing the clamping jaw Press and hold the clamping jaw release into the unlock position. Pull the clamping jaw away from the saw body. Cutting blades Caution! Do not handle blades without gloves as they are sharp and can become hot after use, potentially causing personal injury.
- Page 7 Insert the cutting blade into the blade holder. Release the blade holder and ensure the blade is secure by pulling on the blade. Removing the cutting blade Rotate and hold the blade holder anticlockwise. - 05 -...
-
Page 8: Charging The Battery
Remove the cutting blade from the blade holder. Charging the battery Warning! The power supply for this charger should be protected by a residual current device (rated at 30ma or less). A residual current device reduces the risk of electric shock. - Page 9 Once the battery is fully charged the green light will illuminate. Note: It will take 4-5 charging cycles before the battery reaches optimum charge and run time. Installing and removing the battery Push the battery into the battery seating at the rear of the garden saw until it clicks into place. To remove, push the battery release tabs on both sides of the battery and then remove from the tool.
- Page 10 Release the variable speed trigger to stop the garden saw. Cutting branches using the clamping jaw Ensure the blade and the clamping jaw is secured correctly and hold the saw firmly. Place the branch in between the clamping jaws and then lower to perform the cut. - 08 -...
-
Page 11: Maintenance
Cutting without the clamping jaw When cutting thicker branches or sawing wood or plastic the clamping jaws can be removed to prevent them getting in the way of the cut. Position the shoe of the saw onto the material to be cut for stability and then perform the cut holding the saw firmly. -
Page 12: Service Centre
All rights reserved. The content of this manual may not be reproduced, either in full or in part, in any way by electronic or mechanical means, e.g. photocopying or publication, translated or saved in an information storage and retrieval system without written permission from Tacklife - 10 -... - Page 13 Shenzhen Take Tools Co., Ltd. Web: www.tacklifetools.com Facebook: www.facebook.com/Tacklife.US E-mail: support@tacklife.net ADD: No.B714,Niulanqian Building, Minzhi Road, Longhua District, Shenzhen, Guangdong, China 518000...
