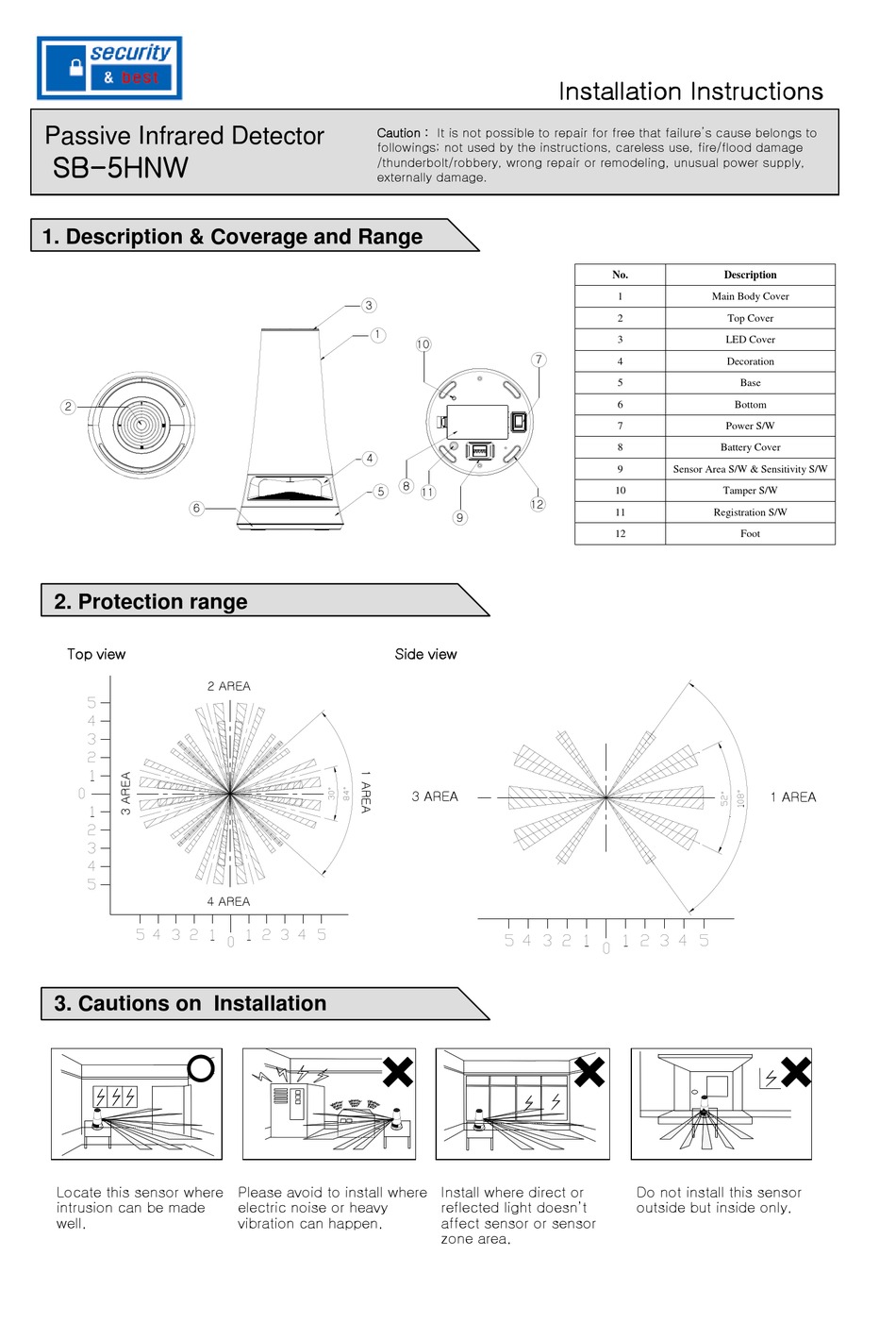

Security & Best SB-5HNW Installation Instructions

Passive Infrared Detector
SB-5HNW
1. Description & Coverage and Range
2
6
2. Protection range
Top view
2 AREA
4 AREA
3. Cautions on Installation
Locate this sensor where
intrusion can be made
well.
Caution : It is not possible to repair for free that failure's cause belongs to
followings; not used by the instructions, careless use, fire/flood damage
/thunderbolt/robbery, wrong repair or remodeling, unusual power supply,
externally damage.
3
1
4
8
5
Side view
Please avoid to install where
electric noise or heavy
vibration can happen.
Installation Instructions
10
7
11
12
9
3 AREA
Install where direct or
reflected light doesn't
affect sensor or sensor
zone area.
No. Description
구분 명 칭
1 Main Body Cover
1
MAIN BODY COVER
2 Top Cover
2 TOP COVER
3 LED Cover
3 LED COVER
4 4 DECORATION Decoration
5
5 BASE Base
6
BOTTOM
6 Bottom
7
전원 S/W
7 Power S/W
8 BATT COVER
8 Battery Cover
9
감지영역 S/W & 감도 설정 S/W
9 Sensor Area S/W & Sensitivity S/W
10
TAMPER S/W
10 Tamper S/W
11
등록 S/W
11 Registration S/W
12
FOOT
12 Foot
Do not install this sensor
outside but inside only.
1 AREA
