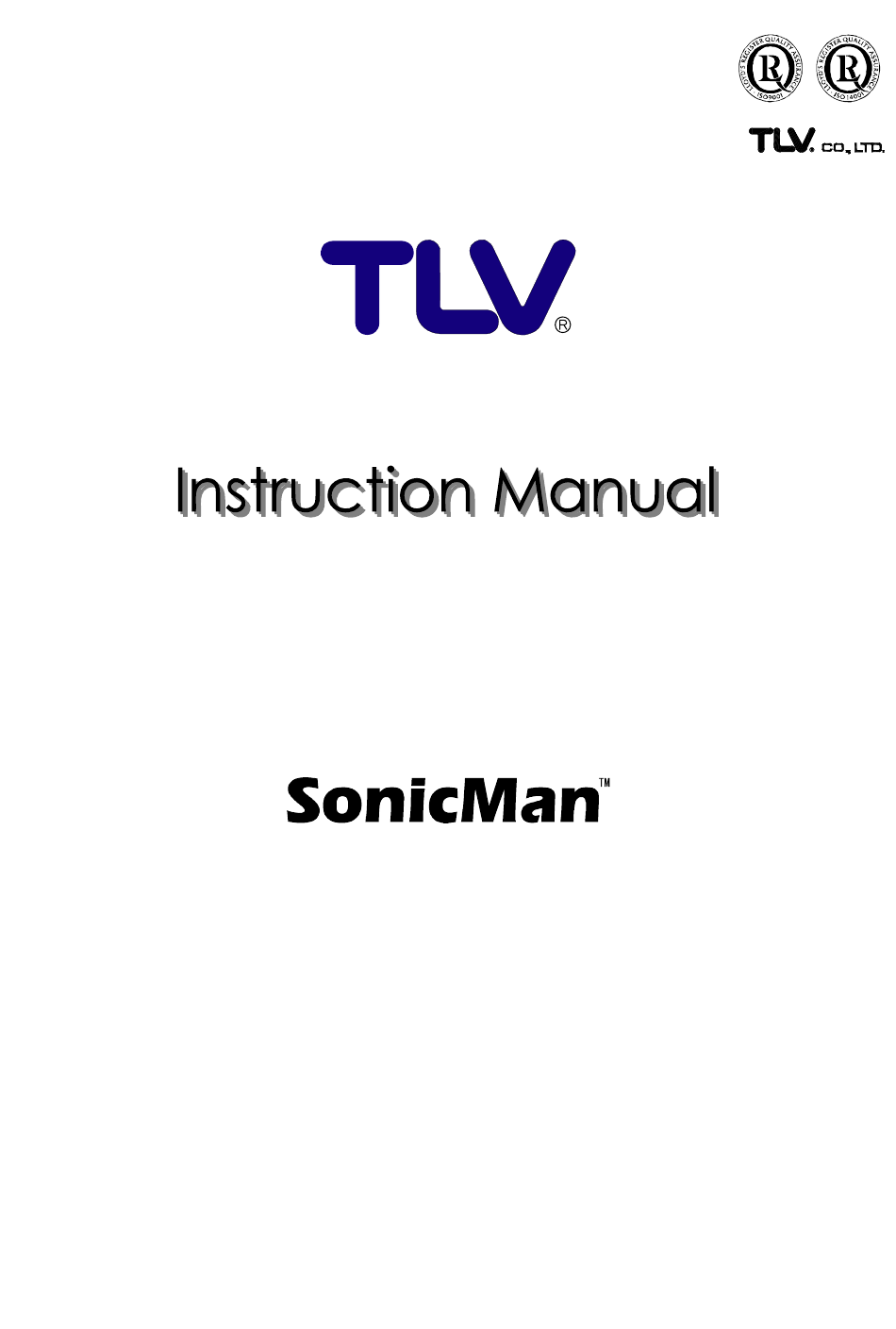

- Page 1 072-65251M-03 (SonicMan SO2) 21 Jun 2007 ISO 9001/ ISO 14001 Manufacturer Kakogawa, Japan is approved by LRQA LTD. to ISO 9001/14001 Gas Leak Detection System Ultrasonic Leak Detector SonicMan: S02(-EX) Copyright © 2007 by TLV CO., LTD. All rights reserved...
-
Page 2: Introduction
However, in the event of malfunction or defects, please contact your local TLV representative or the TLV customer service center. TLV accepts no responsibility for incorrect use of the product by the customer or any third-party, malfunction occurring during use, other defects and any damaged caused by this product, excluding cases in which it is under obligation to pay reparations by law. -
Page 3: Table Of Contents
Adjusting the Headphone Output Volume ..........24 7. Setting the Date & Time................24 8. Setting Data Communication Way............25 9 How to Use the Accessories..............26 10 Troubleshooting..................27 11 Specifications ..................29 12 Product Warranty ................31 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 4: Sonicman Standard Set
1. SonicMan Standard Set 1 SonicMan Standard Set 1. SO2(-EX) 2. Nozzle 3. Holster 4. Headphone 5. Battery Pack 6. Communications Cable for the PC 7. Battery Charger (Including AC adapter) 8. Storage Case <Position of Label> 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 5: Observe These Precautions To Ensure Safety
• The three types of cautionary items above are very important for safety: be sure to observe all of them as they relate to installation, use, maintenance and repair. Furthermore, TLV accepts no responsibility for any accidents or damage occurring as a result of failure to observe these precautions. -
Page 6: So2(-Ex) Precautions
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 7: Battery Pack Precautions
SonicMan unit. Failure charger with proper observe this precaution could result orientation. Forcible insertion could in battery pack failure, rupture or fire. PROHIBITED PROHIBITED result in fluid leakage, excessive heat generation, rupture or ignition. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... - Page 8 If at any time, whether before or after use, the battery pack becomes unnecessary, observe your company regulations and, after insulating the contact terminals by covering them with tape, return the battery pack to a TLV office. PROHIBITED...
-
Page 9: Charger Precautions
If use is continued under such conditions, fire or electrical shock may result. MANDATORY 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 10: So2-Ex Precautions
PROHIBITED Do not use standard type battery pack (Model SO1-101) for SO2-EX in areas requiring explosion-proof equipment. Only specified battery pack (Model SO2-101EX) can be used for SO2-EX in areas requiring explosion-proof equipment. PROHIBITED 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 11: Sonicman's Principle Of Detection
The calculation of leakage amount is made possible by using information, stored in SonicMan, that has been gained from previous laboratory experiments. 123 x 45 – 67 = 5468 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 12: The Procedure For Gas Leak Diagnosis
SonicLogger. layout map information into SonicLogger. After Returning to the Office Step 7: See the Step 8: See the SonicManager instruction SonicManager instruction Upload saved data from Print reports using SonicLogger to SonicManager. SonicManager. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 13: Sonicman Components And Features
[ ] and [ ] Buttons: These are used to modify sensitivity [Memory] Button: settings and to modify This is used to save the record number for or recall stored data. the saved data. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 14: Before Using The Sonicman
ON. If this occurs, double-click the trigger to turn the power OFF. 5) Remove the battery pack by following the above steps, except remove the battery pack in step 2 instead or inserting it. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 15: Let's Try It Out
This icon displays battery voltage in 4 levels. This is displayed when laser This displays the current sensitivity This displays the reading pointer output is setting as a quantitative value. as a quantitative value. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 16: Increasing And Decreasing The Sensitivity
S 50 2) When the [ ] button is released, the laser pointer beam is turned OFF and the “∗” mark disappears from the display. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 17: Estimating Leakage Amount
(b) Select the type of fluid that is leaking, and then press the [ENT] button. (c) The result from the leakage amount calculation is displayed (L:---), then the display changes to the record number confirmation screen. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... - Page 18 7) To Cancel the Input of Calculation Conditions before Input is Complete Pressing the [Func.] button causes the display to skip the conditions input screen and to jump to the record number confirmation screen. 072-65251M-03 (SonicMan SO2) 21 Jun 2007...
-
Page 19: Saving The Inspection Data In The Internal Memory
Over write? (overwrite), continue by pressing the [Memory] button L: --- S 50 one more time. (c) To save without overwriting, use the [ ] and [ ] buttons to select a different record number. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... - Page 20 No.001 Func. Distance 0.1m L --- S 50 Func. No.001 Memory Type Flange Condition No.CSL Data Not L: --- S 50 Recorded No.001 Direc. 0 degree or ? Condition Data Locked-in No.001 Fluid Air 072-65251M-03 (SonicMan SO2) 21 Jun 2007...
-
Page 21: Recalling Saved Data
6) To cancel the deletion of saved data at this stage: Func. (a) Press the [Func.] button. Cancel the Deletion (b) The display returns to the saved data recall screen. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 22: Operation Flow Chart
Calculation Mode No.001 No.001 Clear Distance 0.1m All Data Clear No.001 Select the top or bottom half Type Flange No.001 Func. Direc. 0 degree or ? No.001 Cancel Fluid Air Delete Deletion Input each condition. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 23: Optional Settings And Adjustments
1) Press [ ] and [ ] to switch between “ON” and “OFF”. 2) Press [ENT] to move the display to the next setting item. 3) Press [Func.] to return to detection mode. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 24: Setting The Automatic Power Off Time Delay
Date & Time 2) The setting item moves to right side with [ENT] button. 2007/06/12 12:20 3) Press [ENT] to move the display to the next setting item. 4) Press [Func] to return to detection mode. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 25: Setting Data Communication Way
1) Pressing either the [ ] or the [ ] button to select the setting. 2) Press [ENT] to move the display to the next setting item. 3) Press [Func] to return to detection mode. 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 26: How To Use The Accessories
1) Take out the holster’s belt loop and attach it to the belt 2) Insert the SonicMan unit into the holster and close the band 3) The nozzle can be removed by pulling it out of the bottom of the holster Belt 072-65251M-03 (SonicMan SO2) 21 Jun 2007... -
Page 27: Troubleshooting
When the product does not perform as it should, troubleshoot the problem using the following list. After checking the following items and performing the prescribed corrective actions, if the product still does not perform as it should, contact the local TLV technical sales representative with details of the malfunction status. - Page 28 To communicate with the SonicMan, it is necessary to set it to “Stopping”. To set it to “Stopping”, tap the Start/Stop button on the SonicLogger Sync screen. If communication is still not possible, turn the PDA power OFF, then initialize SonicLogger again. 072-65251M-03 (SonicMan SO2) 21 Jun 2007...
-
Page 29: Specifications
When in Use : 0 to 40 C / Less than 80%RH (non-condensing) When in Storage : -5 to 50 C / Less than 85%RH (non-condensing) Dimensions : Total length:180mm height:170mm width:85mm Weight : Approx. 550g 072-65251M-03 (SonicMan SO2) 21 Jun 2007... - Page 30 : Discharge Time approximately 1 hour maximum After completing the discharge, it automatically switches to charging mode Input : 100-240V AC 50 / 60 Hz Dimensions : Width:130mm depth:90mm height:60mm Weight : 270 g 072-65251M-03 (SonicMan SO2) 21 Jun 2007...
-
Page 31: Product Warranty
One year following product delivery. 2. Warranty Coverage TLV CO., LTD. warrants this product to the original purchaser to be free from defective materials and workmanship. Under this warranty, the product will be repaired or replaced at our option, without charge for parts or labor. - Page 32 12. Product Warranty For the latest information about products, consulting services and customer support, visit our homepage on the World Wide Web: http://www.tlv.com. Worldwide offices: 072-65251M-03 (SonicMan SO2) 21 Jun 2007...
