Summary of Contents for Secukey SK1-H

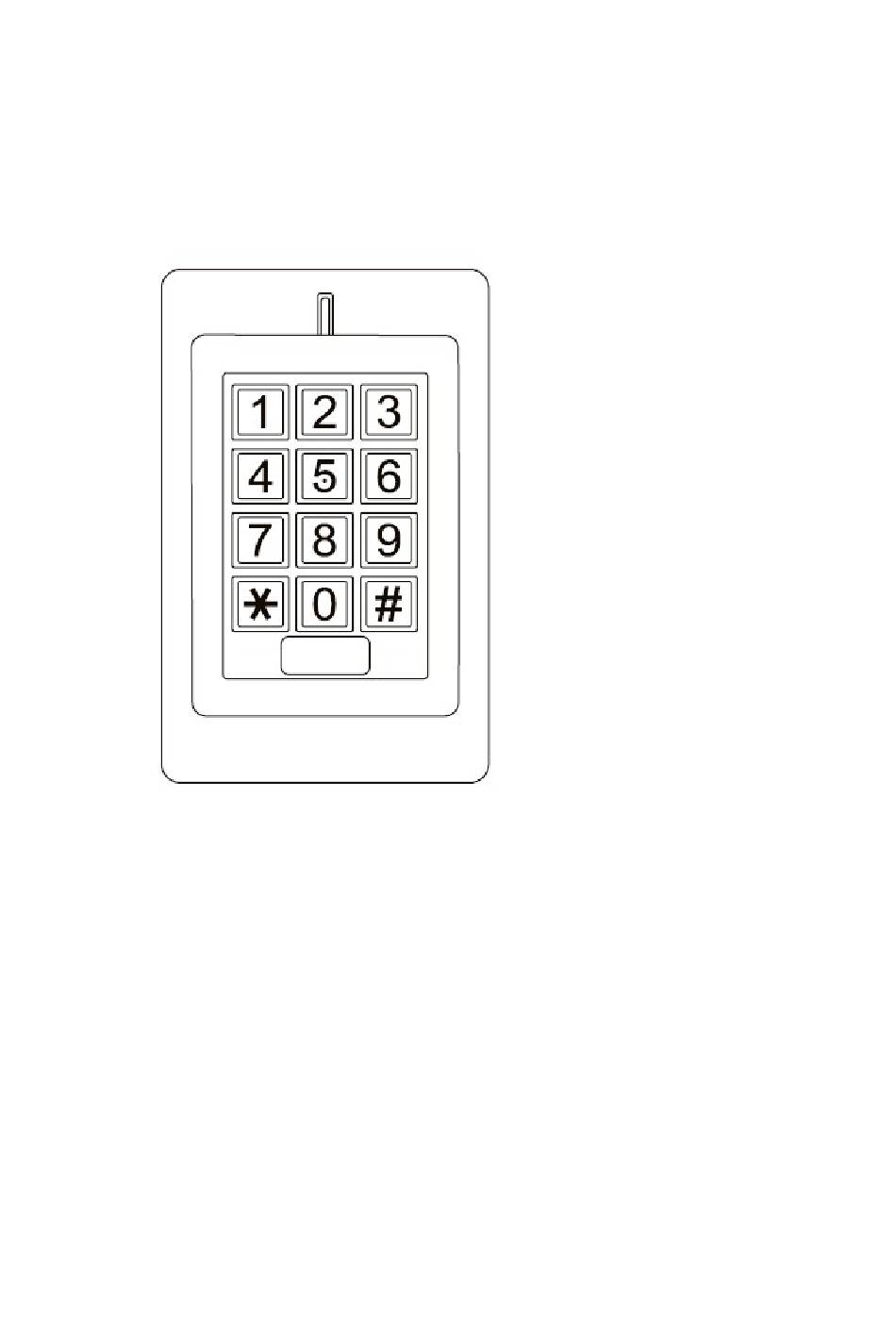

- Page 1 SK1-H Waterproof Access Control/Reader User Manual...
-
Page 2: Specifications

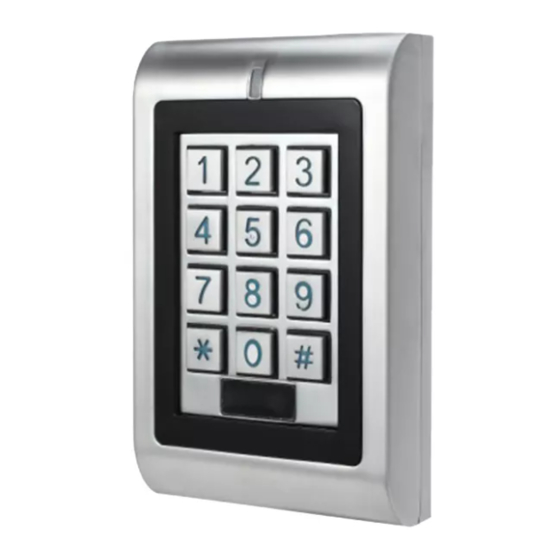

INTRODUCTION The SK1-H is a single- entry multi-function Access Controller with integrated keypad and card reader. It is designed and manufactured to perform in a wide range of indoor, outdoor, and harsh environments. The SK1 supports up to 1000 users in multiple access configurations (Card, Card or PIN, or Card + PIN). -
Page 3: Carton Inventory
Powder Coat Dimensions L: 120* W: 76 * H: 25 (mm) Unit Weight 600g Shipping Weight 700g Carton Inventory SK1-H Access Controller Wall Anchors Self Tapping Screws Screw Driver Diode IN4004 (For relay circuit protection) Manager Card INSTALLATION Install Remove the back cover from the unit ... - Page 4 Attach the unit to the back cover. Wiring Wire Color Function Notes Basic Standalone Wiring AC&DC 12~24V DC/ 12-18V AC Regulated Power Input Black AC&DC 12~24V DC/ 12-18V AC Regulated Power Input Pink Negative Pole Blue Normally Open Relay output Purple Common Connection for Relay output Orange...
-
Page 5: Sound And Light Indication
Remarks: Reset to factory default, the user’s information is still retained. Anti Tamper Alarm The SK1-H uses a LDR (light dependent resistor) as an anti tamper alarm. If the keypad is removed from the cover then the tamper alarm will operate. -
Page 6: Standalone Operation
Standalone Operation User Settings To enter the programming mode * Master code # 666666 is the default factory master code To exit from the programming mode Note that to undertake the following programming the master user must be logged in To change the master code 0 New code # New code # The master code is any 6 digits... - Page 7 Maximum 1,000 cards can be enrolled at a stretch within 1 minute. To delete a card user by card 2 Read Card Note users can be deleted continuously without exiting programming mode To delete a card user by user ID 2 User ID # This option can be used when a user has lost their card...
- Page 8 For a card User Read card For a card and PIN user Read card then enter PIN # 1.2 Master Cards Using Using Master Card to add and delete card users 1. (Read Master Add Card) Add a User Card 2.
- Page 9 lockout alarm (factory default) Keypad Lockout 7 1 # Alarm Output 7 2 # Light and Sound Setting To set keypad backlight 7 4 # To disable keypad backlight 7 5 # To enable the keypad backlight (factory default) To set LED 7 6 # To disable the red LED 7 7 # To enable the red LED (factory default) To set keypad tone...
-
Page 10: Wiegand Mode
Pass through mode (SK1-H operating as a Wiegand Output Reader) In this mode the SK1-H supports a Wiegand 26~37 bit output so the Wiegand data lines can be connected to any controller which supports a Wiegand 26~37 bit input, then the SK1-H will be operated as a slave reader. - Page 11 Wiegand input terminals on the SK1-H. Either an ID card reader (125 KHz) or an IC card reader (13.56MHz) can be connected to the SK1-H. Cards are required to be added at the external reader, except where an external HID reader is used, in this case cards can be added at either reader or controller.
-
Page 12: Fcc Statement
SK1-H- Simplified Instruction Function Description Operation Enter the Programming Mode * (Master Code) # (666666 is the default factory master code) Change the Master Code 0 （ New Master Code ） # （ Repeat New Master (code: 6 digits) Code）#...
