Summary of Contents for Roam RP750X Series

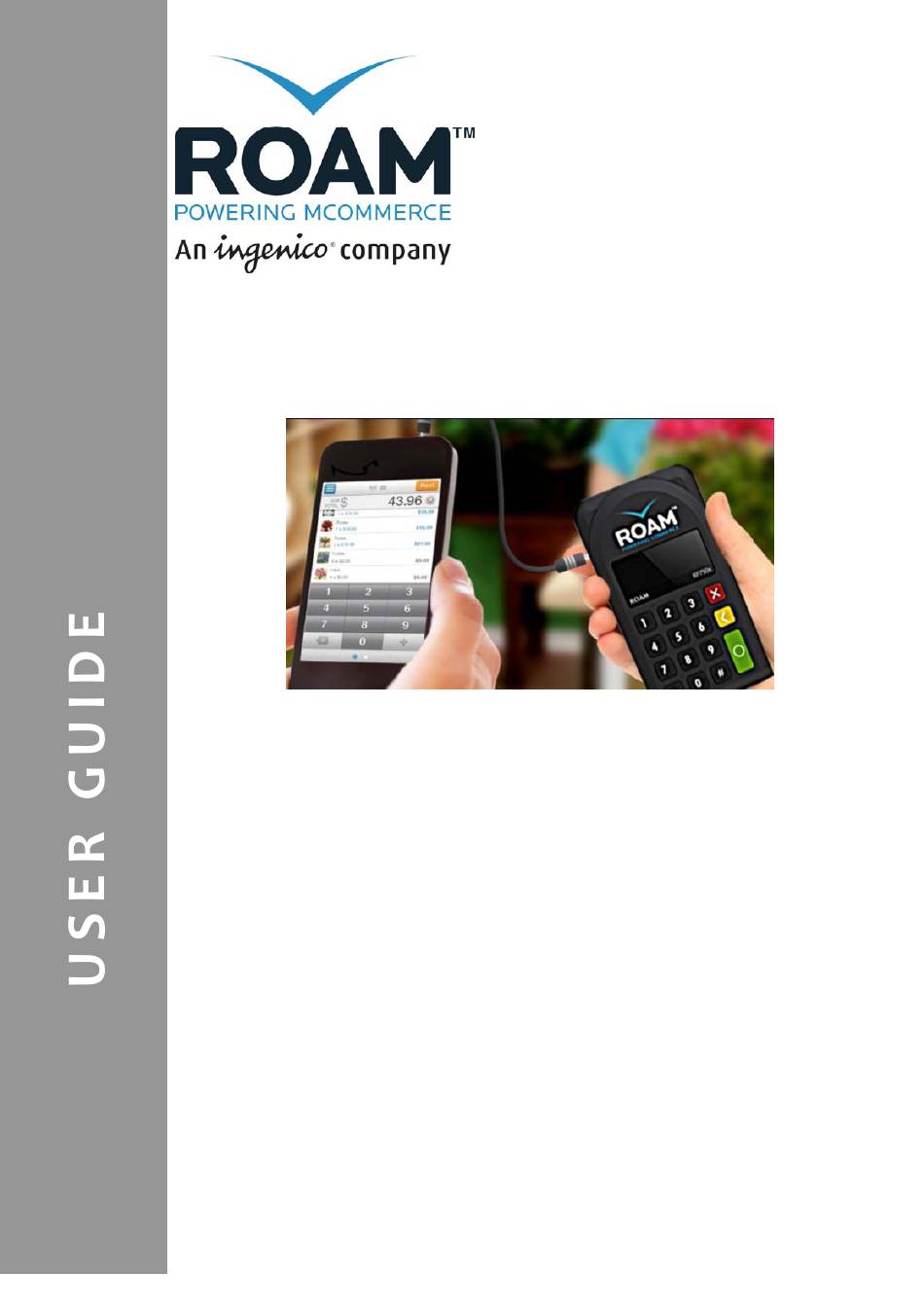

- Page 1 RP750x ROAM– 280 Summer St, Boston, MA 02210 Phone: +1.888.589.5885 ...
-
Page 2: Table Of Contents
5.2. Using Bluetooth on RP750x ____________________________________________ 12 5.3. Terminal keypad _____________________________________________________ 13 5.4. Card reading ________________________________________________________ 14 5.4.1. Swiping a card ________________________________________________________________ 14 5.4.2. Inserting a chip card ___________________________________________________________ 14 Maintenance _________________________________________________ 15 6.1. Cleaning of the terminal _______________________________________________ 15 6.2. Transport and storage ________________________________________________ 15 6.3. Troubleshooting _____________________________________________________ 15 6.4. Environment (WEEE, Batteries and Packaging) ____________________________ 16 / RP750x• R01 0000 1213 2/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 3: Introduction
Introduction Thank you for choosing a ROAM mobile payment terminal. We recommend that you to read carefully this installation guide: It will give you the necessary information about safety precautions, unpacking, installation and maintenance of your terminal. WARRANTY / SECURITY In order to benefit from the product‐related guaranteeand to respect security, we ask you to use only accessories delivered in box with the product, entrusting maintenance ... -
Page 4: Unpacking
part device via audio jac ck. ADVICE Your termi inal is delive ered with a p protective s ee through film. We ad dvise that yo ou leave this s protective film to ensu ure optimum m protection n of your ter minal. Film prese nce does no ot alter in an yway the us se of the term minal. / RP750x• R0 01 0000 1213 4/17 Copyright © 2 2013 ROAM Data l rights reserved... -
Page 5: Recommendations
You should check, for example: that the keypad is firmly in place; that there is no evidence of unusual wires that have been connected to any ports on your terminal or associated equipment, the chip card reader, or any other part of your terminal. Such checks would provide warning of any unauthorised modifications to your terminal, and other suspicious behaviour of individuals that have access to your terminal. Your terminal detects any “tampered state”. In this state the terminal will repeatedly flash the message” Alert Interruption!” and further use of the terminal will not be possible. If you observe the “Alert Interruption!” message, you should contact the terminal helpdesk immediately. You are strongly advised to ensure that privileged access to your terminal is only granted to staff that have been independently verified as being trustworthy. CAUTION NEVER ask the customer to divulge their PIN Code. Customers should be advised to ensure that they are not being overlooked when entering their PIN Code. / RP750x• R01 0000 1213 5/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 6: Fcc & Ic Compliance
• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. 15.19 (a) (3) This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: 1) This device may not cause harmful interference and 2) This device must accept any interference received, including interference that may cause undesired operation of the device. RF Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co‐located or operating in conjunction with any other antenna or transmitter. CAUTION The user is cautioned that any changes or modification not approved by ROAM could void user’s authority to operate the equipment. 3.4. Bluetooth SIG / RP750x• R01 0000 1213 6/17 Copyright © 2013 ROAM Data All rights reserved... - Page 7 This equipment is compliant with: • System specification – BLE 4.0 xxxx‐xxxx • SSP protocol / RP750x• R01 0000 1213 7/17 Copyright © 2013 ROAM Data All rights reserved...
-
Page 8: Main Characteristics
3.5. Main Characteristics The main technical characteristics of RP750xare: Weight 95.35g Dimensions(L x w x h) 101.2mm x 56.5mm x 17mm Battery Li‐ion ‐ 450mAh Operating conditions +0°C to +50°C (charging), Operating temperature ‐10° C + 45°C (standalone) Micro USB AB link (5v 450mA) Connections on terminal Storage conditions from ‐10°C to +70°C Storage temperature 5 to 90%, non‐condensing at 40°C operational Max relative humidity / RP750x• R01 0000 1213 8/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 9: Installation And Connection
Hard Reset µUSB Connector 4.2. Charging Terminal • Before using the terminal for the first time, it requires to be charged for about 3 hours via a computer USB port power output of 450 mA. • Further full charging of the terminal batteryrequires via a computer USB port is about 3 hours. A battery indicator is provided on the terminal display, indicating the charge level of the terminal battery. When connected to a charger, the symbol changes to charging. 4.3. Terminal in its environment / RP750x• R01 0000 1213 9/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 10: Power On
tip of a pen n to engage the Reset b button. CAUTION Reboot th e terminal u using the reb boot switch may cause loss of appl ication data . Make sure e you have f finished ope ration befor re it. / RP750x• R0 01 0000 1213 10/17 Copyright © 2 2013 ROAM Data l rights reserved... -
Page 11: Connection
4.5. Connection 4.5.1. USB cable connection A µUSB connector is located on the bottomof the terminal. • Present the device in front of the connector and plug it CAUTION Use only ROAM cable or accessory not to void warranty. 4.5.2. Cable disconnection • Present the device in front of the connector and unplug it. / RP750x• R01 0000 1213 11/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 12: Daily Use
120 seconds for a device to pair to. After 120 seconds, the RP750x goes back to invisible mode. ADVICE The RP750x can be paired with a maximum of 4 third party devices. If additional device needs to be paired, the existing paired list of devices has to be cleared. / RP750x• R01 0000 1213 12/17 Copyright © 2013 ROAM Data All rights reserved... - Page 13 Validation and Power On n key Numeric k keys Chip Card Slop agnetic Swipe Slot / RP750x• R0 01 0000 1213 13/17 Copyright © 2 2013 ROAM Data l rights reserved...
-
Page 14: Card Reading
Swipe the card with constant speed, not too slow not too fast, for optimum reading accuracy. 5.4.2. Inserting a chip card • Chip Cards should be inserted into the terminal as illustrated below with the chip facing up and into the card reader / RP750x• R01 0000 1213 14/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 15: Maintenance
• Check both terminal & third party device are paired (refer to the pairing user guide). • Check both terminal & third party device are connected via Bluetooth. • Seek technical support. Cards are not read • Check that the magnetic card is swiped correctly (with magnetic stripe inserted into the slot & facing towards the keypad). • Swipe again the card with a constant movement. • Check that the magnetic stripe is not damaged, grooved or cracked. • Make sure you have inserted correctly the smart card into the smart card reader and that the card has been removed after the transaction. / RP750x• R01 0000 1213 15/17 Copyright © 2013 ROAM Data All rights reserved... -
Page 16: Environment (Weee, Batteries And Packaging)
Waste Electrical and Electronic Equipment (WEEE) and 2006/66/EC concerning Batteries and Accumulators.Those provisions are requiring producers and manufacturers to become liable for take‐back, treatment and recycling upon end of life of equipment and batteries. The associated symbol means that WEEE and waste batteries must not be thrown away but collected separately and recycled. ROAM ensures that efficient collection and recycling schemes are set‐up for WEEE and batteries according to the local regulation of your country. Please contact your reseller for more detailed information about the compliance solution in place for disposing of your old product and used batteries. Packaging waste mustalso be collected separately to ensure a proper disposal and recycling. Please note that proper recycling of the electrical and electronic equipment and waste ... - Page 17 “This Document is Copyright © 2013 by ROAM. ROAM retains full copyright ownership, rights and protection in all material contained in this document. The recipient can receive this document on the condition that he will keep the document confidential and will not use its contents in any form or by any means, except as agreed beforehand, without the prior written permission of ROAM. Moreover, nobody is authorized to place this document at the disposal of any third party without the prior written permission of ROAM. If such permission is granted, it will be subject to the condition that the recipient ensures that any other recipient of this document, or information contained therein, is held ...
