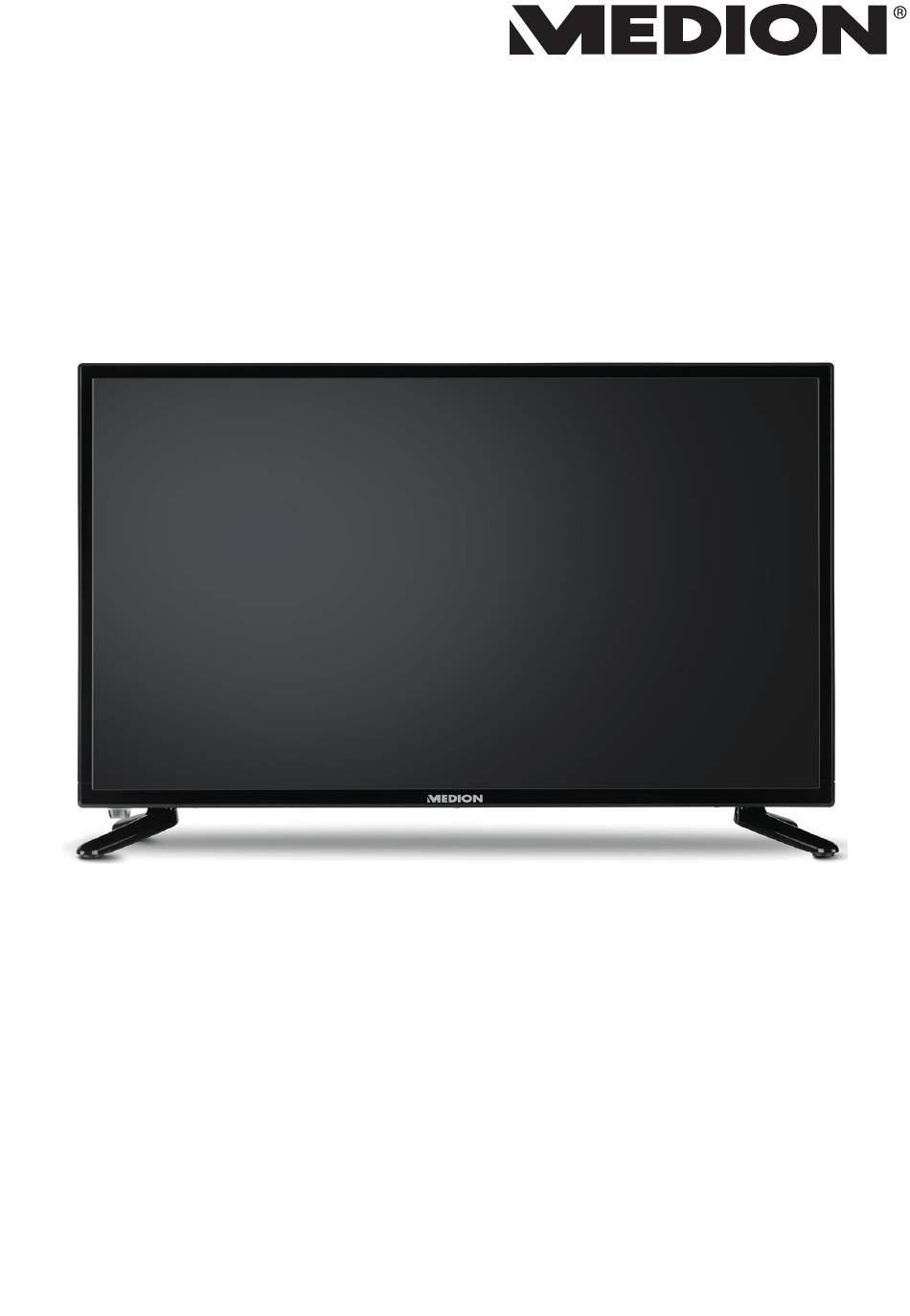

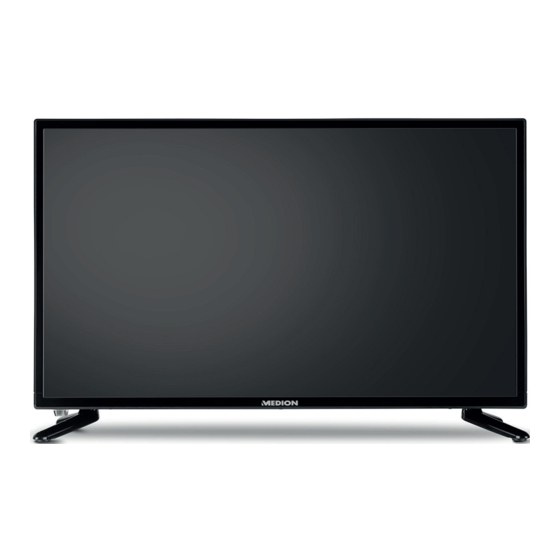

- Page 1 User Manual 21.5“ (54.6 cm) Full HD Caravan TV MEDION LIFE ® ® E12200 (MD 21478)
-
Page 2: Table Of Contents
Contents Information about these operating instructions ........3 1.1. Explanation of symbols ..................3 1.2. Proper use ........................ 4 1.3. Full HD ........................5 Package contents ..................5 Safety instructions ..................6 3.1. Operating safety ....................6 3.2. Set-up location ...................... 8 3.3. - Page 3 9.3. Useful teletext functions ..................34 Menu navigation ..................35 10.1. Picture menu......................36 10.2. Audio menu......................37 10.3. Channel menu ......................38 10.4. Feature menu .......................43 10.5. Setup menu ......................47 Media Mode ....................48 11.1. Media Mode and USB Connectivity ..............48 11.2. Recording via REC Button ................49 11.3.
-
Page 4: Information About These Operating Instructions
1. Information about these operating instructions Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions carefully before using the device for the first time. Note the warnings on the device and in the operating instructions. Always keep the operating instructions close to hand. -
Page 5: Proper Use
NOTICE! Please follow the instructions in the operating instructions! WARNING! Warning of risk of electric shock! WARNING! Warning: danger due to loud volume! • Bullet point/information on steps during operation Instructions to be carried out Declaration of conformity (see section “Declaration of conformity”): Products that feature this symbol meet the requirements of the EC di- rectives. -
Page 6: Full Hd
• Heed all the information in these operating instructions, especially the safety in- formation. Any other use is deemed improper and can cause personal injury or property damage. • Do not use the device in extreme environmental conditions. • This device is intended for use in dry, indoor areas only. •... -
Page 7: Safety Instructions
3. Safety instructions 3.1. Operating safety − Check the device for damage before using it for the first time. A defective or damaged device must not be placed into operation. − This device may be used by children over the age of 8 and by persons with reduced physical, sensory or mental abili- ties or by those without experience and knowledge, if they are supervised or have been instructed in the safe use of... - Page 8 WARNING! Overheating! Risk of fire! Overheating can damage your Full HD Caravan TV and lead to a risk of fire! The slots and openings on the TV are for ventilation purpos- es. Do not cover these openings e.g. with newspapers, table cloths, curtains, etc.
-
Page 9: Set-Up Location
Contact customer services if: − The power cable is burnt or damaged − Liquid has penetrated the device − The device is not operating correctly − The device has fallen, or the housing is damaged − Smoke is rising from the device 3.2. - Page 10 NOTICE! Risk of damage! There is a risk of injury with candles and other open flames. Keep candles and other open flames away from this device at all times in order to prevent the spread of fire. − Make sure that there is enough clearance from the sides of the furniture unit.
-
Page 11: Repairs
− Advise children of the dangers of climbing up furniture in order to reach the TV or its operating elements. If you are storing or moving the TV, also observe the aforemen- tioned safety instructions. 3.3. Repairs − Repairs to your Full HD Caravan TV should only be carried out by qualified specialists. -
Page 12: Safety When Connecting
NOTICE! Risk of damage! Large changes in temperature or fluctuations in humid- ity can cause moisture to build up due to condensation within the Full HD Caravan TV, which can cause an elec- trical short circuit. After transporting the Full HD Caravan TV, wait until the ap- pliance has reached ambient temperature before switching it 3.5. -
Page 13: Handling Batteries
− For extra safety, we recommend using an over-voltage pro- tection device to prevent your Full HD Caravan TV sustain- ing damage as a result of power surges or lightning strikes. − Position the cables so that they cannot be stepped on or tripped over. - Page 14 − Do not dismantle or deform the batteries. You could injure your hands or fingers, or battery fluid could come into contact with your eyes or skin. If this hap- pens, rinse the affected areas with plenty of clean water and consult a doctor immediately.
-
Page 15: Eu Declaration Of Conformity
RoHS Directive 2011/65/EU 4.1. Simplifi ed EU Declaration of Conformity Hereby, MEDION AG declares that the radio equipment type E12200 (MD 21478) is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.medion.com/conformity. -
Page 16: Device Overview
5. Device overview 5.1. Front LCD screen Operating light: Shines red when the device is in standby mode. Shines blue when the device is switched on. Infrared sensor: Reception field for the infrared remote control signals. STANDBY: Standby button: Switch the device on or into standby mode SOURCE: Change the input source MENU: Call up the on-screen menu to make settings on your device CH+/CH-: Select a program or navigate in the menu... -
Page 17: Rear
5.2. Rear SCART LNB IN POWER HDMI DC 13V/18V DC 12V AUDIO 400mA Max. ARC/CEC COMMON INTERFACE (CI+): Card slot for connecting pay TV cards HEADPHONE OUT: For connecting headphones with 3.5 mm jack MINI AV: Audio/video input (via the supplied cinch adaptor) MINI YPBPR: YPbPr components input (via the supplied cinch adaptor) USB (2.0) DC 5V , Max. -
Page 18: Remote Control
5.3. Remote control D.MENU TITLE GOTO ANGLE REVEAL PROGRAM INTRO REPEAT D.DISP SUB.T LANG ZOOM INDEX AUDIO SIZE... - Page 19 LED display for confirming button selection P.MODE Select picture mode GOTO DVD: for selecting a desired section on a DVD POWER: i.e. switch Full HD Caravan TV on/off (switch stand- by mode on/off ). MEDIA Open media browser ANGLE DVD: select camera position (viewing angle) in the DVD playback REVEAL Videotext: reveal hidden text...
- Page 20 17 OK Confirm selection in certain menus. Also used to open the channel list. 18 P+/- Programme selection buttons 19 EXIT Exiting the menu 20 MENU Open and close menu 21 TV/RADIO DTV/Satellite: switch between TV channels and radio sta- tions 22 INFO For displaying information, such as current programme...
-
Page 21: Getting Started
6. Getting started Before using for the first time, ensure you read the “Safety instructions” section. 6.1. Unpacking • Select a suitable place for setting up the device before unpacking. • Open the box very carefully, to avoid damaging the device. The device might get damaged if you use a knife with a long blade to open the box. -
Page 22: Inserting The Batteries In The Remote Control
6.3. Inserting the batteries in the remote control Remove the battery compartment cover on the back of the remote control. Insert two LR03 (AAA) 1.5 V batteries in the battery compartment of the remote control. Check the battery polarity (see label on the bottom of the battery com- partment). -
Page 23: Common Interface (Ci)
6.5. Common Interface (CI) If you want to watch subscription channels, you must first register with the relevant provider. You will receive a Conditional Access Module (CAM module) and a special card from your provider after registration. You will find information about the set- tings in the documentation supplied with the module. -
Page 24: Multimedia Connections
7. Multimedia connections 7.1. Use of the multimedia connections NOTICE! Risk of damage! Incorrect operation can lead to damage to the equip- ment used. Before wiring and use, also read the operating in- structions of the devices you are connecting. NOTICE! Risk of damage! If plugs and sockets are connected incorrectly it can... - Page 25 7.1.3. YPbPr YPbPr transmission (component) works via five RCA connections in which three jacks carry the video signal (red/blue/green) and the remaining two jacks carry the stereo audio signal (red/white). Use a commercially available YPbPr cable. Connect the YPbPr inputs and outputs of the equipment with a YPbPr cable. ...
- Page 26 7.1.7. SPDIF SPDIF (Sony®/Phillips digital interface) is an interface for transferring digital stereo or multi-channel audio signals between various devices. Usually, the digital audio signal is output via a coaxial (RCA) or an optical connection. Use a suitable, commer- cially available cable. ...
-
Page 27: First Time Use
7.2. First Time Use You will be guided through the AUTO INSTALLATION menu after you switch the device on for the first time. Auto Installation - Setup 1 - Country : Germany France Italy Poland Previous Page Next Page Enter Exit Move Enter... - Page 28 Auto Installation - Setup 4 - TV Connection : Please select the method of TV Cable Connection. Satellite Next Page Previous Page Enter Exit Move Enter Exit Select the preferred connction type with the directional buttons and press OK. 7.2.1.
- Page 29 7.2.2. Satellite Auto Installation - Setup 5 - Satellite Setup Load Default Database Satellite System Previous Page Enter Exit Move Enter Exit Use the direction buttons and press OK to select the default preset channel list or to enter the SATELLITE SYSTEM settings: Select the satellite for which you want to change the settings or carry out a search.
- Page 30 Set the search mode. DEFAULT: A search will be run on the selected satellite, based on the transponder list saved for this satellite. This will take some time. NETWORK SEARCH: Activate/deactivate the network scan. FULL SEARCH: A full search will be run on the SCAN MODE selected satellite.
- Page 31 SCAN The setting options here are the same as for SCAN under SATEL- LITE. Enter the oscillator frequency for your LNB type LNB TYPE here. Set the LNB power here. POWER 22KHZ Set the sound here. The default setting is AUTO. If your satellite system requires a tone burst, you TONEBURST can set it to BURST A or B here.
-
Page 32: Operation
8. Operation 8.1. Channel selection To select a channel, either press the CH+/– buttons (on the device) or the P+/- buttons (on the remote control) or select the channel directly by pressing the appropriate number. For a two- or three-figure number, press the numbers one after another. ... -
Page 33: Displaying Channel Information
ZOOM 1 The picture is stretched in all directions in level 1. ZOOM 2 The picture is stretched further in level 2. PANORAMA (for DTV CINEMA) (not availa- ble for PC): This function zooms a widescreen im- age (aspect ratio 16:9) to fill the entire screen. -
Page 34: Selecting The Source
8.6. Selecting the source Press the SOURCE button (on the remote control or on the device) to call up the source selection list. TV mode (digital signal) TV mode (analogue signal) Device on AV input SCART Device on SCART input YPBPR Device on the video and audio input components HDMI... -
Page 35: Useful Teletext Functions
9.2.1. Colour buttons If coloured fields or text entries are displayed at the lower edge of the screen then you can select the contents directly by pressing the appropriately coloured button: RED [PROGRAM], GREEN [INTRO], YELLOW [REPEAT] and BLUE [A-B]. 9.2.2. -
Page 36: Menu Navigation
10. Menu navigation Press the MENU button to activate the OSD. The available options are displayed on the lower edge of the screen. You can use the direction buttons to select the options from the main menu. ... -
Page 37: Picture Menu
10.1. Picture menu Picture Picture Mode Standard Brightness Picture Contrast Sound Sharpness Colour Channel Tint Colour Temperature Standard Feature Full Aspect Ratio Setup Enter Exit Menu Move Enter Exit Return Menu Item Setting Select picture mode: STANDARD, DYNAMIC, MID- PICTURE MODE DLE, USER. -
Page 38: Audio Menu
10.2. Audio menu Sound Sound Mode Standard Bass Picture Treble Balance Sound Surround Off Channel Off SPDIF Feature Audio Description ENTER Setup Enter Exit Menu Move Enter Exit Return Menu Item Setting SOUND Select audio mode: STANDARD, MOVIE, MUSIC, SPEECH, MODE USER. -
Page 39: Channel Menu
10.3. Channel menu Channel Channel Management ENTER Favorite Management ENTER Picture Country Satellite TV Connection Sound Auto Search ENTER Channel ENTER DTV Manual Search ENTER ATV Manual Search Feature ENTER Satellite System Setup Enter Exit Menu Move Enter Exit Return Menu Item Setting You will see the currently saved channel here. - Page 40 Menu Item Setting In the Favourites Manager you can set up up to four favourites lists. Use to select the desired channel. The CH+- buttons bring you direct to the next/previous channel in the chan- nel list. FAVORITE ...
- Page 41 Menu Item Setting You can program individual channels in ATV mode manually here.. CURRENT Use this to select the channel you would like to CHANNEL address.. FREQUEN- Frequency of the current channel ATV MANU- AL SEARCH SEARCH Start the channel search with (only in ATV FINE TUNE Press ...
- Page 42 Menu Item Setting Set the search mode. DEFAULT: A search will be run on the selected satellite, based on the transponder list saved for this satel- lite. This will take some time. NETWORK SEARCH: Activate/de- activate the network scan. FULL SEARCH: A full search will SCAN be run on the selected satellite.
- Page 43 Menu Item Setting SYM- Use the number buttons to enter the Baud rate. (KS/S) POLAR- Press to select the polarity. DELETE Select the transponder that you want to delete from the list as described above and press the yellow button. Confirm the prompt by pressing YES.
-
Page 44: Feature Menu
10.4. Feature menu Feature Lock ENTER Language ENTER Picture ENTER Clock Sound Sleep Timer Off Auto Power Off 4 Hours Channel Off Hearing impared ENTER Feature CI Info ENTER PVR/Timeshift Setup Enter Exit Menu Move Enter Exit Return Menu Item Setting You can use this to activate the settings LOCK ENABLE, PA- RENTAL GUIDANCE and HOTEL MODE You need to enter... - Page 45 Menu Item Setting CON- FIRM Enter the new password again. The appropriate message will ap- PASS- pear. WORD Select the language of the OSD menu or of the LANGUAGE TT language. It will change immediately.. PREFERRED Select the preferred subtitle language SUBTITLE PREFERRED Select the preferred audio language...
- Page 46 Menu Item Setting You will have to register with the respective provider in advance, if you wish to watch channels with costs. You will receive a Condi- tional Access Module (CAM Module) and a special card from your provider after registration. You will find information about the set- tings in the documentation supplied with the Module.
- Page 47 Menu Item Setting In this menu you will see an overview of all of the timer recordings that you have programmed. Select the programmed timer recording that you want to delete. DEL ALL With this function you can delete all of the pro- grammed timer recordings.
-
Page 48: Setup Menu
10.5. Setup menu Setup OSD Timer 15 Seconds Auto SCART Picture ENTER PC Setup Off Sound Blue Screen ECO Mode Standard Channel Reset TV Setting ENTER Feature Software Upgrade ENTER Setup Enter Exit Menu Move Enter Exit Return Menu Item Setting OSD TIMER Set the time after which the OSD menu will close automatically. -
Page 49: Media Mode
Menu Item Setting RESET TV SET- Restore the factory settings here. This allows you to reset the TING device or the memory. SOFTWARE Here you can carry out a software update for the device with UPGRADE the help of a USB storage medium. 11. -
Page 50: Recording Via Rec Button
After the USB device has been formatted, it can be used for recording under DTV mode. The default recording drives will always be C:\, unless different drive is selected using method from 2-7. The recording function can be achieved in 2 ways: −... -
Page 51: Media Menu System
11.4. Media Menu System If you attach a USB storage medium to the Full HD Caravan TV, you can play back photos, music, videos or text. The supported formats can be found in the technical data at the end of these instructions. Certain types of USB devices may not be compatible with this Full HD Car- avan TV. -
Page 52: Display Of Photos / Images
11.7. Display of Photos / Images If you select PHOTO from the main menu, all the available image files will be fil- tered and displayed on the screen. If there are several folders on the storage medium, use to select the folder and confirm with OK. -
Page 53: Video Playback
Use the buttons to select an option and confirm with OK. − PLAY/PAUSE /: Start/stop music playback − STOP : Stop playback of the music track − FB/FF /: Fast rewind/forward − PREVIOUS/NEXT / : Play back previous/next track −... -
Page 54: Text Playback
− GOTO TIME : Start video from a certain time point The buttons on the remote control can also be used for playing back files. Press the EXIT button to return to the previous menu. 11.10. Text Playback If you select E-BOOK from the main menu, all the available text files will be filtered and displayed on the screen. -
Page 55: Epg - Program Guide
12.3. Playback of Recorded Files Recordings are played back via the media player. All programmes can be found via the RECORD LIST on the corresponding data storage medium. 13. EPG - Program Guide Open the Electronic Program Guide with the EPG button. This function will only be available to you in the DTV Mode. -
Page 56: Dvd Mode
14. DVD Mode The built-in DVD player is run in DVD mode. 14.1. Switching from TV to DVD mode Use SOURCE button to open the source selection list. Use the direction buttons to go to DVD. Confirm your selection with OK. ... - Page 57 14.3.3. STOP Press (STOP) once to stop the playback. In this mode you can continue the playback from the same place using (PLAY). Press (STOP) again to completely stop the DVD. The device is now in stop mode.
-
Page 58: Navigating Between Audio & Picture (Mp3 & Jpeg)
14.4. Navigating between Audio & Picture (MP3 & JPEG) The music tracks on MP3 and JPEG data media may be organised into folders just like on other data media. Insert an MP3 or JPEG CD into the player. A menu appears on the screen, show- ing the top-level folder structure. - Page 59 14.5.2. Menu: General Setup Page TV Display Mode Here you set the unit’s display for- DOLBY mat to match that of the televi- sion. - - G e n e r a l S e t u p P a g e - - 4:3 PAN SCAN: Selection for TV Display Mode 16:9...
- Page 60 14.5.4. Menu: Dolby Digital Setup Dynamic DOLBY The Dolby Digital sound format supports a dynamic setting which - - D o l b y D i g i t a l S e t u p - - you can use to set the volume dif- Dynamic ference between quiet and loud passages on a scale of OFF to...
- Page 61 Parental You can set the authorisation level for DVDs (parental control) here. Some DVDs and CDs are coded with the encryption signals of the authorisation classes established by the Motion Picture Association. The eight authorisation class- es are: 1 KID SAF: Suitable even for small children; 2 G: For all age groups;...
-
Page 62: Troubleshooting
15. Troubleshooting Problem Corrective action • Check if the power cable is inserted in the socket proper- There is no picture and no sound. Check if the signal reception is set to TV. • • Check to ensure that the contrast and brightness settings are correct. - Page 63 Problem Corrective action • Is there interference from another device? There are stripes • Transmission antennae on radio stations, ham radios and on the screen or portable phones can also cause interference. the colours are • Operate the device as far away as possible from the de- faded.
-
Page 64: Full Hd Caravan Tv Pixel Faults
15.1. Full HD Caravan TV pixel faults 5 Pixel Despite the most modern produc- tion methods, the highly complex technology involved in produc- ing this type of device means there Rows may be individual or multiple pixel drop-outs (dead pixels). This is rare, however. -
Page 65: Cleaning
16. Cleaning DANGER! Risk of electric shock! There is a risk of death due to an electric shock when the housing is open and you touch parts inside the de- vice! Do not open the housing of the device. It does not contain any parts requiring maintenance. -
Page 66: Disposal
18. Disposal Packaging The product has been packaged to protect it from damage in transit. The packaging is made of materials that can be recycled in an environ- mentally friendly manner. Device The adjacent symbol showing a crossed out wheelie bin means that the device is subject to Directive 2012/19/EU. -
Page 67: Technical Specifications
19. Technical specifi cations Full HD Caravan TV Device name E12200 (MD 21478) Screen size 21.5” (54.6 cm) LCD; 16:9 display Power consumption: Max. 36 W Power consumption in stand- < 0,50 W by mode Speaker output 2 x 3 W RMS Physical resolution 1920 x 1080 TV system... - Page 68 Audio Stereo Audio In for AV, YPbPr (YUV) (3.5 mm jack to cinch adaptor) PC Audio In (3.5 mm jack) Headphone output (3.5 mm jack) Digital Audio Out (SPDIF) (coax.) Drives/storage media Drives USB, Common Interface, Disc Supported formats via USB Photo: BMP, JPG, JPEG, PNG Music: MP3, WAV, FLAC, OGG, AC3 Film: AVI, MPEG1/2/4, TS, Xvid, QuickTime, 3GP,...
-
Page 69: Product Data Sheet
Dimensions/weight Dimensions without stand Approx. 504 x 307 x 89 mm (W x H x D) Dimensions with stand Approx. 504 x 327 x 155 mm (W x H x D) Weight without stand Approx. 2.5 kg Weight with stand Approx. -
Page 70: Service Information
In our Service Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. You will find our Service Community at http://community.medion.com. • Alternatively, use our contact form at www.medion.com/contact. -
Page 71: Legal Notice
These operating instructions are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the distributing company: MEDION AG Am Zehnthof 77 45307 Essen Germany Please note that you cannot use the address above for returns. Please always con-... -
Page 72: Index
22. Index Antenna ............21 Package contents ..........5 Auto Installation ......... 26 Pixel faults ............. 63 Power supply ..........11 Batteries ........... 12, 21, 65 Problem............61 Program guide ..........54 Channel selection ........31 Proper use ............4 Cleaning ............64 PVR .............. - Page 74 MEDION ELECTRONICS LTD. 120 FARADAY PARK, FARADAY ROAD, DORCAN SWINDON SN3 5JF, WILTSHIRE UNITED KINGDOM www.medion.co.uk MSN 3002 6326...
