Summary of Contents for VanGaa Lighting VG-LM150S

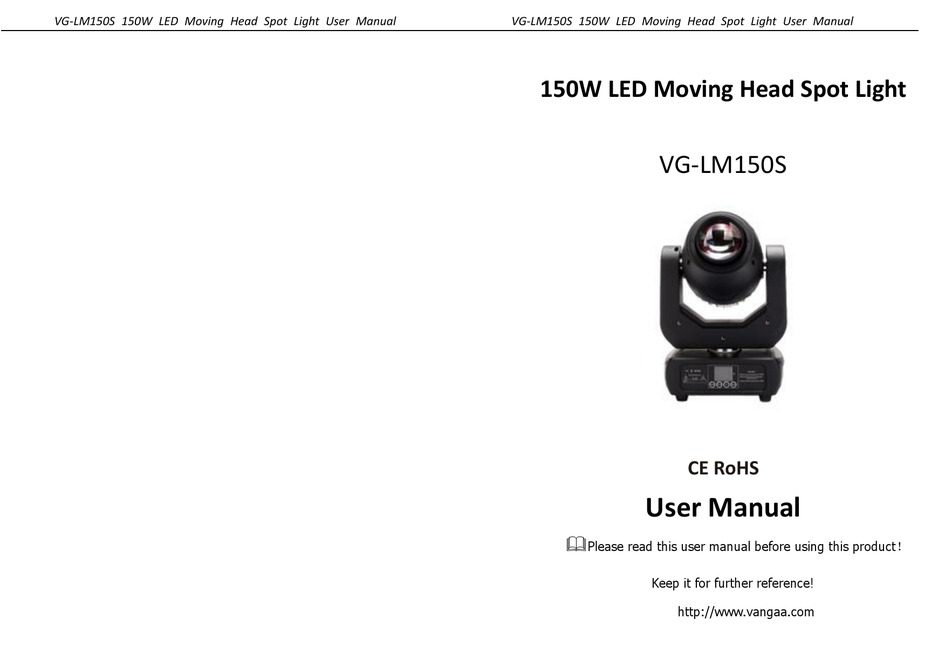

- Page 1 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 150W LED Moving Head Spot Light VG-LM150S CE RoHS User Manual Please read this user manual before using this product！ Keep it for further reference!
-
Page 2: Table Of Contents
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual Ⅰ GENERAL INDEX Thank you for using our product! Please read this manual carefully and completely. For technical reference in future, please keep this user manual well. This user manual contains all installation and operation information of this 150W LED Moving Head Spot Light, it’s very... -
Page 3: Ⅱ Safety Information
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual Ⅱ SAFETY INFORMATION To determine the power requirements for a particular fixture, see the label affixed ※Important to the back plate of the fixture or refer to the fixtures specifications chart. A fixture listed Every person involved with the installation, operation and maintenance of this device has to current rating is its average current draw under normal conditions. -
Page 4: Ⅳ Dimensionand Lux
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual fixture. HOTOMETRIC Make sure to put the safety chain and check whether the screws are screwed properly when installing the fixture. -
Page 5: Ⅵ Operation And Control
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual For installations where the DMX cable has to run a long distance or is in an electrically noisy enviroment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise. -
Page 6: Ⅶ Dmx Channel Chart
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual Pan reverse NULL No function Tilt reverse NULL No function Display DMX input present Screen Reverse Button: Setup [ Advanced Setting] Channel (16/14/12/10CH Select) - Page 7 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 048←→063 Color 3 192←→255 Gobo rotate CCW, from slow to fast 064←→079 Color 4 000←→255 Focus 080←→095 Color 5 Prism 096←→111 Color 6 000←→063...
- Page 8 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 096←→111 Color 6 016←→031 Gobo 1 112←→127 Color 7 032←→047 Gobo 2 128←→191 CW, from slow to fast 048←→063 Gobo 3 192←→255 CCW, from slow to fast 064←→079...
- Page 9 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 000←→255 Pan 0~540degree 035←→041 Gobo 5 000←→255 Pan fine 042←→048 Gobo 6 049←→055 Gobo 7 000←→255 Tilt 0~270degree 056←→063 Gobo 8 000←→255 Tilt fine 064←→070...
- Page 10 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual Reset 192←→255 CCW, from slow to fast 000←→249 No function Static gobo wheel CH14 250←→253 Reset 000←→006 Open 254←→255 No function 007←→013 Gobo 1 014←→020...
- Page 11 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 064←→079 Gobo 4 250←→253 Reset 080←→095 Gobo 5 254←→255 No function 096←→127 Gobo 6 Ⅷ TECHNICAL SPECIFICATION 128←→191 Gobo rotate CW, from slow to fast Light Source 192←→255...
-
Page 12: Ⅸ Trouble Shooting
VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual Light size: 270Dx270Wx470Hmm Ⅹ MAINTENANCE AND CLEANING Weight: 10.6kg The cleaning of internal and external optical lenses and/or mirrors must be carried out Material: ABS periodically to optimize light output. - Page 13 VG-LM150S 150W LED Moving Head Spot Light User Manual VG-LM150S 150W LED Moving Head Spot Light User Manual 3) A detailed electric check by approved electrical engineer each three month, make sure that the circuit contacts are in good condition, prevent the poor contact of circuit from overheating.
