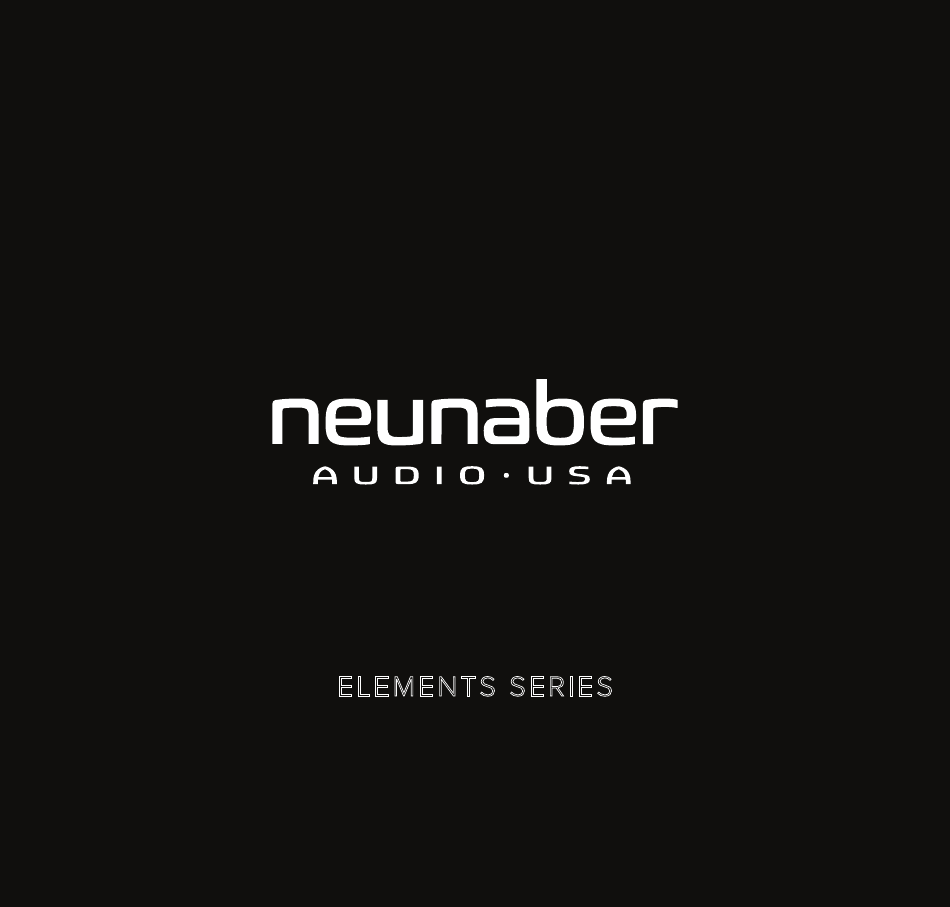

- Page 1 ELEM ENTS SERI ES...
- Page 2 Thank you for purchasing our product. We really mean it. We hope to earn your trust by delivering a quality product that inspires you to make great music. Neunaber products are designed and manufactured in Orange, California USA. Please visit www.neunaber.net for more information and support.
- Page 3 PEDAL MAP 9V DC mix knob effect-dependent knob effect-dependent knob output input bypass switch (multi-function for Echelon & Seraphim)
- Page 4 CONNECTIONS We recommend that this pedal be placed at the end of your chain, after all other effects. If you are using the overdrive channel of your amplifier, this effect should be placed in the effects loop for best results. The POWER JACK accepts a standard (5.5 mm OD x 2.1 mm ID) center-negative pedal power adapter (not included).
- Page 5 BYPASSING The bypassed signal may be selected to be buffered or true bypass. With the buffered-bypass mode, the signal is always buffered whether the LED is on or off. The three bypass modes are: • Buffered Trails—allows the effect signal to trail off naturally after the pedal is bypassed •...
- Page 6 To change the bypass mode, unplug the pedal or turn off the power supply. Hold down the footswitch while re-applying power to the pedal. The pedal will cycle to the next bypass mode, and the number of blinks per second indicates the current mode.
- Page 7 SERAPHIM™ SHIMMER The MIX KNOB controls the mix between the dry signal and effect: • Full counter-clockwise is 100% dry • Full clockwise is 100% effect, typically used with a parallel effects loop • Approximately 3 o’clock is an even mix: half dry/half wet The DEPTH KNOB controls the length of the reverb tail, or in other words, the size of the acoustic space.
- Page 8 ECHELON™ ECHO The MIX KNOB controls the mix between the dry signal and echo: • Full counter-clockwise is 100% dry • Full clockwise is 100% echo, typically used with a parallel effects loop • Approximately 3 o’clock is an even mix: half dry/half wet The REPEATS KNOB controls the number of echo repeats, or in other words, the amount of regeneration.
- Page 9 TAP DIVIDE (Tempo Subdivisions) When tap tempo is active, you may use the Time knob to set the tap divide. The marks around the Time knob indicate time in fractions of the tapped tempo. These fractions are equivalent to music tempo as follows: Fraction Tempo Subdivision Quarter-note...
-
Page 10: Specifications
SPECIFICATIONS Electrical Nominal input level, Mix < 60% +4 dBu, line level Nominal input level, Mix > 60% -10 dBV, instrument level Input impedance 1 MΩ Output impedance 1 kΩ Gain, enabled vs. bypass +/-0.5 dB (dry signal only) Frequency response 20 Hz—20 kHz, +0.1 dB, -0.5 dB (dry signal or bypassed) Total harmonic distortion... - Page 11 At Neunaber, we love to see what you guys do with your ‘toys’. We encourage you to tag us in your posts, pictures & videos featuring your Neunaber gear! To stay connected, go ahead and follow us on the channels seen below. We can’t...
