Arcam Muso Assembly Instructions

1

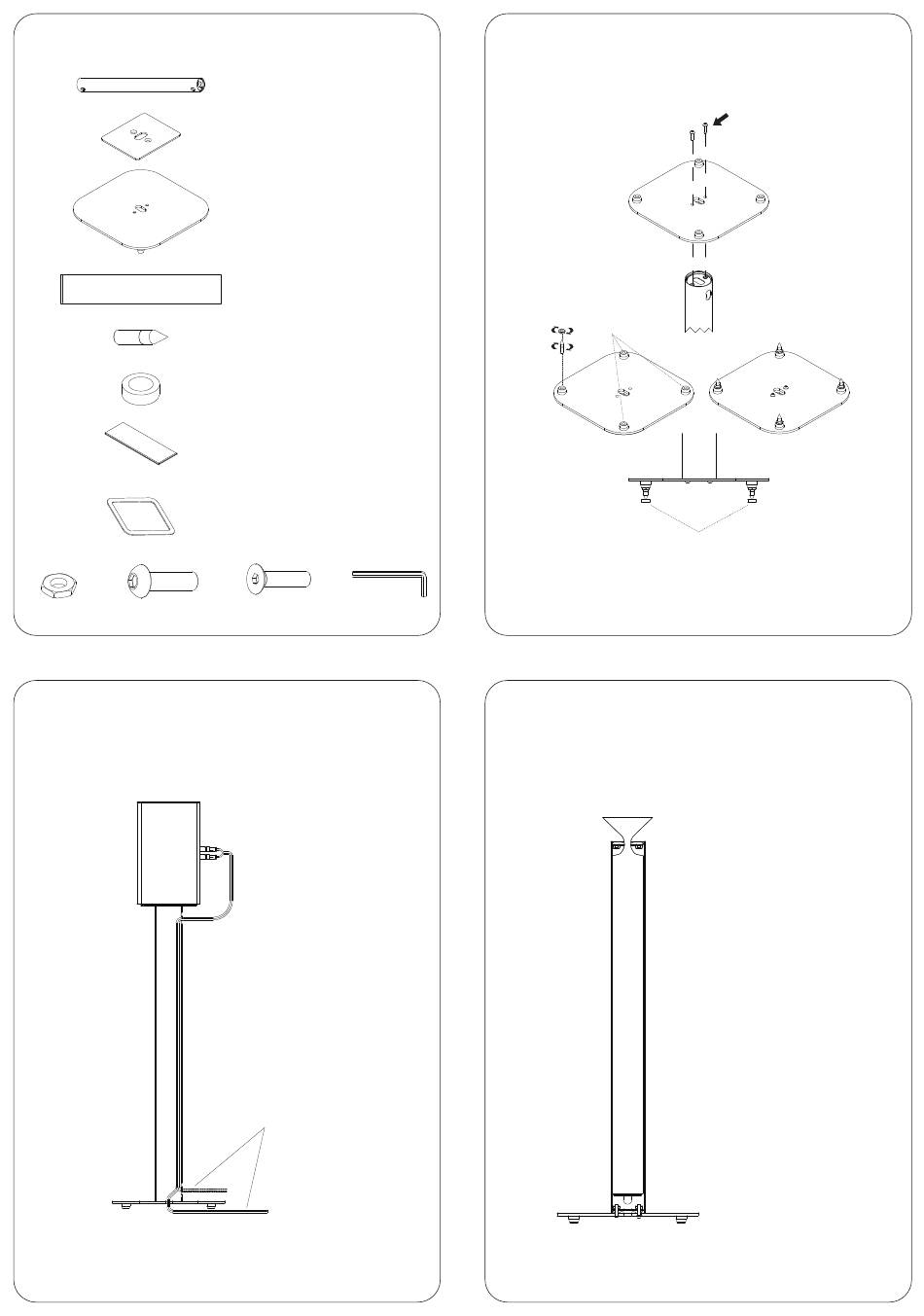

The box contains:
M8 NUT x 8 M6 BUTTON HEAD
SCREW x 4
3

CABLE ROUTING

MAIN TUBE E060MC x 2
TOP PLATE E061MC x 2
BASE PLATE E062MC x 2
BAG E063MC x 2
SPIKE E066MC x 8
FLOOR PROTECTOR E067MC x 8
VELCRO PAD F305 x 8
FOAM GASKET E837AP x 2
M6 COUNTERSUNK KEY E068MC x 1
SCREW x 4
CABLE CAN BE ROUTED
THROUGH THE BOTTOM
OF THE TUBE OR PLATE
2
BASE PLATE & SPIKE FITTING
x 4
USE E067MC IF YOU WANT
TO PROTECT YOUR FLOOR
4
STABILITY & SOUND
IMPROVEMENT
M6 BUTTON HEAD
SCREW x 2
IF YOU WISH TO FILL YOUR
STANDS WITH SAND, FEED
E063MC THROUGH THE
TOP OF THE TUBE AND
FILL.
