CTEK BATTERY ANALYZER Quick Start Manual

INNOVATION IN BATTERY TESTING

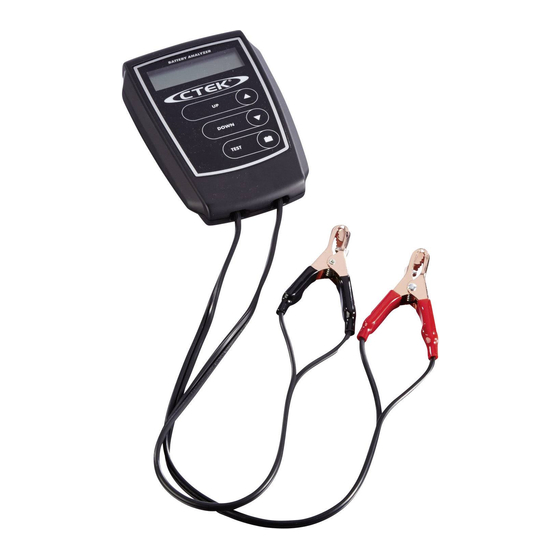

The CTEK BATTERY ANALYZER tests with high accuracy the condition
of all types of 12V lead-acid batteries including Wet, Maintenance
Free, Ca/Ca, Gel and AGM. Easy to use it provides fast, and easy to
understand results. Operating voltage range is 8–15V with a test range of
200–1 200EN. Simply connect the clamps to the battery and follow the
step by step instructions on the display. The easy to read display gives clear
information on the condition of any 12V lead-acid battery and advises what
action is required. With no need to disconnect the battery from the vehicle,
the patented technology used by the CTEK BATTERY ANALYZER is safe for
the user and vehicle electronics. It is reverse polarity protected, creates no
battery loads, heat or sparks. The CTEK BATTERY ANALYZER features a
2 - year warranty.
TECHNICAL DATA
TYPE OF ANALYZER Conductance
TYPE OF BATTERY ANALYZED 12V Lead-Acid
MIN.TESTING VOLTAGE 8V
MAX.TESTING VOLTAGE
15V
RESOLUTION
0.1V
ACCURACY
± 0.1V
RANGE
200 –1 200EN
RESOLUTION 25EN
ACCURACY ± 25EN
CTEK BATTERY
ANALYZER
