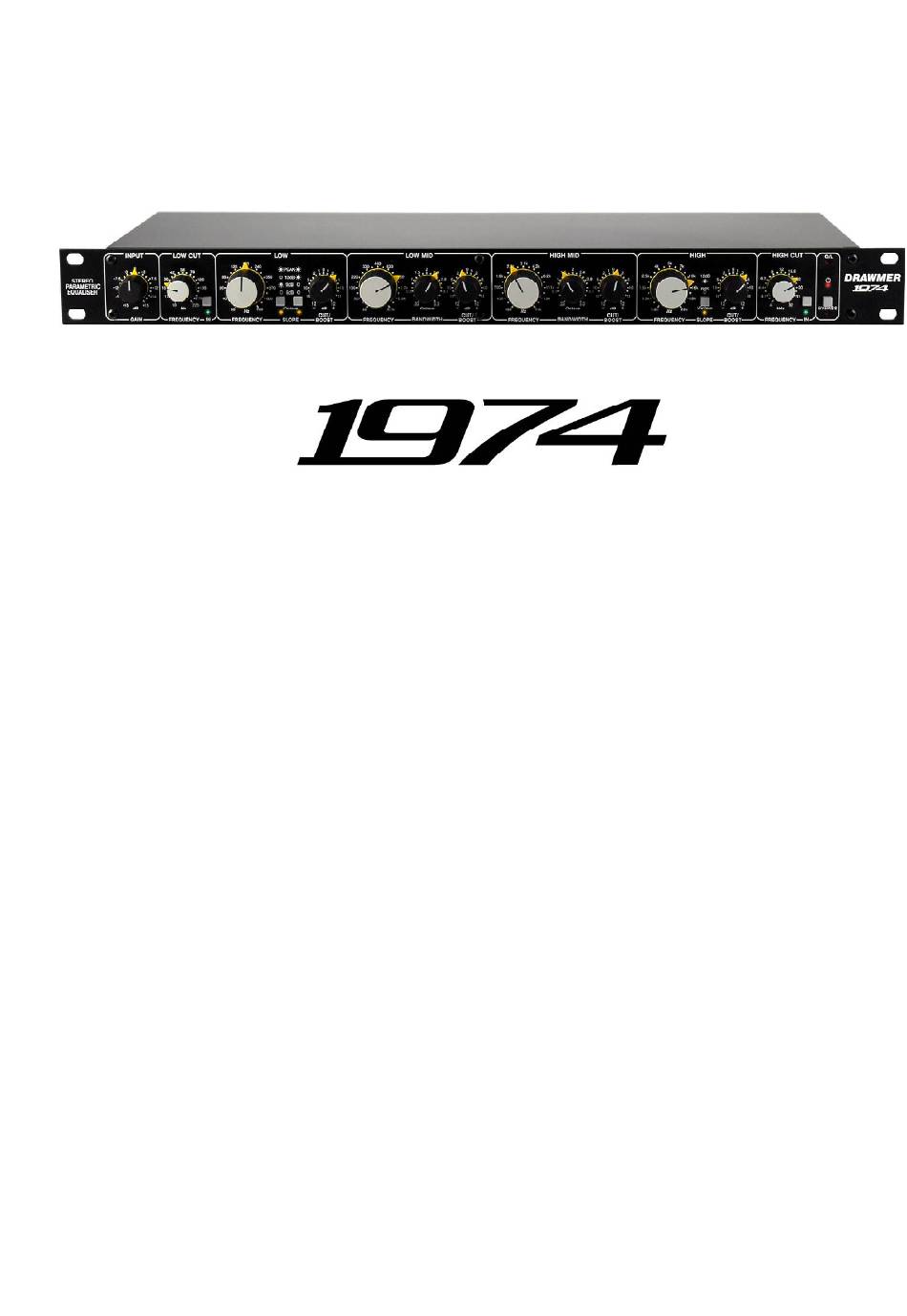

DRAWMER
STEREO PARAMETRIC EQUALISER
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Chapter 1 - Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Chapter 2 - Control Description
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
OPERATOR'S MANUAL
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1974 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Drawmer 1974

Summary of Contents for Drawmer 1974

  • Page 1: Table Of Contents

    ........... 12 Contacting Drawmer .
  • Page 2 DRAWMER 1974 O PERATOR’S ANUA...

  • Page 3: Warranty

    CHAPTER 1 COPYRIGHT This manual is copyrighted © 2019 by Drawmer Electronics Ltd. With all rights reserved. Under copyright laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, without the written permission of Drawmer Electronics Ltd.

  • Page 4: Introduction

    It also features a switchable slope allowing you to alter the focus at the high and low frequencies plus a low peak setting that magnifies the bottom end. The 1974 is perfect for tonal shaping, staying true to the sound of the 70s and ideal for any musician.
  • Page 5 Switchable Slope Setting. Very few analogue parametric equalisers have an adjustable slope on the low and high cut filters, and is yet another feature of the 1974 that allows you to take control of your audio. The filter slopes of the 1974 have been chosen for their musicality - allowing you to adjust the focus of the audio at the bottom and top ends of your recording but not so harsh as to be a very noticeable brick wall filter.

  • Page 6: Installation

    POWER CONNECTION The 1974 unit will be supplied with a power cable suitable for domestic power outlets in your country. For your own safety, it is important that you use this cable to connect to the mains supply earth. The cable must not be tampered with or modified.

  • Page 7: Audio Connections

    A typical setup for connecting the 1974 would be by the use of a Y-lead between the two input and output xlr’s on the rear of the 1974 and insert point for the respective channel of the desk or interface for the digital workstation - this would be repeated for both channels.

  • Page 8: Control Description

    CHAPTER 2 CONTROL DESCRIPTION The genuine stereo linked operation of the 1974 makes adjustment quick and extremely simple using just one set of controls to alter both channels. The 1974 uses precision potentiometers, each one being matched for left/right accuracy to within fine tolerances by our trained technicians, so that both channels operate identically, and also have 21 position indented operation, providing exceptional accuracy for fast and simple recall.
  • Page 9 EQ band. On the 1974 the width of the effected signal is measured as Bandwidth (as opposed to ‘Q’, which it is inversely related to) and on the Low-Mid and High-Mid bands are fully parametric (as opposed to semi, quasi or fixed that you may find on other eq’s) meaning that the bandwidths...

  • Page 10: Tips

    A great way to improve your audio so that instruments sit better in the mix is by removing any unnecessary frequencies using the Low Cut and High Cut filters. The 1974 is the perfect tool for this because it has fully variable low and high cut filters and also variable slope, allowing you to tune in to precise frequencies.
  • Page 11 The following diagram provides a general idea of some useful frequencies that will aid in setting the eq. They are by no means definitive and should be used as a guide only: DRAWMER 1974 O PERATOR’S ANUA...

  • Page 12: Chapter 3 - General Information

    For warranty service please call Drawmer Electronics Ltd. or their nearest authorised service facility, giving full details of the difficulty. A list of all main dealers can be found on the Drawmer webpages. On receipt of this information, service or shipping instructions will be forwarded to you.

  • Page 13: Block Diagram

    BLOCK DIAGRAM 1974 ver 01 A 25/04/19 DRAWMER 1974 O PERATOR’S ANUA...

  • Page 14: Session Recall

    DRAWMER 1974 O PERATOR’S ANUA...

Table of Contents
