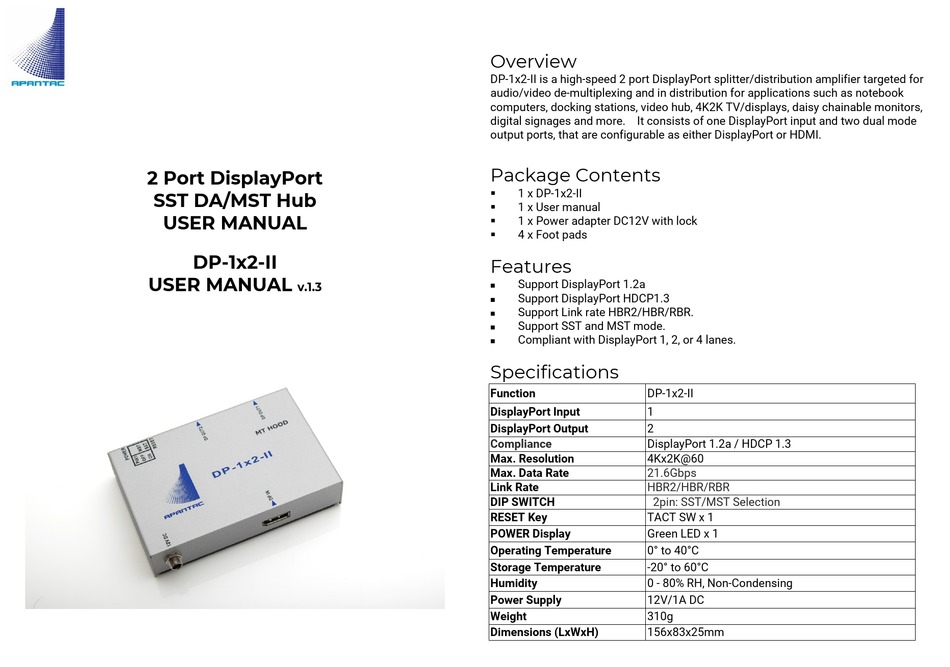

Apantac DP-1x2-II User Manual

2 Port DisplayPort
SST DA/MST Hub
USER MANUAL
DP-1x2-II
USER MANUAL
v.1.3
Overview
DP-1x2-II is a high-speed 2 port DisplayPort splitter/distribution amplifier targeted for
audio/video de-multiplexing and in distribution for applications such as notebook
computers, docking stations, video hub, 4K2K TV/displays, daisy chainable monitors,
digital signages and more. It consists of one DisplayPort input and two dual mode
output ports, that are configurable as either DisplayPort or HDMI.

Package Contents

1 x DP-1x2-II

1 x User manual

1 x Power adapter DC12V with lock

4 x Foot pads

Features
Support DisplayPort 1.2a

Support DisplayPort HDCP1.3

Support Link rate HBR2/HBR/RBR.

Support SST and MST mode.

Compliant with DisplayPort 1, 2, or 4 lanes.


Specifications

Function DP-1x2-II
DisplayPort Input 1
DisplayPort Output 2
Compliance DisplayPort 1.2a / HDCP 1.3
Max. Resolution 4Kx2K@60
Max. Data Rate 21.6Gbps
Link Rate HBR2/HBR/RBR
DIP SWITCH 2pin: SST/MST Selection
RESET Key TACT SW x 1
POWER Display Green LED x 1
Operating Temperature 0° to 40°C
Storage Temperature -20° to 60°C
Humidity 0 - 80% RH, Non-Condensing
Power Supply 12V/1A DC
Weight 310g
Dimensions (LxWxH) 156x83x25mm
