Summary of Contents for Schuhmann boris.

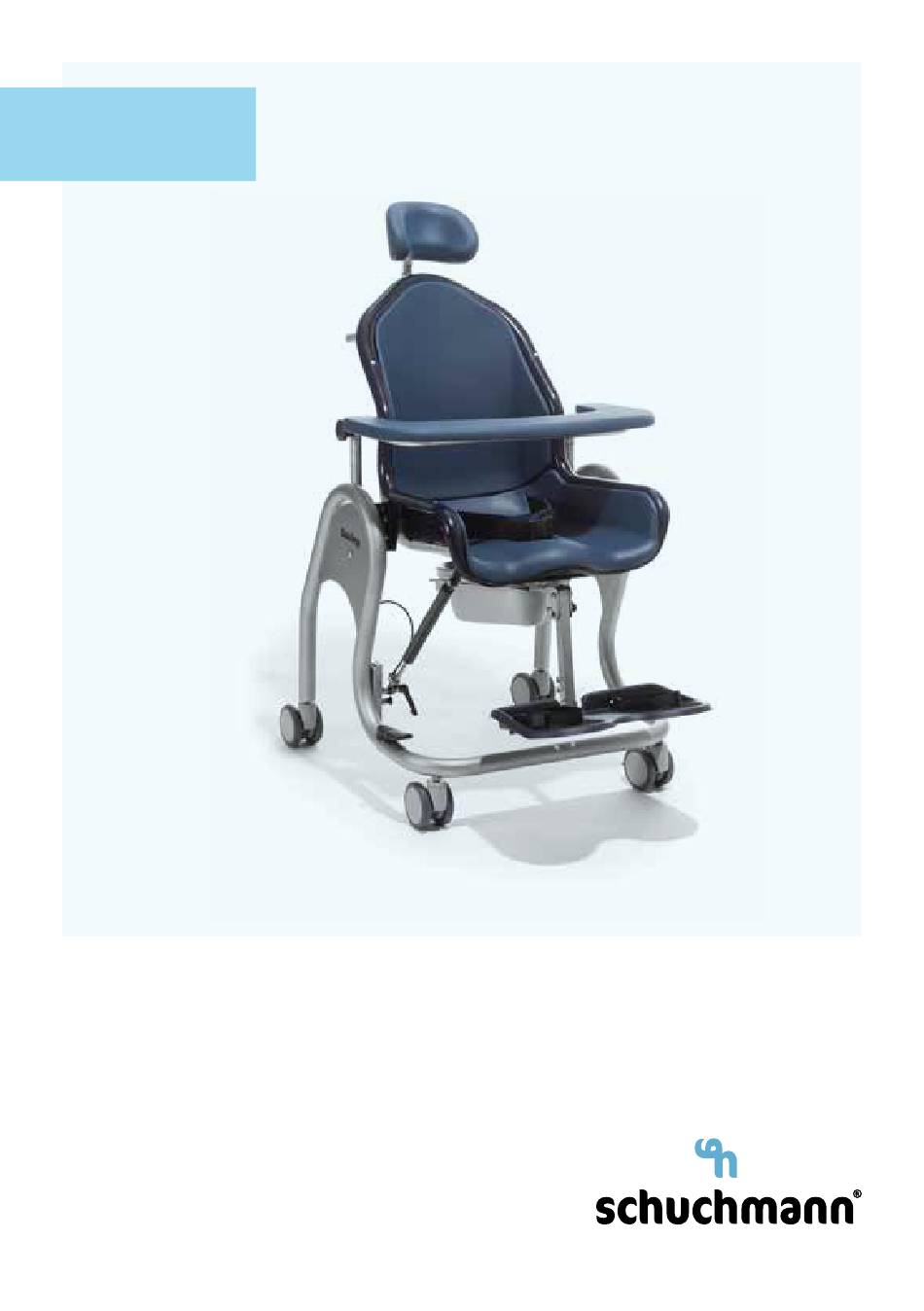

- Page 1 boris. Instructions for use. boris. The comfortable toilet and shower chair.
- Page 3 Our promise. Dear Customer, at this point we would like to thank you for placing your trust in our company and for purchasing our product. We ask you to read through the Instructions for use carefully prior to initial commissioning of the product, and to observe them. Please note that gui- delines and representations in these Instructions for use may deviate from your product due to differing equipment.
-
Page 5: Table Of Contents
Content. 1. Preparation..................06 1.1 Transport........................06 1.2 Safety measures prior to use ................06 1.3 Safe disposal ......................06 1.3.1 Packaging ....................06 1.3.2 Product ....................06 1.4 Where to keep the instructions for use ............. 06 2. Product description................07 2.1 General information .....................07 2.2 Handling / transport ...................07 2.3 Application areas, use according to the intended purpose ..07... -
Page 6: Preparation
1. Preparation. 1.1 Transport On receiving the product, please check it for completeness, lack of faults and check it for any transport damage. Inspect the goods in the presence of your forwarder Should transport damage have occurred, please cause an inventory (deter- mination of the faults) to be made in the presence of the forwarder. -
Page 7: Product Description
2. Product description. 2.1 General information The seat pan is made of a UV-resistant, deep-drawn PE plastic. All metal parts are produced from rustproof steel and in part are powder-coated. BORIS is a sturdy toilet and shower chair for at home and in facilities. Its ana- tomically-shaped seat pan gives children and teenagers special support. -
Page 8: Use Not In Accordance With The Intended Purpose / Warning Guidelines
2. Product description. 2.4 Use not in accordance with the intended purpose / warning guidelines • Correct usage of the product requires precise and careful training of the accompanying person. • The toilet and shower chair may only be used on stable and flat ground. • Please observe the „Technical data“ in these instructions for use for the maximum permitted patient weight. • The toilet and shower chair may not be used without supervision. • The toilet and shower chair may not be used to transport people. • During adjustment, the patient should not be able to touch the moving parts. • Only use accessories and spare parts made by Schuchmann, otherwise you will endanger the child. • Only use the toilet and shower chair if all components have been correctly mounted and adjusted. -
Page 9: Equipment For Basic Model
2. Product description. 2.5 Equipment for basic model • Anatomically-shaped seat pan made of PE, colour steel blue • Sub-frame made of stainless steel • Seat angle adjustment via gas pressure spring 200N • Mechanical height adjustment • 4 dual castors (100 mm) with locking devices 2.6 List of accessories • PU headrest • Toilet bucket • Fixation vest • PU insertion pad • Abduction wedge • Pelvic harness • Table • Footrest • Belt holder 2.7 Product overview The Fig. -
Page 10: Settings
3. Settings. Settings and adjustments to the product or accessories may only be made by people who have been given the necessary instruc- tions by a medical product advisor. Please ensure that none of the user‘s extremities are in the respective area when making adjust- ments of any kind to minimise the risk of injury. -
Page 11: Seat Height Adjustment
3. Einstellungen. 3.3 Seat height adjustment You can adjust the height of the seat pan in 2.5 cm steps. To do this, first loosen the two cap nuts (A) on the brackets between the pan and base frame on both sides. Now the height of the seat pan can be adjusted via the row of holes. -
Page 12: Headrest
4. Accessories. 4.2 Headrest The angle and height-adjustable headrest can be adapted to the res- pective patient. Height adjustment: To do this, loosen the screw (A) and adjust the height. Angle adjustment: To to this, loosen the screws (B) and the headrest can be adapted. - Page 13 4. Accessories. 4.4 Table with padded armrest, pivotable In order to pivot the table, for example to make getting in and out easier, the pull catch (A) is pulled and the table can be pivoted away around the bracket on the left-hand side of the pan frame, or removed completely.
-
Page 14: Pu Insertion Pad, Two-Part
4. Zubehör. 4.6 PU insertion pad, two-part For people sensitive to pressure, we offer a twopart insertion pad, which for example can easily be dismantled for cleaning purposes (with a mild detergent solution). To do this, the pad knobs (A) are removed from the holes in the seat pan by pressing the knobs (A) through the holes through the backrest and the pad is removed. -
Page 15: Repairs
5. Instandhalten und Reinigen. 5.2a Repairs Please carry out a daily visual inspection and check the toilet and shower chair regularly for cracks, breaks, missing parts and malfunctions. Observe the following notes: WAnn ZU BEACHTEn Actuate the brake and check the func- brake function, tion (see point 3.2). -
Page 16: Technical Data
6. Technical data. Dimensions - basic model Size 0 Size 1 Size 2 Size 3 Size 4 Seat width at front 31 cm 36 cm 41 cm 46 cm 51 cm Seat width at rear 26 cm 31 cm 36 cm 41 cm 46 cm Seat depth... -
Page 17: Guarantee
7. Guarantee. The two-year statutory guarantee period shall apply for all products. This guarantee period shall begin with the delivery or handover of the goods. Should a verifiable material or manufacturing fault occur within this time pe- riod, we shall, after carriage paid return to us, view the indicated damage and, if applicable, either repair or deliver a new product at our discretion. -
Page 18: Identifizierung
8. Identifizierung. 8.1 EC declaration of conformity Company ................. Schuchmann GmbH & Co.KG Dütestr. 3 D-49205 Hasbergen Tel.: +49 (0) 54 05 / 909 - 0 Fax: +49 (0) 54 05 / 909 - 109 declares on their sole responsibility that the product named below is classified as product class 1 boris. -
Page 19: Serial Number / Date Of Manufacture
8. Identifizierung. 19 19 8.2 Serial number / date of manufacture The serial number, the date of manufacture and other information can be found on the type plate, which is located on all of our products (A) (on the inside). Product name Part number Serial number... - Page 20 schuchmann.de...
