TimeLink TLR401 Manual

Fingerprint key
Table of Contents

Advertisement

Quick Links

TLR401 Administration
TLR401 FINGERPRINT KEY
Manual
Version 1.4
TIMELINK International GmbH
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TLR401 and is the answer not in the manual?

Questions and answers

Summary of Contents for TimeLink TLR401

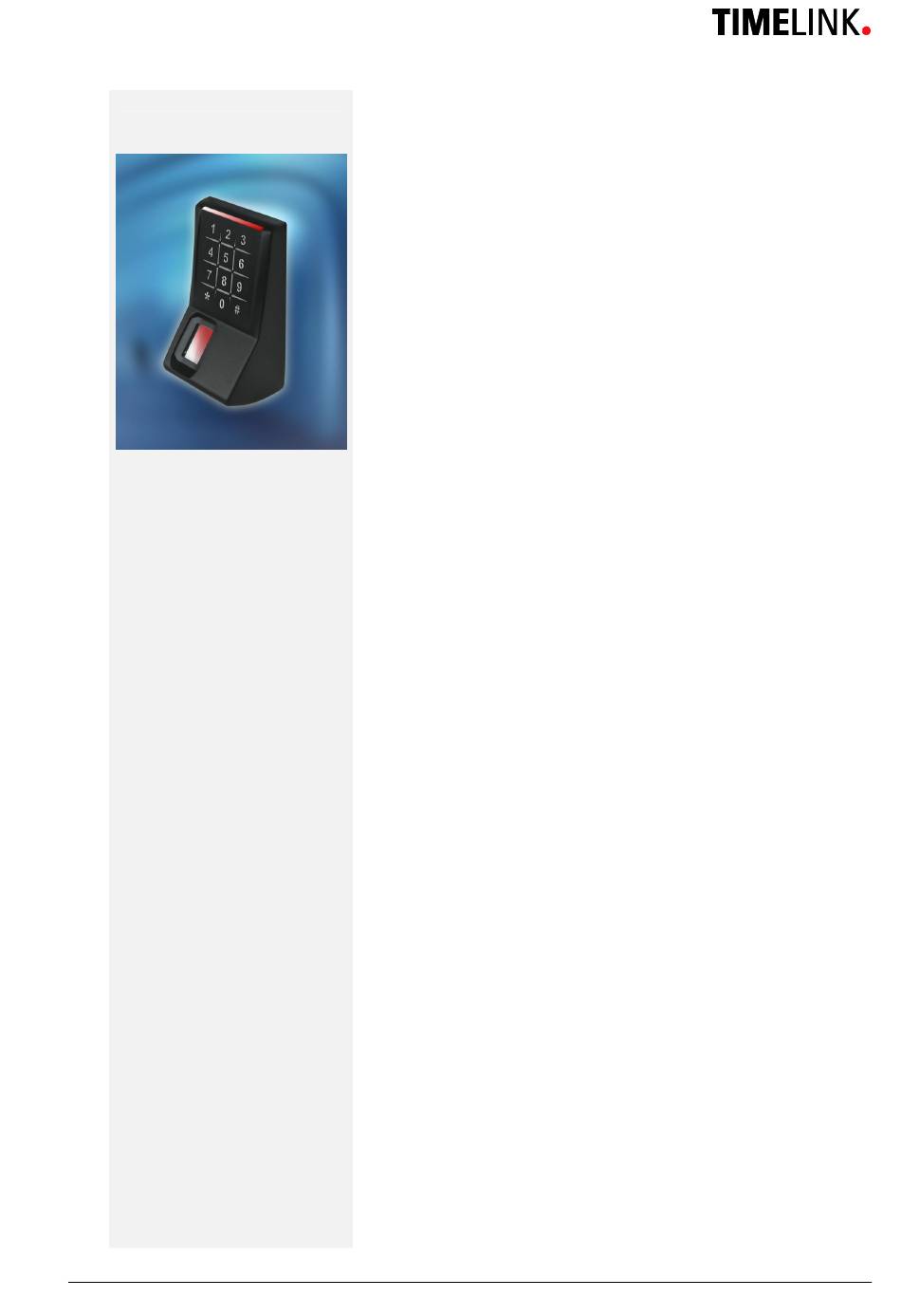

  • Page 1 TLR401 Administration TLR401 FINGERPRINT KEY Manual Version 1.4 TIMELINK International GmbH...
  • Page 2 TimeLink International does not accept any liability whatsoever for direct or indirect damage, especially loss of data, that results from the usage of the TLR401 terminal, or from the information in this Manual...
  • Page 3: Table Of Contents

    TLR401 Administration Content General Comments Symbols..................5 Device name................6 Intended Usage ................6 Protection Class................6 Safety Measures...............6 Before Commissioning..............6 Operation..................7 Installation and Service.............7 CE Conformance ..............7 Technical Data Mechanical Structure ..............8 Hardware Features ..............8 Biometric Sensor...............8 Visual and Audible Indicators............8 Connection................8 Interface..................8 Power Supply................9...
  • Page 4 Change the Admin Code............14 Enrollment................15 5.2.1 Enroll user................15 5.2.2 Write Template onto iCLASS Card (TLR401-iCLASS only)..16 Define the Number of Digits for the User ID (optional).....17 Enable Validation of the User ID (optional)......17 Delete Specific User(s) ............18 Delete Entire Database............18 Select iCLASS Mode (TLR401-iCLASS only)......19...
  • Page 5: General Comments

    1 General Comments Symbols The following symbols have been used in this manual: Helpful tips and special characteristics of the TLR401. Possible danger, which – if the warning is not observed – can Careful result in damage to property, or slight to moderate bodily injury.
  • Page 6: Device Name

    TLR401 Administration Device name This manual outlines the TLR401 and the supported functions. Intended Usage The device may only be used under conditions and for purposes for which it has been designed. (See Chapter Environment Conditions) Protection Class The device conforms to the conditions of protection class IP65.
  • Page 7: Operation

    TLR401 Administration Operation Do not subject the device to any mechanical stresses such as impacts, violent shaking or heavy loads. Impacts and shaking can damage the electronics. Installation and Service The device may only be opened by trained specialists. Disconnect the device from the power source before opening.
  • Page 8: Technical Data

    TLR401 Administration 2 Technical Data Mechanical Structure Plastic body + metal wall mount panel Resin sealed electronics 12 inch cable molded into body Hardware Features Fingerprint biometric sensor iCLASS- reader 12-key Keypad Beeper 4 red LEDs and 4 green LEDs...
  • Page 9: Power Supply

    TLR401 Administration Power Supply DC Voltage, 10...28V Minimum 1A and complying with Limited Power Source according to IEC/EN 60950-1 Power consumption max 5W Environment Conditions Temperature range 14° to 122º F Indoor and Outdoor Protection class IP65 Dimensions and Weight 4,5 in x 2,5 in x 2 in (H x W x D) Approx.
  • Page 10: Installation

    TLR401 Administration 3 Installation Installation Requirements For outdoor use, determine an appropriate place for mounting the TLR401. Avoid mounting in direct sunlight as this may affect the function of the biometric sensor. Direct sunlight may overheat the TLR401. Condition Check the following for mounting the TLR401 Device needs proper clearance.
  • Page 11: Operation

    TLR401 Administration 4 Operation View of the Control Elements LEDs green / red Reads iCLASS cards when held in front of 1-2-3-4 the keypad. Keypad Execute Button # Fingerprint Sensor Wall Mount Panel...
  • Page 12: Basics

    The 'Template on Card' mode allows you to write Templates onto iCLASS cards (currently 16k2 cards only). The TLR401 can either be run using the RS485 interface or the Wiegand output: RS485 Configuration Running the reader using the RS485 interface means that administration of the TLR401 is done on the NEXTOR Series access controller.
  • Page 13: User Operation

    Enter PIN => Green LEDs (Access granted) The TLR401-iCLASS reads fingers and iCLASS cards alternatively without having to switch between operating modes. If a mistype occurs on the keypad simply press the “#” three times to reset and start over.
  • Page 14: Wiegand Configuration - Administrator Functions

    Wiegand configuration, i.e. connecting the TLR401 to the access controller via Wiegand. Administration of the TLR401 with Wiegand is done on the reader. The Fingerprint Key user interface is comprised of the keypad, fingerprint reader and iCLASS reader as input devices and the LEDs and beeper as output devices.
  • Page 15: Enrollment

    TLR401 Administration Enrollment The TLR401 assigns 2 different fingers (e.g. left index finger, right index finger) to the unique User ID of a person. Each of the 2 fingers must be scanned 3 times by the Fingerprint Key reader. The biometric sensor reads fingers best when placing your finger on the sensor with some pressure.
  • Page 16: Write Template Onto Iclass Card (Tlr401-Iclass Only)

    At this point 'Template on Card' only works with 16K2 iCLASS cards and in a Wiegand configuration. The TLR401-iCLASS will store the fingers of a new user onto iCLASS cards when entering the following on the keypad: Admin Mode...
  • Page 17: Define The Number Of Digits For The User Id (Optional)

    TLR401 Administration Define the Number of Digits for the User ID (optional) Here the length of the User IDs (Default = 5 digits) can be set to a value between 2 and 9 digits. In the process of enrollment User IDs need to be entered as a personal and unique ID.
  • Page 18: Delete Specific User(S)

    TLR401 Administration Delete Specific User(s) This function allows you to remove a single user (User ID with its fingerprints) or several users of your choice from memory. Admin Mode # 99 # Green 1+2 Default Admin Code 1234 or enter your Admin Code...
  • Page 19: Select Iclass Mode (Tlr401-Iclass Only)

    TLR401 Administration Select iCLASS Mode (TLR401-iCLASS only) In its default setting the iCLASS mode is activated on TLR401-iCLASS readers. This mode reads fingerprints and iCLASS cards alternatively. This menu allows you to disable the iCLASS module or to enable the 'Template on Card' mode instead (cp.
  • Page 20: Define Facility Code

    TLR401 Administration Define Facility Code These settings only apply to the trigger signal of the reader's biometric sensor sent to the access controller. The Facility Code of iCLASS cards is sent to the access controller untouched and independent of these settings.
  • Page 21: Reset - Manually Switch To Wiegand Mode

    TLR401 Administration 5.10 Reset - Manually switch to Wiegand mode This function allows you to reset the TLR401 to its factory defaults. All settings like the changed Admin Code, the enabled Validation of the User ID will be affected. Users however will remain untouched.
  • Page 22: Rs485 Configuration With Nextor Series Access Controller

    The TLR401 is controlled by the NEXTOR Series access controller. Administrator functions are carried out on the access controller. For security reasons the identification of the templates is processed by the TLR401. Templates are managed by the NEXTOR Series access control system and can be distributed to the connected TLR401 readers.
  • Page 23: Maintenance

    Caution power supply before opening and before connecting cables. Customer Service First Response Contact the TimeLink hotline in the event of any device error. identify defects and causes Have the following ready before placing your call: Serial number of the TLR401...
  • Page 24: Datasheet

    TLR401 Administration 8 Datasheet Credentials iCLASS card reading Template on card Biometric (fingerprint) PIN Code Host Interface RS485 Wiegand Biometric Features: Search Modes 1 to 1 identification 1 to many verification Response/Reads Enrollment <= 1 sec Identification <= 1 sec Verification <= 0.8 sec...
  • Page 25: Appendix

    1 # Reset - Manually switch to Wiegand Mode 2 # Reset - Manually switch to RS485 Mode 12 # Enroll user 16 # Write Template onto iCLASS Card (TLR401-iCLASS only) 13 # Delete Specific User(s) 1357 # Delete Entire Database...
  • Page 26: Allocation Of The Cable

    TLR401 Administration Allocation of the Cable Connectors on the Door Unit Color Purpose RS485 Wiegand Shield Shield Yellow RS485A X38/X39 (3) Black of Yellow RS485B X38/X39 (2) DC in + 12...24V X36/X37 (+) X36/X37 (+) Black of Red DC in (–) X36/X37 (–)
  • Page 27: Wiring Requirements

    Example for calculating the power supply wiring: 1. AWG22 cable (0,34 mm Loop resistance ca 115 ohm / km TLR401 current with 12V = 0,2A Cable length 150m Voltage drop: 115 ohm / km * 0.15km * 0,2A = 3.45V...
  • Page 28 TLR401 Administration...
  • Page 29 TLR401 Administration...
