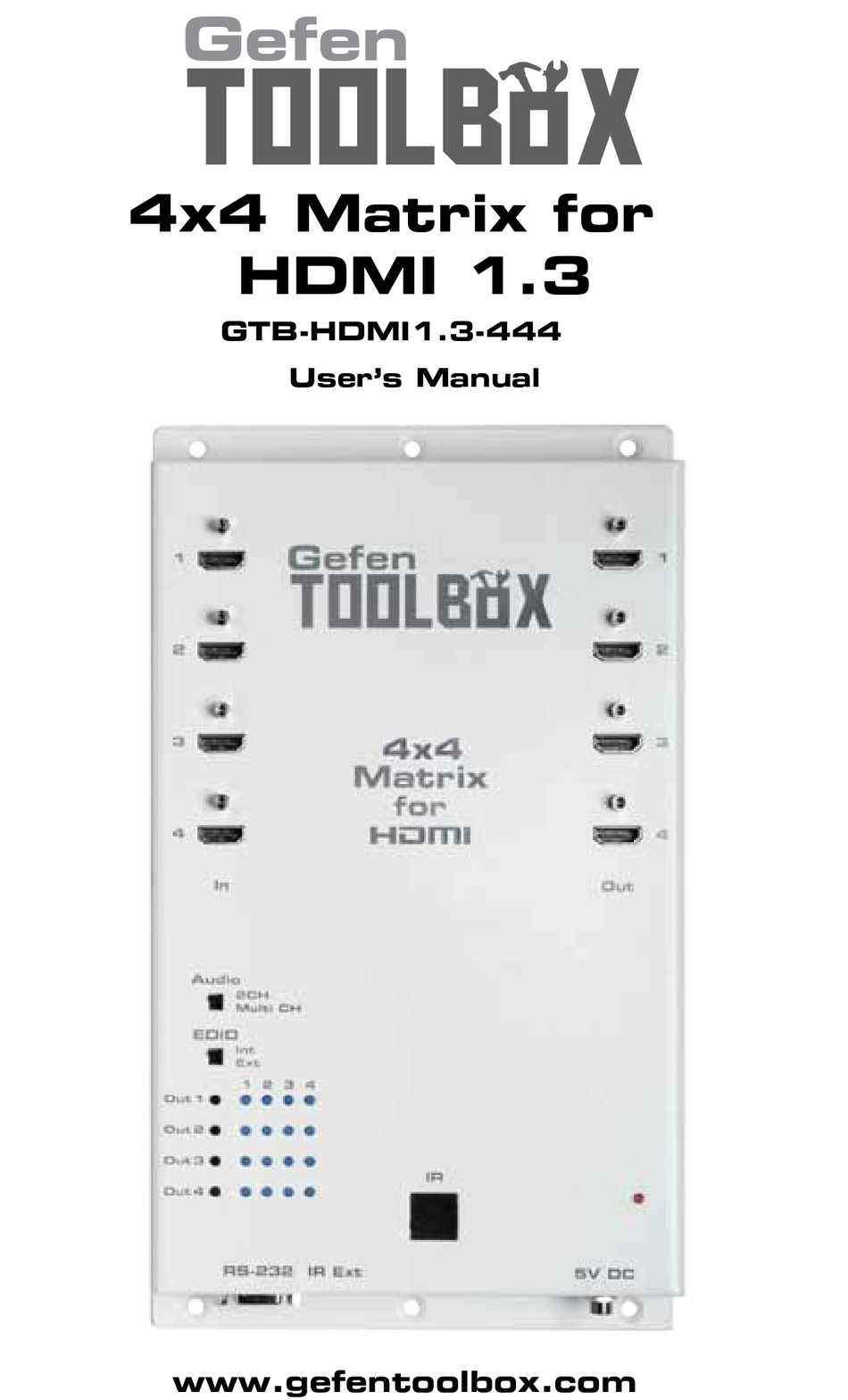

Gefen Mini 1:4 Splitter 4x4 Matrix for for HDMI HDMI 1.3 Gefen GTB-HDMI1.3-144 GTB-HDMI1.3-444 User Manual User’s Manual Mini 1:4 Splitter for HDMI GTB-HDMI1.3-144 User Manual www.gefentoolbox.com www.gefentoolbox.com...
INTRODUCTION Congratulations on your purchase of the Gefen ToolBox 4x4 Matrix for HDMI 1.3. Your complete satisfaction is very important to us. About Gefen We specialize in total integration for your home theater, while also focusing on going above and beyond customer expectations to ensure you get the most from your hardware.
14-17 for more details. • The Gefen ToolBox 4x4 Matrix for HDMI 1.3 detects the presence of Deep Color automatically and disables Deep Color EDID features across all outputs if any connected device or display is not capable of Deep Color.
• HDMI and HDCP compliant Package Includes (1) Gefen ToolBox 4x4 Matrix for HDMI 1.3 (8) 6-foot Locking HDMI Cables (4 for inputs, 4 for outputs) (M-M) (1) 5V DC Locking Power Supply (1) Discrete IR remote control...
PANEL DESCRIPTIONS HDMI Input Ports 1-4 Connect HDMI-compliant source device(s) to any of these input ports. HDMI Output Ports 1-4 Connect HDMI-compliant display device(s) to any of these output ports. Audio Channel Selection Switch This switch will modify the EDID to specify the number of supported audio channels when using the INTERNAL EDID mode. This setting will not affect the EDID information when using the EXTERNAL EDID mode.
CONNECTING AND OPERATING THE GEFEN TOOLBOx 4x4 MATRIx FOR HDMI 1.3 How to Connect the 4x4 Matrix for HDMI 1.3 Use one of the provided HDMI cables to connect the source device to the HDMI input port of the 4x4 Matrix for HDMI 1.3.
Page 11
CONNECTING AND OPERATING THE GEFEN TOOLBOx 4x4 MATRIx FOR HDMI 1.3 Once the LED under column 2 is enabled, a picture will be displayed on the display connected to Out 3 on the matrix. Note that in Fig 1.1, Out 1, Out 2, and Out 4 have also been routed. In this case, the displays connected to HDMI Out 1, HDMI Out 2, and HDMI Out 3 are receiving video from the source connected to HDMI In 1.
RMT-16IR REMOTE DESCRIPTION LED Button Press Indicator This LED will activate momentarily upon each button press. This visual indicator indicator is to inform the user that a command has been sent by the I/R remote control. Display and Source Selection Buttons These buttons will be used to send display and source selections to the 4x4 Matrix for HDMI 1.3.
Page 13
RMT-16IR REMOTE DESCRIPTION The RMT-16IR remote control will allow the user to select which source will be routed to which output. Each of the two (2) outputs are assigned a group of four buttons which correspond to the four source inputs. Please use the information below when selecting the desired source for each display.
RMT-16IR REMOTE INSTALLATION Installing the RMT-16IR Battery To use the RMT-16IR remote, remove the battery cover on the back of the remote to reveal the battery compartment. Insert the included battery into the open battery slot. The positive (+) side should be facing up. Ensure that both DIP (Dual In-line Package) switches are in the OFF position.
RMT-16IR REMOTE CONFIGURATION Resolving I/R Code Conflicts In the event that IR commands from other remote controls conflict with the supplied RMT-16IR remote control, changing the remote channel will alleviate this issue. The RMT-16IR remote control has a bank of DIP (Dual Inline Package) switches for setting the remote IR channel.
CHANGING THE I/R CHANNEL How To Change The I/R Channel Use the following procedure to set the proper I/R channel on the Matrix. Press and hold the Out 1 button for 5 seconds to enter I/R channel selection mode. The bank of blue LED indicators will now display the currently selected I/R channel.
I/R ExTENDER INSTALLATION Using The I/R Extender An optional I/R Extender (Gefen Part No. EXT-RMT-EXTIR) can be used to extend the I/R capabilities of the 4x4 Matrix for HDMI 1.3. One such application allows the Matrix to be hidden within or behind a cabinet (see illustration below). Simply connect the I/R extender to the I/R extender port (see page 4).
Why is EDID so important with the 4x4 Matrix for HDMI 1.3? The Gefen ToolBox 4x4 Matrix for HDMI 1.3 uses complex technology that routes multiple input signals to multiple outputs. The source devices will require EDID to read. Multiple devices/displays can be connected to the input and output ports on the Matrix, each with their own EDID.
EDID MANAGEMENT EDID Mode Selection • ExTERNAL MODE: To use this mode, set the EDID Mode Switch on the front panel to the ExT position. In External EDID mode, the Matrix retrieves EDID data directly from each connected A/V display device. The EDID data is then compiled and a new EDID is created based on the highest-supported video resolution and audio capabilities common to all displays.
EDID MANAGEMENT Audio Channel Selection The 4x4 Matrix for HDMI 1.3 features a switch that will modify the supported audio formats listed in the pre-programmed EDID. This feature is useful for limiting the output of the source device to either 2 or multi-channel audio formats. NOTE: This selector switch will only affect the pre-programmed EDID in the INTERNAL (INT) EDID Mode.
RS-232 SERIAL CONTROL INTERFACE This feature allows for easy integration into automated systems capable of transmitting RS-232 commands. Please use the settings below to configure the RS-232 port of the user’s system. Transmitting the appropriate numeric ASCII character will simulate key-presses on the EXT-RMT-16IR remote control.
WALL MOUNTING INSTRUCTIONS The Gefen Toolbox 4x4 Matrix for HDMI 1.3 should be mounted vertically in a wall or cabinet with wood/drywall screws as shown in the diagram above. There should be an inch or two of clearance between the edges of the unit and any walls or vertical surfaces to allow for enough clearance for insertion and retraction of cables at the HDMI connectors.
SPECIFICATIONS Video Bandwidth ..................225 MHz Pixel Clock / Speed .................. 165 MHz Maximum Video Resolution ......1080p@60Hz, 1920x1200@60Hz with 12-bit Deep Color Input Video Signal ................1.2 volts p-p Input DDC Signal ................. 5 volts p-p (TTL) HDMI Connector ........type A 19 pin female; (4) input, (4) output LED Indicators (source mapping)..............16 (blue) LED Indicator (power)..................1 (red) RS-232 Interface................
WARRANTy Gefen warrants the equipment it manufactures to be free from defects in material and workmanship. If equipment fails because of such defects and Gefen is notifi ed within two (2) years from the date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the equipment has not been subjected to mechanical, electrical, or other abuse or modifi cations.
