DentalEZ RAMVAC WC-110 Installation Instructions

Master Water Control Valve, (24V AC)
WC - 110 (1/2" pipe); WC - 210/230 (3/4" pipe); WC - 300 (1" pipe)
The RAMVAC® master water control valve makes it easy to shut off the water supply to the suite and safe-
guard against leaks from any equipment. Simply fl ip the switch to "OFF" when closing down for the night.
The master water control valve can be wired to any standard 24V AC control signal from a compressor/vac-
uum pump or with a separately supplied switch using the 24V AC transformer provided. For use on new or
existing installations, the valve is available in 1/2", 3/4", and 1" diameter outlet pipe sizes.
Master Water Control System not designed for use in water with high mineral content. If high mineral water content is
®
present, DentalEZ recommends a water softening treatment to prolong life of product.
Specifi cations
Model WC-110 WC-210
Pipe size 1/2"
Height 21"
Width 15-½"
CAUTION
®
All RAMVAC water control products must be
installed by a certifi ed plumber. Installation must be in
accordance to local plumbing codes.
• The master water control valve should be
connected to the main water supply for the
suite (Pic 1).
• The valve solenoid should be wired to a
24V AC switch.
• Both the inlet and outlet valves should be
opened and the bypass valve should be
closed.
• When the power is switched on, water will be
supplied to the suite.
• When power is switched off , the water supply
is shut off .
March, 2019
WC-230 WC-300
3/4" 3/4" 1"
23" 28" 24"
17-½" 23-½" 23-½"
NOTICE
Replacement Part Numbers
Model
Assembly
Outlet
Valve
Bypass
Valve

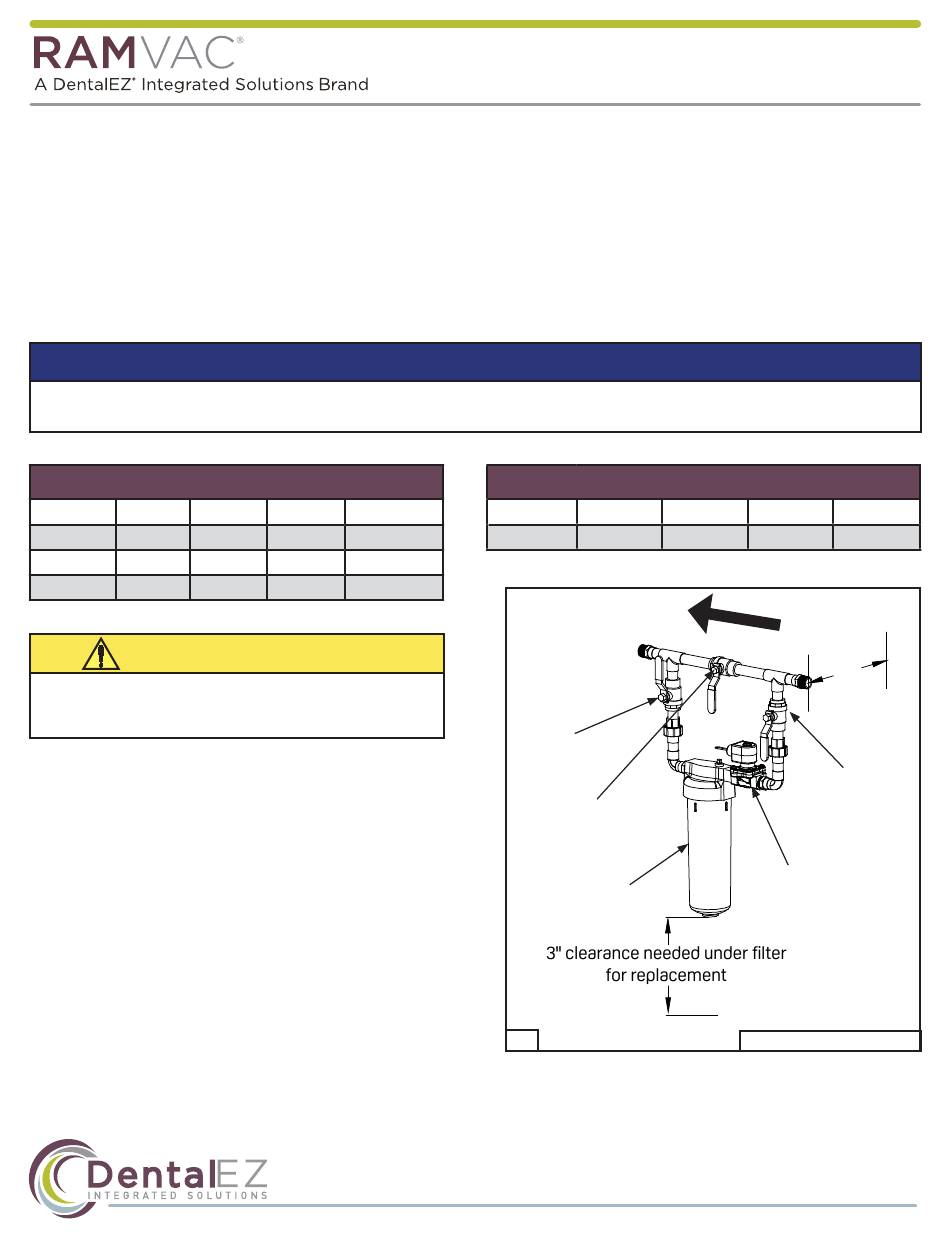

Pic 1
www.DentalEZ.com
Page 1 of 4
INSTALLATION
INSTRUCTIONS
WC-110 WC-210 WC-230
64622123 64622124 64622125
Flow
Solenoid Valve
Water
Filter
WC-110, WC-210 & WC-230
866-DTE-INFO (opt 4)
PN: 64710077E_MK
WC-300
64622134
3"
min
Inlet Valve
