Section 2 - OPERATING INSTRUCTIONS

This machine has seven different cutting height

positions. IMPORTANT: When positioning the

cutting deck into a higher cutting position, pull up on

the deck lift handle only, it is not necessary to pull

up on the release lever at the same time. Use the

release lever when moving deck cutting height to a

lower cutting position.

1. Grasp both handles together to disengage

latch.

2. Raise or lower handles to desired height.

3. Release lower handle to engage latch. See

Figure 2.9.

DECK LIFT

HANDLE

RELEASE

LEVER

CONNECTING BAR OMITTED IN THIS

VIEW FOR CLARITY

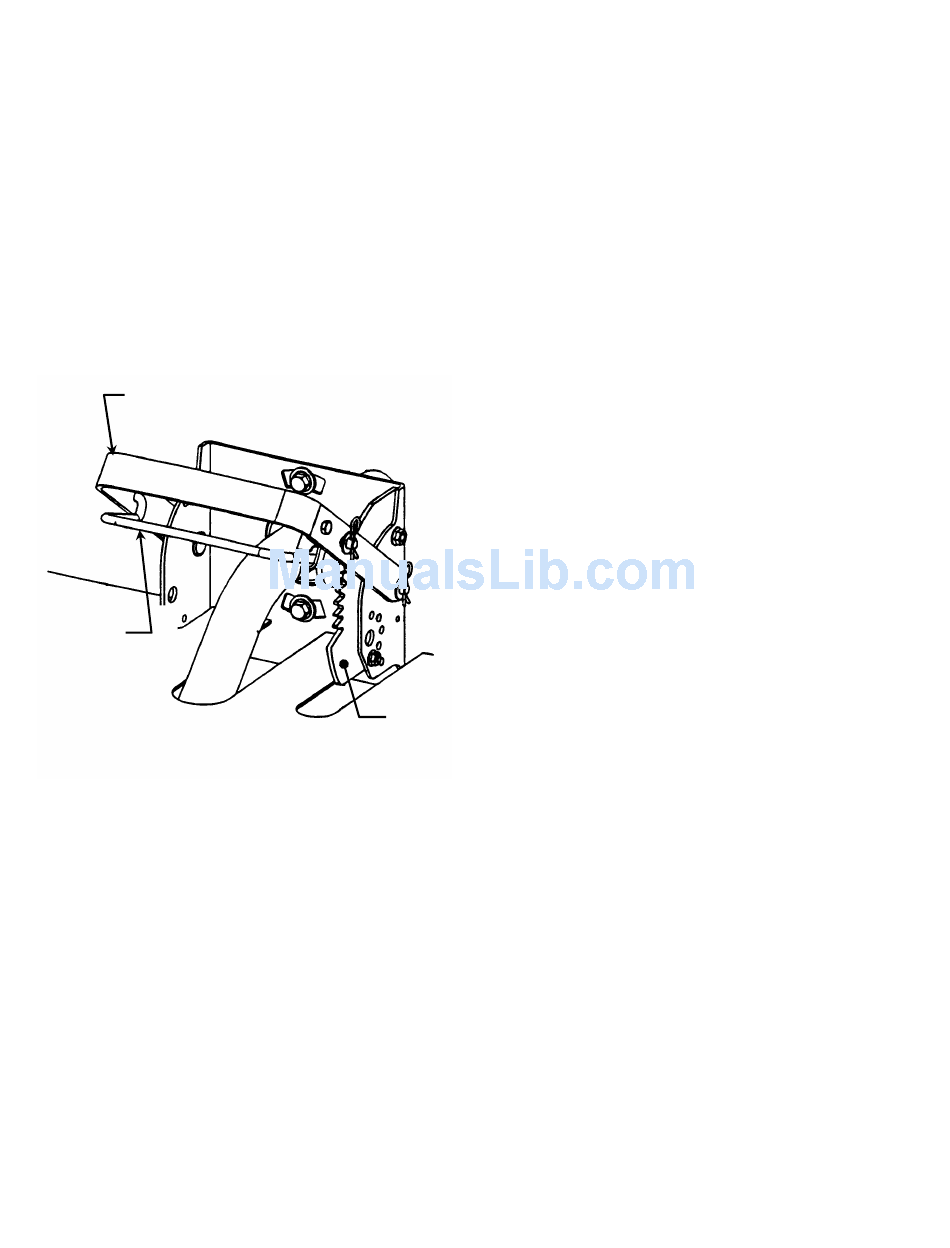

FIGURE 2.9

DECK LIFT HANDLE SHOWN

IN HIGHEST NOTCH.

DETENT

PLATE
