USER MANUAL FOR FMUER GP100 ANTENNA
Step1: Check the package.

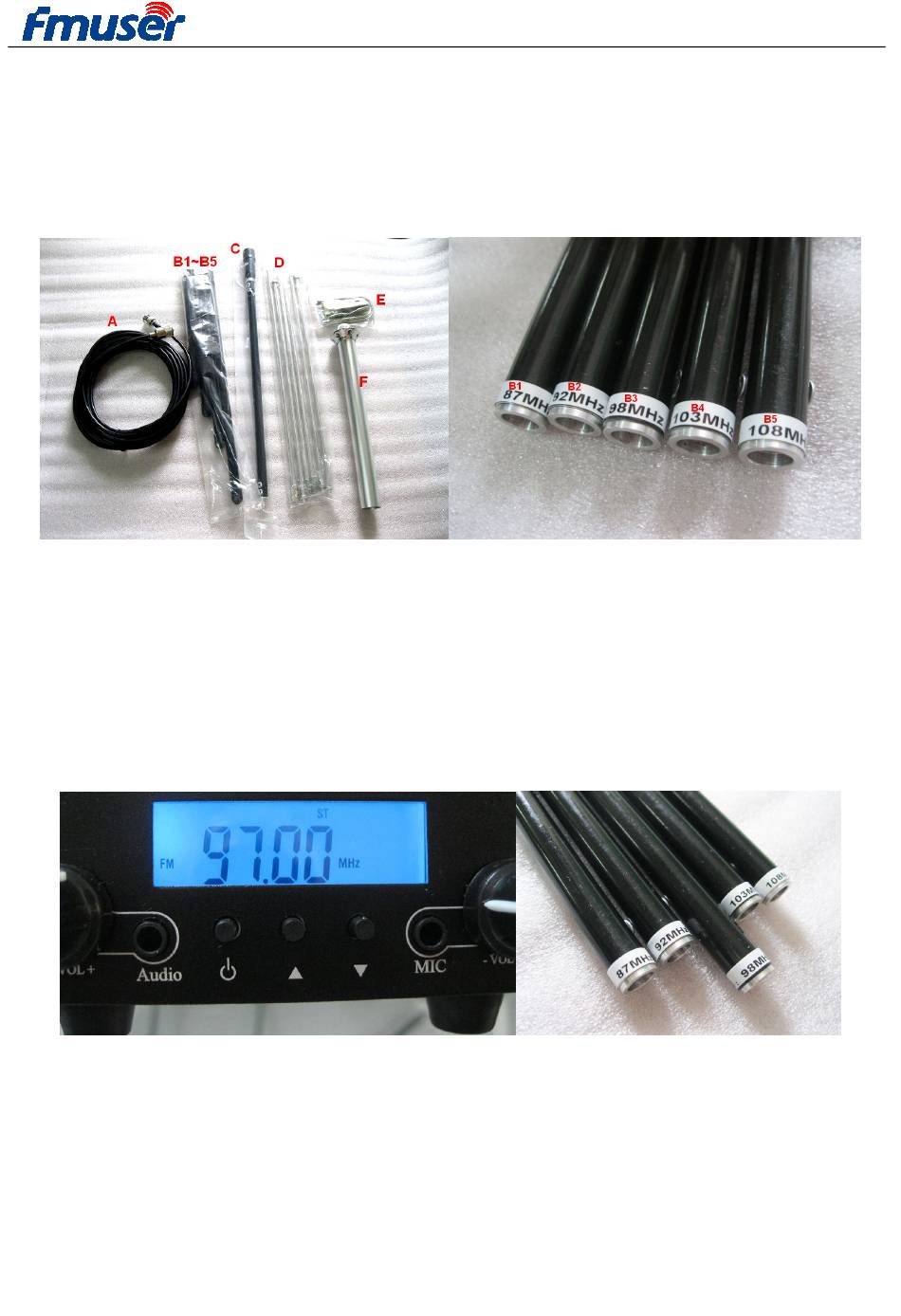

After you have received the antenna package, check and make sure the following items are included:
Step2: Choose the frequency:
There are five antenna elements with center frequencies labeled on them. Each element is applicable for frequency of
+/-2.5mhz from the center frequency.
For example, the antenna element labeled with 98mhz is applicable for 95.5-100.5mhz, the one labeled with 103mhz is
applicable for 100.5-105.5mhz, etc.
If the transmitter will be using 97mhz, you should choose the element labeled with 98mhz:
Step3: Connect the frequency element(pick one from B1-B5) to the main rod(C), check the picture below:
1 / 4
