Summary of Contents for Ryobi LDM-60

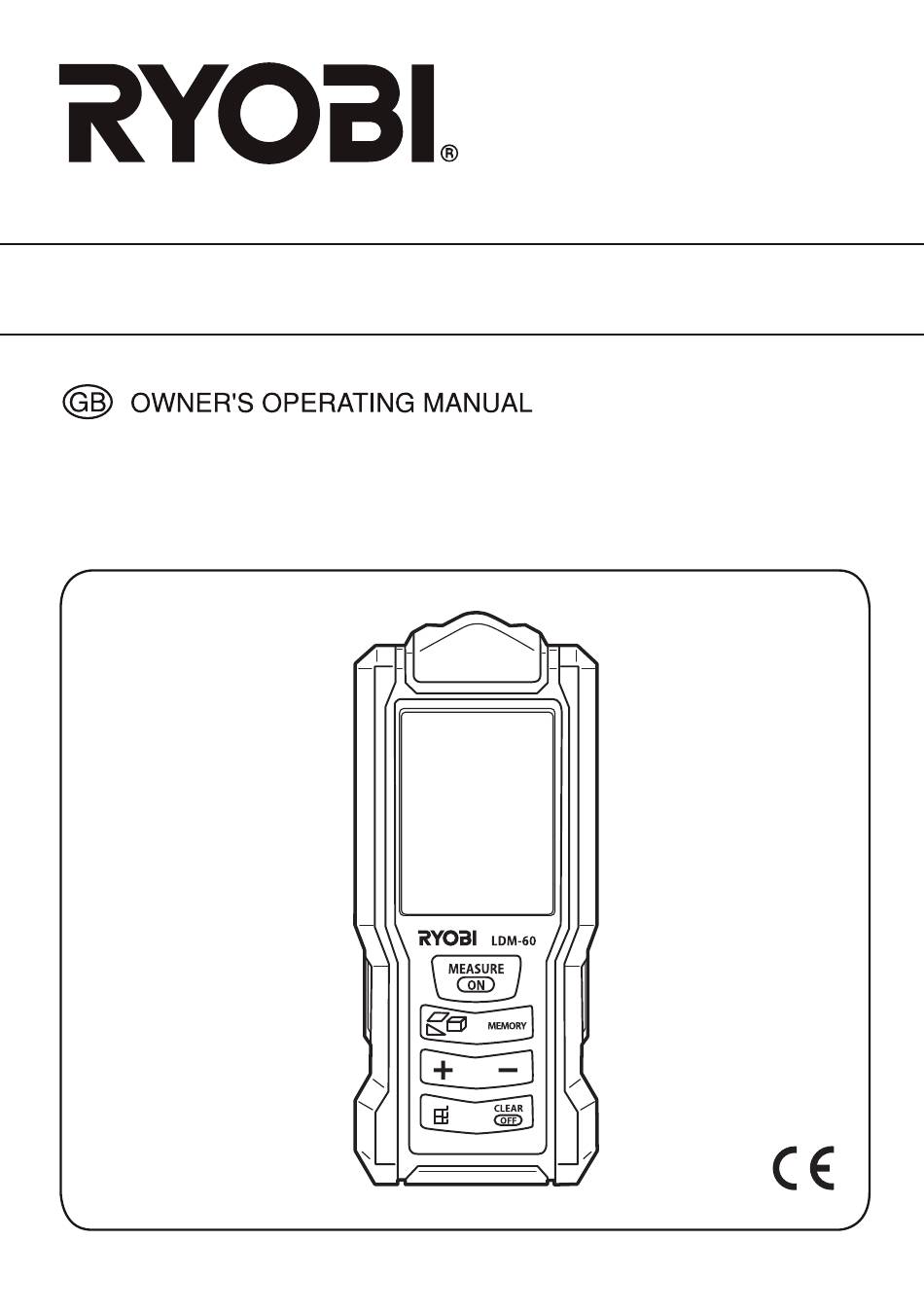

- Page 1 LDM-60...
- Page 3 Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6...
- Page 4 Fig. 7 Fig. 8 Fig. 9 Fig. 10 Fig. 11 Fig. 12...
-
Page 5: Lcd Display
THANK YOU FOR BUYING A RYOBI PRODUCT. DESCRIPTION To ensure your safety and satisfaction, carefully read through 1. Measuring/On button this OWNER’S MANUAL before using the product. 2. Function button 3. Memory storage read button General Safety Rules 4. Add button “+”... -
Page 6: Operation
Always replace all batteries at the same time. Do not use When no measurement has taken place approx. 30 seconds different brands or types of batteries together. after sighting, the laser beam is switched off automatically to save the batteries. Remove the batteries/rechargeable batteries from the measuring tool when not using it for longer periods. -
Page 7: Measurement Unit Selection
INDIRECT LENGTH MEASUREMENT DELETING MEMORY The indirect length measurement is used to measure distances To delete the memory contents, firstly indicate by pressing the that cannot be measured directly because an obstacle would memory storage read button, and then press off and memory obstruct the laser beam or no target surface is available as a delete button. -
Page 8: Error Code
ERROR CODE Message code Possible Cause Remedy Err10 Battery too low Change batteries Err15 Out of range Measure target within the range Err16 Received signal Use light color target; too weak Hold Quick Measure more steady Err18 Background Use dark colored brightness target too high... - Page 9 - NOTE - - 8 -...
- Page 10 - NOTE - - 9 -...
- Page 11 - NOTE - -10 -...
